CG-NPT Series

Catalog

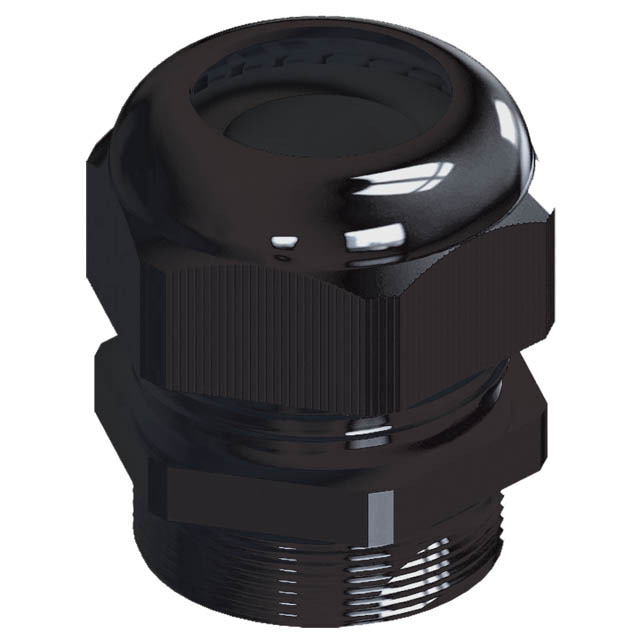

CABLE GLAND, 1" NPT, 12 MM, 20 MM, NYLON 6 (POLYAMIDE 6), BLACK, IP68

Part	Thread Size	Color	Panel Hole Size	Panel Hole Size	Ingress Protection	Type	Thread Length	Thread Length	Operating Temperature [Min]	Operating Temperature [Max]	Material	Includes	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Size	Outside Cable Diameter (Max)	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]
Essentra Components CG-NPT-1-1-BK	1" NPT	Black	1.35 "	34.3 mm	IP68 - Dust Tight Waterproof	Cable Gland	0.709 in	18.01 mm	-20 ░C	100 °C	Polyamide (PA) Nylon	O-Ring Sealing Gland Sealing Nut	0.787 in	20 mm	0.472 in	12 mm
Essentra Components CG-NPT-3/4-2-BK		Black	1.067 in	27.1 mm	IP68 - Dust Tight Waterproof	Cable Gland	0.591 in	15 mm	-20 ░C	100 °C	Polyamide (PA) Nylon	Sealing Gland Sealing Nut			0.551 in	14 mm	18.01 mm	0.709 in	0.75 "
Essentra Components CG-NPT-3/4-1-BK		Black	1.067 in	27.1 mm	IP68 - Dust Tight Waterproof	Cable Gland	0.591 in	15 mm	-20 ░C	100 °C	Polyamide (PA) Nylon	Sealing Gland Sealing Nut	0.63 in						0.75 "	16 mm	0.354 in	9 mm
Essentra Components CG-NPT-1/2-1-BK		Black	0.875 in	0.875 in	IP68 - Dust Tight Waterproof	Cable Gland	0.571 in	14.5 mm	-20 ░C	100 °C	Polyamide (PA) Nylon	Sealing Gland Sealing Nut	0.354 in						0.5	9 mm	0.197 in	5 mm
