M300-FV3 Series
Manufacturer: Harwin Inc.
Beta
⌘K

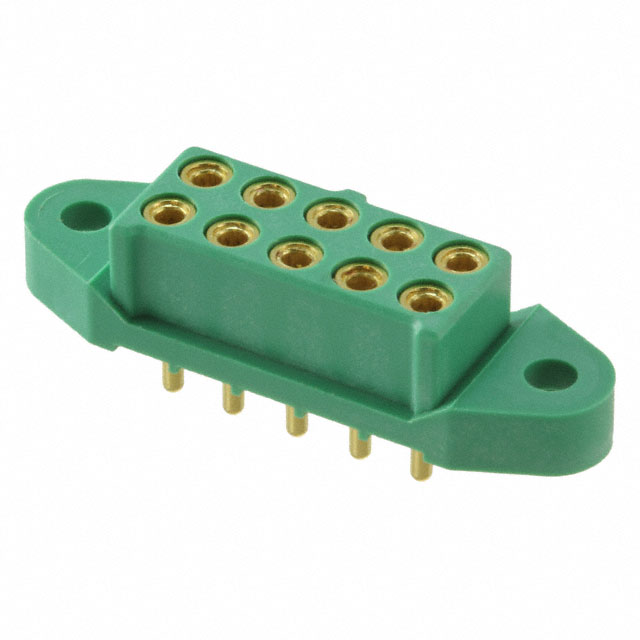

CONNECTOR, RCPT, 10POS, 3ROW, 3MM ROHS COMPLIANT: YES
| Part | Contact Material | Applications | Contact Shape | Insulation Material | Voltage Rating | Number of Positions | Features | Style | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Mated Stacking Heights | Material Flammability Rating | Contact Length - Post [x] | Contact Length - Post [x] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Pitch - Mating | Pitch - Mating | Number of Rows [custom] | Termination | Number of Positions Loaded | Insulation Height | Insulation Height | Mounting Type | Row Spacing - Mating | Row Spacing - Mating | Connector Type | Contact Finish - Mating | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Beryllium Copper | Automotive General Purpose Telecommunications | Circular | Glass Filled Nylon 4/6 Polyamide (PA46) | 600 V | 10 | Mating Flange | Board to Board Cable | -65 ░C | 175 °C | Green | 8.9 mm | UL94 V-0 | 0.126 " | 3.2 mm | 0.25 µm | 10 µin | 3 mm | 0.118 in | 2 | Solder | All | 0.256 in | 6.5 mm | Through Hole | 0.118 in | 3 mm | Receptacle | Gold | Female Socket Power |
