RZB92 Series

Catalog

CONN PCI CARDEDGE FML 184P 0.050

Part	Material - Insulation	Contact Finish	Features	Contact Type	Pitch	Pitch	Color	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Read Out	Mounting Type	Number of Positions	Gender	Termination	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Card Thickness	Card Thickness	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Card Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]

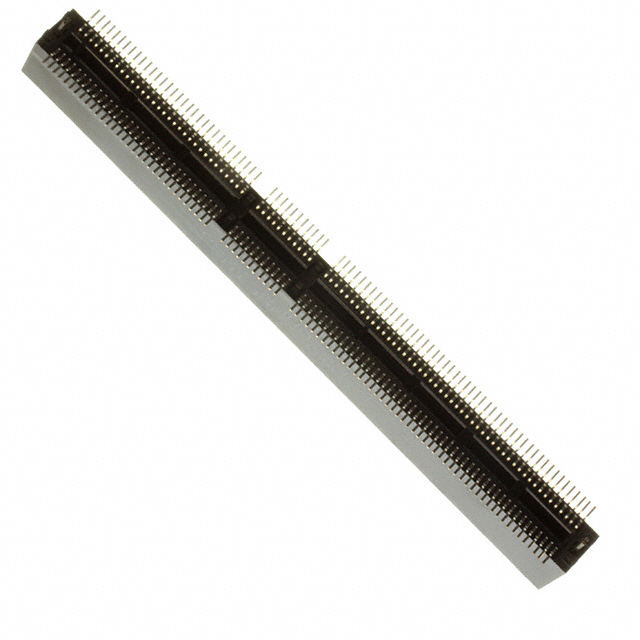

Sullins Connector Solutions RZB92DHFR-S250	Polyphenylene Sulfide (PPS)	Gold	Board Lock	Hairpin Bellows	0.05 in	1.27 mm	Black	0.25 Ám	10 Áin	2	Dual	Surface Mount	184	Female	Solder	32	11	49	1.57 mm	0.062 in	Phosphor Bronze	-65 ░C	125 °C	PCI 5V 64 Bit	5 V 64 Bit

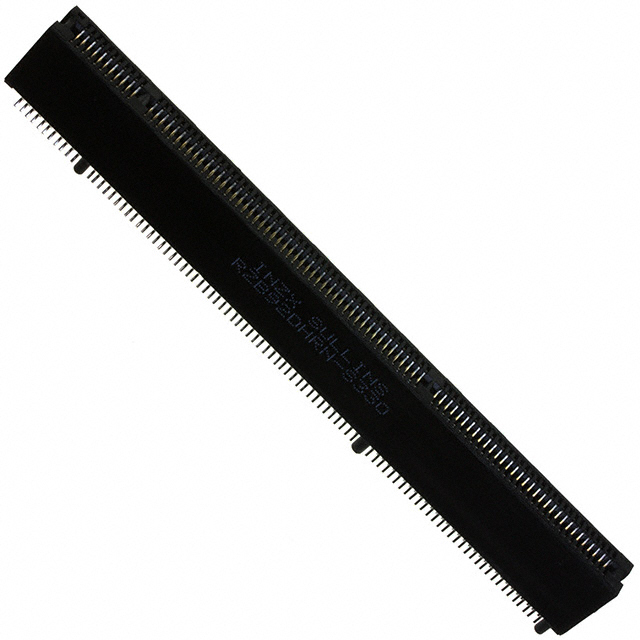

Sullins Connector Solutions RZB92DHRN-S330	Polyphenylene Sulfide (PPS)	Gold	Board Guide Card Extender	Hairpin Bellows	0.05 in	1.27 mm	Black	0.25 Ám	10 Áin	2	Dual	Board Edge Straddle Mount	184	Female	Solder	32	49	11	1.57 mm	0.062 in	Phosphor Bronze	-65 ░C	125 °C

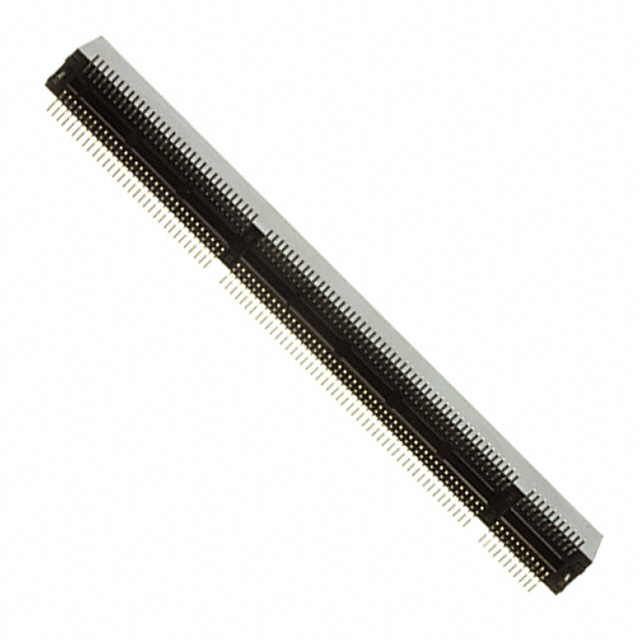

Sullins Connector Solutions RZB92DHFR-S329	Polyphenylene Sulfide (PPS)	Gold	Board Lock	Hairpin Bellows	0.05 in	1.27 mm	Black	0.25 Ám	10 Áin	2	Dual	Surface Mount	184	Female	Solder	32	49	11	1.57 mm	0.062 in	Phosphor Bronze	-65 ░C	125 °C

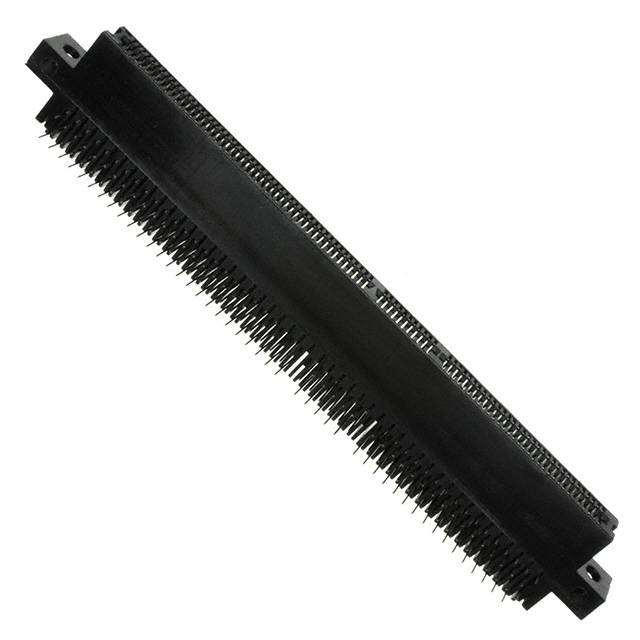

Sullins Connector Solutions RZB92DHAS-S250	Polyphenylene Sulfide (PPS)	Gold		Hairpin Bellows	0.05 in	1.27 mm	Black	0.25 Ám	10 Áin	2	Dual	Right Angle Through Hole	184	Female	Solder Staggered	32	11	49	1.57 mm	0.062 in	Phosphor Bronze	-65 ░C	125 °C	PCI 5V 64 Bit	5 V 64 Bit	0.125 "	Side Mount Opening Unthreaded	3.18 mm
