002620 Series

Headers & Wire Housings KK 3.96MM HDR 09P VT AU

Manufacturer: Molex

Catalog

Headers & Wire Housings KK 3.96MM HDR 09P VT AU

Catalog

Headers & Wire Housings KK 3.96MM HDR 09P VT AU

Part	Applications	Connector Type	Number of Positions Loaded	Mounting Type	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Insulation Color	Style	Contact Type	Insulation Material	Contact Material	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Shrouding	Material Flammability Rating	Termination	Contact Shape	Overall Contact Length [x]	Overall Contact Length [x]	Number of Rows	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Max]	Operating Temperature [Min]	Overall Contact Length	Overall Contact Length	Current Rating (Amps)	Voltage Rating	Contact Length - Post [x]	Contact Length - Mating [x]
Molex 0026202091	Automotive General Purpose Industrial Medical Telecommunications	Header	All	Through Hole	4.45 mm	0.175 in	11.43 mm	0.45 in	Natural	Board to Board Cable	Male Pin	Nylon Polyamide (PA)	Brass	Tin	100 çin	2.54 çm	Push-Pull	3.96 mm	0.156 in	0.125 in	3.18 mm	Unshrouded	UL94 V-2	Solder	Circular	19.05 mm	0.75 in	1	9
Molex 0026202172		Header	All	Through Hole	4.45 mm	0.175 in	16.18 mm	0.637 in	Natural	Board to Board Cable	Male Pin	Nylon Polyamide (PA)	Brass	Tin	100 çin	2.54 çm	Push-Pull	3.96 mm	0.156 in	0.125 in	3.18 mm	Unshrouded	UL94 V-2	Solder	Circular			1		2.54 µm	100 µin	80 °C	-40 C	23.8 mm	0.937 in	Varies by Wire Gauge	600 VAC
Molex 0026202071	Automotive General Purpose Industrial Medical Telecommunications	Header	All	Through Hole	4.45 mm	0.175 in	11.43 mm	0.45 in	Natural	Board to Board Cable	Male Pin	Nylon Polyamide (PA)	Brass	Tin	100 çin	2.54 çm	Push-Pull	3.96 mm	0.156 in	0.125 in	3.18 mm	Unshrouded	UL94 V-2	Solder	Circular	19.05 mm	0.75 in	1	7

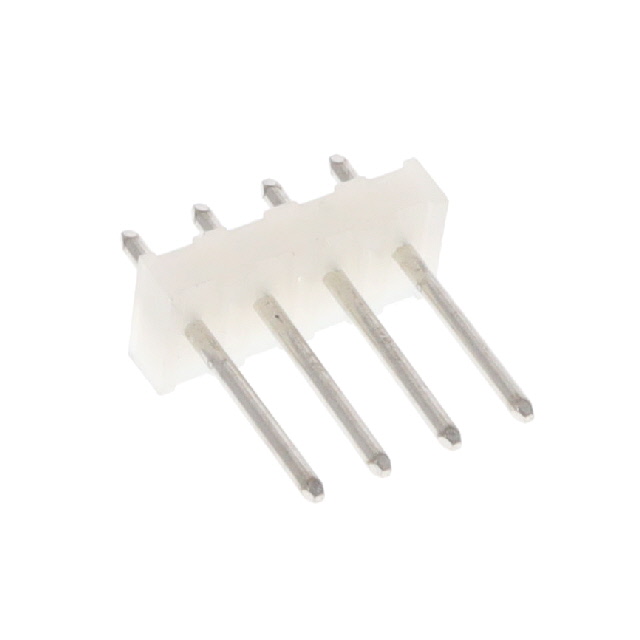

Molex 0026202041	Automotive General Purpose Industrial Medical Telecommunications	Header	All	Through Hole	4.45 mm	0.175 in	11.43 mm	0.45 in	Natural	Board to Board Cable	Male Pin	Nylon Polyamide (PA)	Brass	Tin	100 çin	2.54 çm	Push-Pull	3.96 mm	0.156 in	0.125 in	3.18 mm	Unshrouded	UL94 V-2	Solder	Circular	19.05 mm	0.75 in	1	4
Molex 0026202121	Automotive General Purpose Industrial Medical Telecommunications	Header	All	Through Hole	4.45 mm	0.175 in	11.43 mm	0.45 in	Natural	Board to Board Cable	Male Pin	Nylon Polyamide (PA)	Brass	Tin	100 çin	2.54 çm	Push-Pull	3.96 mm	0.156 in	0.125 in	3.18 mm	Unshrouded	UL94 V-2	Solder	Circular	19.05 mm	0.75 in	1	12

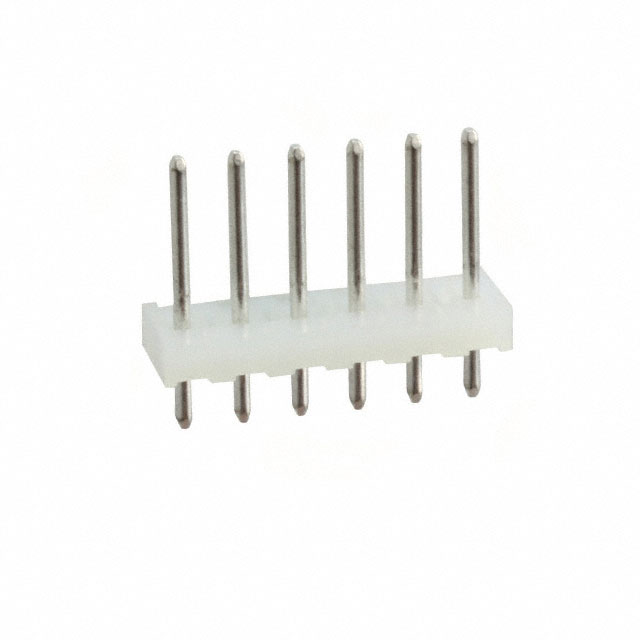

Molex 0026202061	Automotive General Purpose Industrial Medical Telecommunications	Header	All	Through Hole	4.45 mm	0.175 in	11.43 mm	0.45 in	Natural	Board to Board Cable	Male Pin	Nylon Polyamide (PA)	Brass	Tin	100 çin	2.54 çm	Push-Pull	3.96 mm	0.156 in	0.125 in	3.18 mm	Unshrouded	UL94 V-2	Solder	Circular	19.05 mm	0.75 in	1	6
Molex 0026202096	Automotive General Purpose Industrial Medical Telecommunications	Header	All	Through Hole	4 mm		32.51 mm		Natural	Board to Board Cable	Male Pin	Nylon Polyamide (PA)	Brass	Tin	100 çin	2.54 çm	Push-Pull	3.96 mm	0.156 in	0.125 in	3.18 mm	Unshrouded	UL94 V-2	Solder	Circular			1	9					39.67 mm	1.562 in			0.157 in	1.28 in
Molex 0026202131
Molex 0026202102	Automotive General Purpose Industrial Medical Telecommunications	Header	All	Through Hole	4.45 mm	0.175 in	16.18 mm	0.637 in	Natural	Board to Board Cable	Male Pin	Nylon Polyamide (PA)	Brass	Tin	100 çin	2.54 çm	Push-Pull	3.96 mm	0.156 in	0.125 in	3.18 mm	Unshrouded	UL94 V-2	Solder	Circular			1	10					23.8 mm	0.937 in
Molex 0026202181	Automotive General Purpose Industrial Medical Telecommunications	Header	All	Through Hole	4.45 mm	0.175 in	11.43 mm	0.45 in	Natural	Board to Board Cable	Male Pin	Nylon Polyamide (PA)	Brass	Tin	100 çin	2.54 çm	Push-Pull	3.96 mm	0.156 in	0.125 in	3.18 mm	Unshrouded	UL94 V-2	Solder	Circular	19.05 mm	0.75 in	1	18
