R12523 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

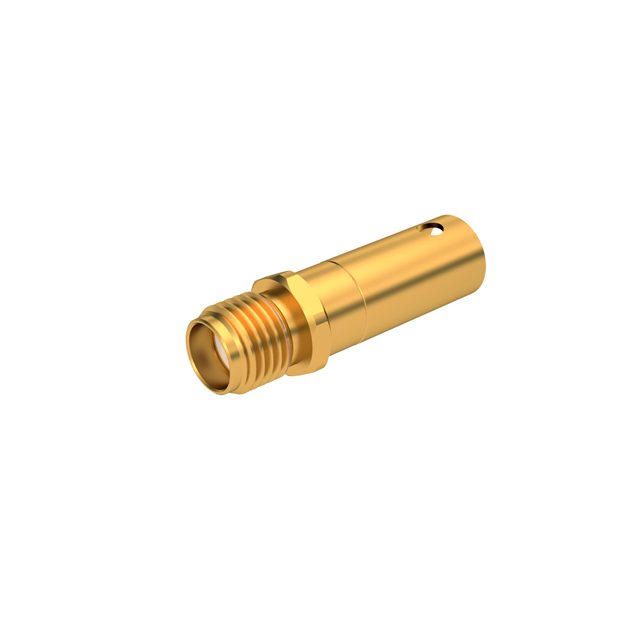

SMA / STRAIGHT JACK CRIMP OR SOL
| Part | Mating Cycles | Voltage Rating | Body Finish | Dielectric Material | Center Contact Plating | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Cable Group | Shield Termination | Contact Termination | Mounting Type | Center Contact Material | Number of Ports | Fastening Type | Connector Type | Impedance | Frequency - Max [Max] | Housing Color | Connector Style | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | 250 V | Gold | Polytetrafluoroethylene (PTFE) | Gold | Stainless Steel | -65 ░C | 165 °C | 316 RG-188 | Crimp | Crimp Solder | Free Hanging (In-Line) | Beryllium Copper | 1 | Threaded | Female Socket Jack | 50 Ohms | 12.4 GHz | Gold | SMA | |
 Radiall USA, Inc. | 500 | 335 V | Gold | Polytetrafluoroethylene (PTFE) | Gold | Stainless Steel | -65 ░C | 165 °C | RG-58 | Crimp | Crimp | Free Hanging (In-Line) | Beryllium Copper | 1 | Threaded | Female Socket Jack | 50 Ohms | 12.4 GHz | Gold | SMA | 141 |
