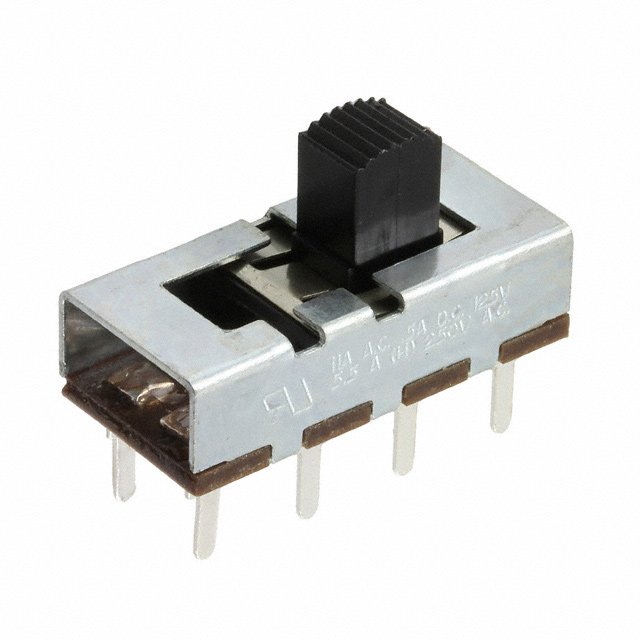

G-1128S Series

Catalog

SWITCH SLIDE DP3T 11A 125V

Part	Switch Travel	Electrical Life	Actuator Material	Mechanical Life	Actuator Type	Actuator Length [x]	Termination Style	Circuit	Contact Material	Voltage Rating - DC	Voltage Rating - AC	Mounting Type	Contact Timing	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Finish
CW Industries G-1128S-0053	6.25 mm	6000 Cycles	Nylon 6/6 Polyamide (PA66)	10000 Steps	Standard	8.74 mm	PC Pin	DP3T	Copper	125 VDC	125 V	Panel Mount	Not Specified	On-On-On	-10 °C	104 °C	11 A 500 mA	Silver
CW Industries G-1128S-0058	6.25 mm	6000 Cycles	Nylon 6/6 Polyamide (PA66)	10000 Steps	Standard	8.74 mm	Solder Lug	DP3T	Copper	125 VDC	125 V	Panel Mount	Not Specified	On-On-On	-10 °C	104 °C	11 A 500 mA	Silver
CW Industries G-1128S-0059	6.25 mm	6000 Cycles	Nylon 6/6 Polyamide (PA66)	10000 Steps	Standard	8.74 mm	PC Pin	DP3T	Copper	125 VDC	125 V	Through Hole	Not Specified	On-On-On	-10 °C	104 °C	11 A 500 mA	Silver
CW Industries G-1128S-0056	6.25 mm	6000 Cycles	Nylon 6/6 Polyamide (PA66)	10000 Steps	Standard	10.31 mm	PC Pin	DP3T	Copper	125 VDC	125 V	Panel Mount	Not Specified	On-On-On	-10 °C	104 °C	11 A 500 mA	Silver

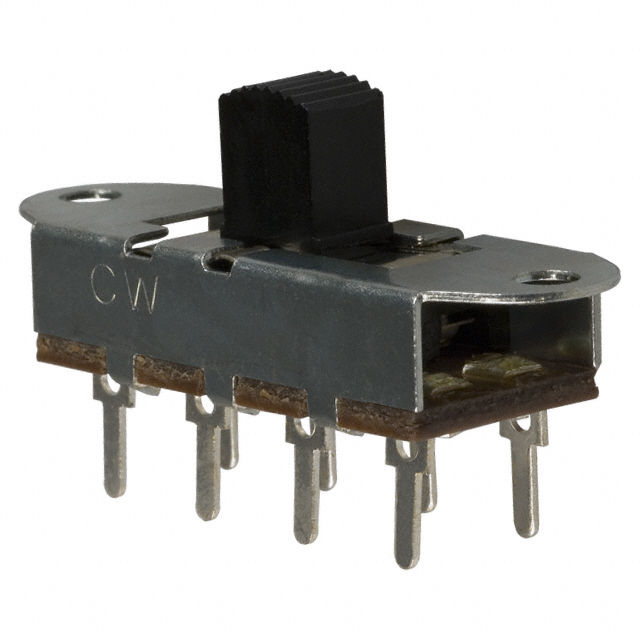

CW Industries G-1128S-1110	6.25 mm	6000 Cycles	Nylon 6/6 Polyamide (PA66)	10000 Steps	Standard	8.74 mm	PC Pin	DP3T	Copper	125 VDC	125 V	Panel Mount	Not Specified	On-On-On	-10 °C	104 °C	11 A 500 mA	Silver
CW Industries G-1128S-0054	6.25 mm	6000 Cycles	Nylon 6/6 Polyamide (PA66)	10000 Steps	Standard		PC Pin	DP3T	Copper	125 VDC	125 V	Panel Mount	Not Specified	On-On-On	-10 °C	104 °C	11 A 500 mA	Silver
CW Industries G-1128S-0000	6.25 mm	6000 Cycles	Nylon 6/6 Polyamide (PA66)	10000 Steps	Standard	8.74 mm	Solder Lug	DP3T	Copper	125 VDC	125 V	Panel Mount	Not Specified	On-On-On	-10 °C	104 °C	11 A 500 mA	Silver

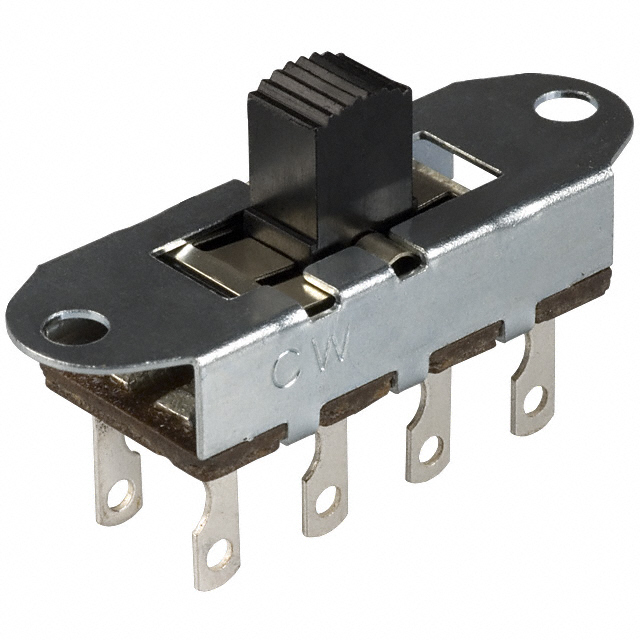

CW Industries G-1128S-0055	6.25 mm	6000 Cycles	Nylon 6/6 Polyamide (PA66)	10000 Steps	Standard	8.74 mm	Solder Lug	DP3T	Copper	125 VDC	125 V	Panel Mount	Not Specified	On-On-On	-10 °C	104 °C	11 A 500 mA	Silver
