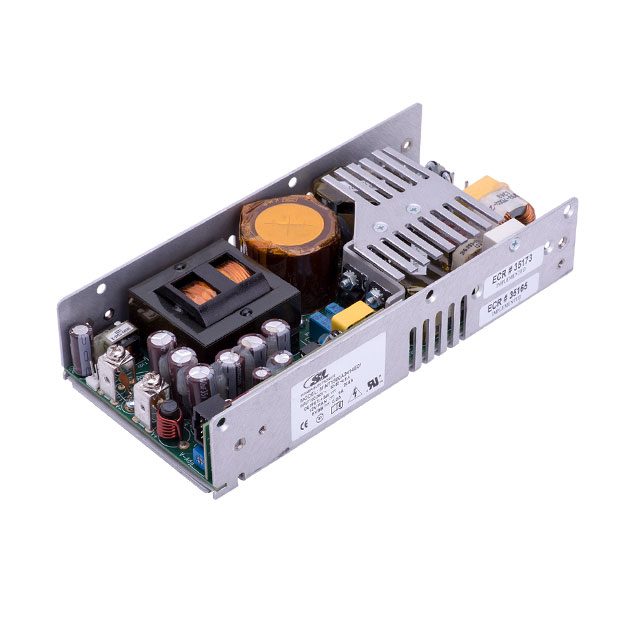

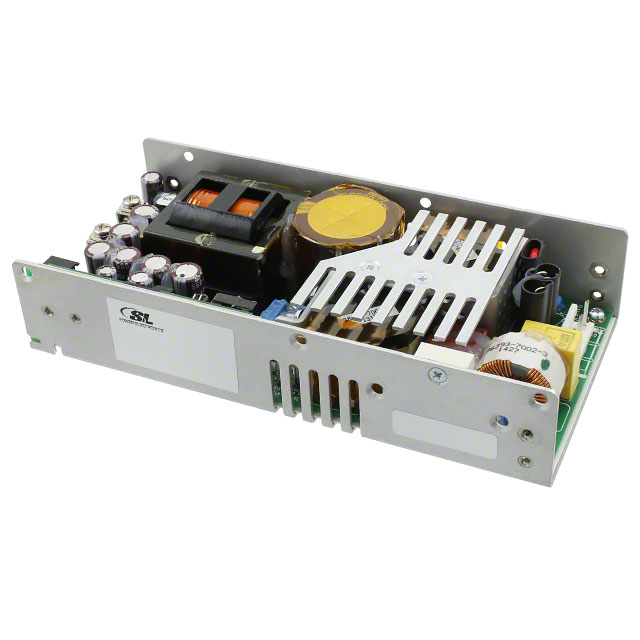

MINT1500 Series

Manufacturer: SL POWER / Advanced Energy

Catalog

AC/DC POWER SUPPLY SINGLE-OUT 48V 500W MEDICAL

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Current - Output 1	Number of Outputs	Features	Voltage - Output 1	Mounting Type	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	Power (Watts)	Approval Agency	Applications	Type	Efficiency
SL POWER / Advanced Energy MINT1500A4814E01	38.2 mm	7 "	3.3 "	177.8 mm	83.8 mm	1.5 in	7.3 A	1	Adjustable Output DC Input Capable Load Sharing PFC Remote Sense Standby Output Universal Input	48 V	Chassis Mount	4000 V	70 °C	-10 °C	270 VAC	90 VAC	500 W	350 W	CE	Medical	Open Frame	93 %
SL POWER / Advanced Energy MINT1500A2414E01	38.2 mm	7 "	3.3 "	177.8 mm	83.8 mm	1.5 in	14.6 A	1	Adjustable Output DC Input Capable Load Sharing PFC Remote Sense Standby Output Universal Input	24 V	Chassis Mount	4000 V	70 °C	-10 °C	270 VAC	90 VAC	500 W	350 W	CE	Medical	Open Frame	93 %
SL POWER / Advanced Energy MINT1500B2414E01	38.1 mm	7.17 in	3.3 "	182.1 mm	83.8 mm	1.5 in	14.6 A	1	DC Input Capable Universal Input	24 V	Chassis Mount	4000 V	70 °C	-10 °C	276 VAC	90 VAC	500 W	350 W	CE	Medical	Open Frame	93 %
SL POWER / Advanced Energy MINT1500B4814E01	38.1 mm	7.17 in	3.3 "	182.1 mm	83.8 mm	1.5 in	7.3 A	1	DC Input Capable Universal Input	48 V	Chassis Mount	4000 V	70 °C	-10 °C	276 VAC	90 VAC	500 W	350 W	CE	Medical	Open Frame	93 %
SL POWER / Advanced Energy MINT1500A5614E01	38.2 mm	7 "	3.3 "	177.8 mm	83.8 mm	1.5 in	6.3 A	1	Adjustable Output DC Input Capable Load Sharing PFC Remote Sense Standby Output Universal Input	56 V	Chassis Mount	4000 V	70 °C	-10 °C	270 VAC	90 VAC	500 W	350 W	CE	Medical	Open Frame	93 %
