R1130810 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

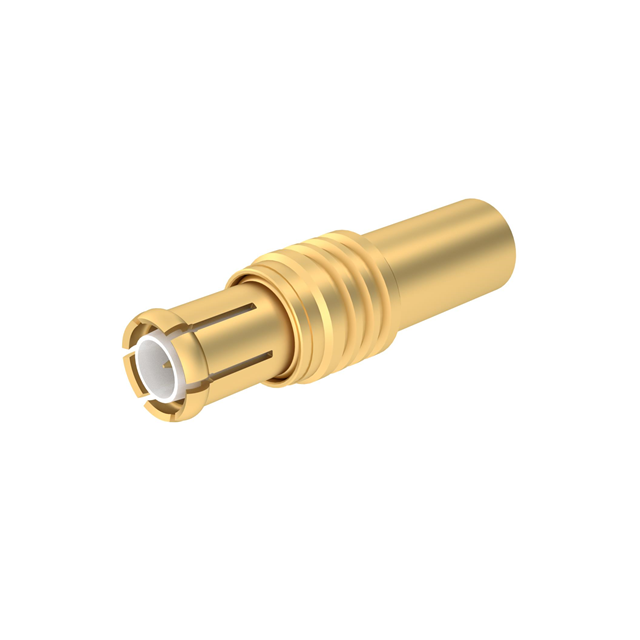

MCX M STR CR 2/50 C100
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Body Finish | Voltage Rating | Mating Cycles | Center Contact Plating | Dielectric Material | Fastening Type | Connector Style | Cable Group | Cable Group | Impedance | Housing Color | Contact Termination | Mounting Type | Frequency - Max [Max] | Shield Termination | Center Contact Material | Connector Type | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 155 C | -55 C | Brass | Gold | 170 V | 500 | Gold | Polytetrafluoroethylene (PTFE) | Snap-On | MCX | 196 | RG-178 | 50 Ohms | Gold | Crimp | Free Hanging (In-Line) | 6000 MHz | Crimp | Brass | Plug Male Pin | 1 |
