ITNF Series

Catalog

PULSE TRANSFORMERS ITNF PULSE TRANSFORM THT 0.17A

Part	Weight [custom]	Weight [custom]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Transformer Type	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Inductance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Weight [diameter]	Weight [diameter]
SCHURTER Inc. ITNF-0239-D202	0.35 oz	9.97 g	0.894 in	22.3 mm	0.878 "	22.7 mm	Isolation and Data Interface (Encapsulated)	1	1	1	100 °C	-25 °C	Through Hole	1.6 mH

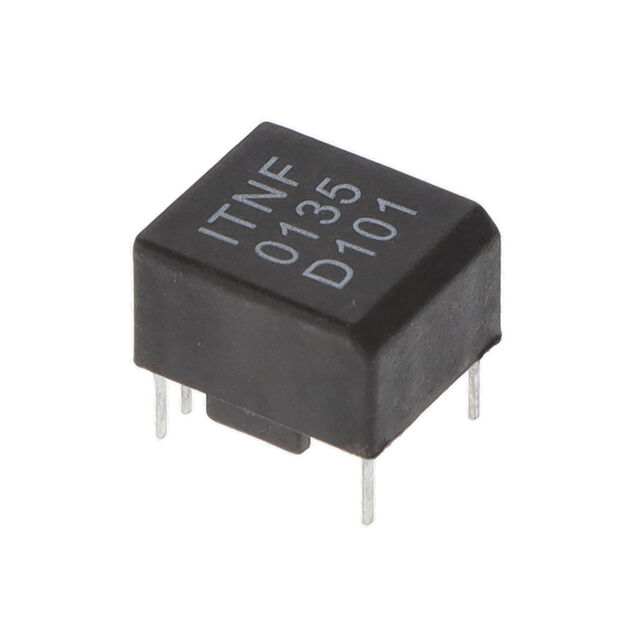

SCHURTER Inc. ITNF-0135-D101	0.11 oz	3.13 g	0.598 in	13 mm	0.512 "	15.2 mm	Isolation and Data Interface (Encapsulated)	1	1	1	100 °C	-25 °C	Through Hole	1.1 mH	10.6 mm	0.417 in

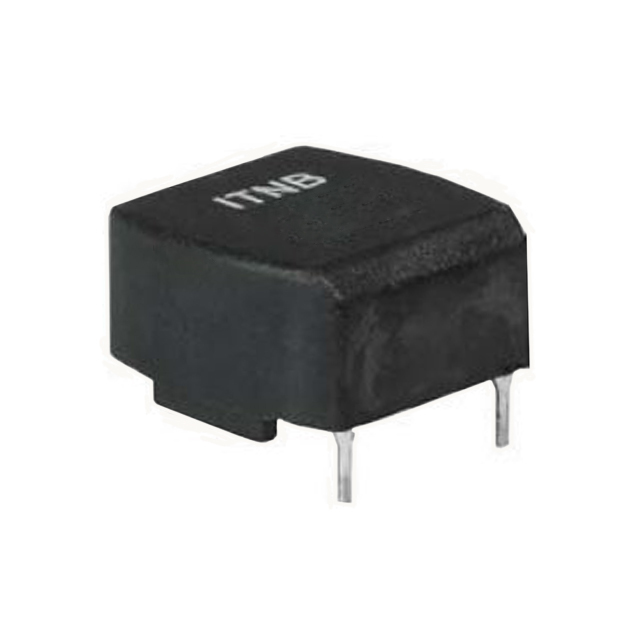

SCHURTER Inc. ITNF-0249-D101			0.717 in	17.8 mm	0.701 in	18.2 mm	Isolation and Data Interface (Encapsulated)	1	1	1	100 °C	-25 °C	Through Hole	1.4 mH	13 mm	0.512 "	0.32 oz	9.12 g
