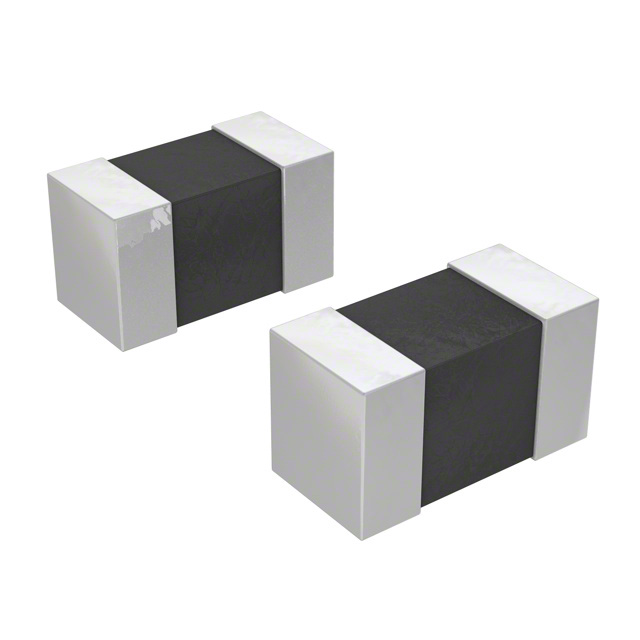

ELJ-QF Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

FIXED IND 6.2NH 330MA 250MOHM SM

Part	Current Rating (Amps)	Mounting Type	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Q @ Freq	Inductance Frequency - Test	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Frequency - Self Resonant	Tolerance	Shielding	Material - Core	Inductance	DC Resistance (DCR) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR)
Panasonic Industrial Automation Sales ELJ-QF6N2ZF	0.33 A	Surface Mount	0402 (1005 Metric)	1 mm	0.02 in	0.5 mm	0.039 in	10 100 MHz	100 MHz	Multilayer	0.022 in	0.55 mm	4.3 GHz	0.2 nH	Unshielded	Ceramic	6.2 nH	250 mOhm	0402 (1005 Metric)	85 °C	-40 °C
Panasonic Industrial Automation Sales ELJ-QF3N9ZF	360 mA	Surface Mount	0402 (1005 Metric)	1 mm	0.02 in	0.5 mm	0.039 in	10 100 MHz	100 MHz	Multilayer	0.022 in	0.55 mm	5.2 GHz	0.2 nH	Unshielded	Ceramic	3.9 nH	150 mOhm	0402 (1005 Metric)	85 °C	-40 °C
Panasonic Industrial Automation Sales ELJ-QF13NJF	0.28 A	Surface Mount	0402 (1005 Metric)	1 mm	0.02 in	0.5 mm	0.039 in	10 100 MHz	100 MHz	Multilayer	0.022 in	0.55 mm	2.6 GHz	5 %	Unshielded	Ceramic	13 nH	530 mOhm	0402 (1005 Metric)	85 °C	-40 °C
Panasonic Industrial Automation Sales ELJ-QF27NGF	0.2 A	Surface Mount	0402 (1005 Metric)	1 mm	0.02 in	0.5 mm	0.039 in	10 100 MHz	100 MHz	Multilayer	0.022 in	0.55 mm	1.8 GHz	2 %	Unshielded	Ceramic	27 nH	1.2 Ohm	0402 (1005 Metric)	85 °C	-40 °C
Panasonic Industrial Automation Sales ELJ-QF30NGF		Surface Mount	0402 (1005 Metric)	1 mm	0.02 in	0.5 mm	0.039 in	10 100 MHz	100 MHz	Multilayer	0.022 in	0.55 mm	1.8 GHz	2 %	Unshielded	Ceramic	30 nH	1.3 Ohm	0402 (1005 Metric)	85 °C	-40 °C
Panasonic Industrial Automation Sales ELJ-QF1N1DF	400 mA	Surface Mount	0402 (1005 Metric)	1 mm	0.02 in	0.5 mm	0.039 in	10 100 MHz	100 MHz	Multilayer	0.022 in	0.55 mm	6 GHz	0.3 nH	Unshielded	Ceramic	1.1 nH		0402 (1005 Metric)	85 °C	-40 °C
Panasonic Industrial Automation Sales ELJ-QF18NGF	0.24 A	Surface Mount	0402 (1005 Metric)	1 mm	0.02 in	0.5 mm	0.039 in	10 100 MHz	100 MHz	Multilayer	0.022 in	0.55 mm		2 %	Unshielded	Ceramic	18 nH	700 mOhm	0402 (1005 Metric)	85 °C	-40 °C
Panasonic Industrial Automation Sales ELJ-QF16NJF	0.24 A	Surface Mount	0402 (1005 Metric)	1 mm	0.02 in	0.5 mm	0.039 in	10 100 MHz	100 MHz	Multilayer	0.022 in	0.55 mm	2.3 GHz	5 %	Unshielded	Ceramic	16 nH		0402 (1005 Metric)	85 °C	-40 °C	650 mOhm
Panasonic Industrial Automation Sales ELJ-QF5N6ZF	0.34 A	Surface Mount	0402 (1005 Metric)	1 mm	0.02 in	0.5 mm	0.039 in	10 100 MHz	100 MHz	Multilayer	0.022 in	0.55 mm	4.6 GHz	0.2 nH	Unshielded	Ceramic	5.6 nH	190 mOhm	0402 (1005 Metric)	85 °C	-40 °C
Panasonic Industrial Automation Sales ELJ-QF20NJF	0.22 A	Surface Mount	0402 (1005 Metric)	1 mm	0.02 in	0.5 mm	0.039 in	10 100 MHz	100 MHz	Multilayer	0.022 in	0.55 mm	2.1 GHz	5 %	Unshielded	Ceramic	20 nH	750 mOhm	0402 (1005 Metric)	85 °C	-40 °C
