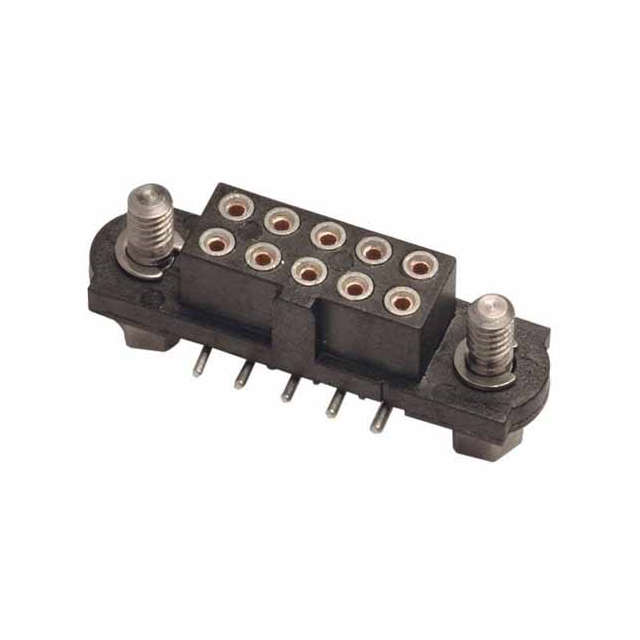

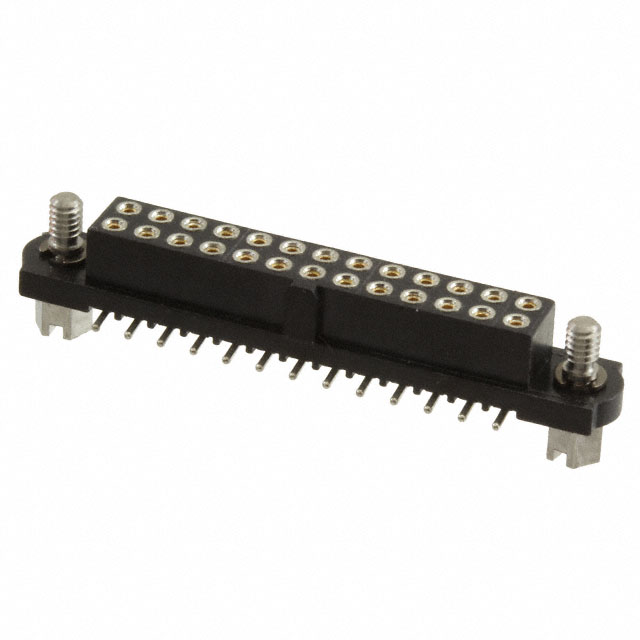

M80-402 Series
Manufacturer: Harwin Inc.
Beta
⌘K
CONN RCPT 14POS 0.079 GOLD SMD
| Part | Contact Material | Insulation Material | Applications | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Shape | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Material Flammability Rating | Number of Rows [custom] | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Row Spacing - Mating | Row Spacing - Mating | Mounting Type | Contact Type | Style | Connector Type | Features | Insulation Color | Contact Finish - Mating | Number of Positions Loaded | Mated Stacking Heights | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Height | Insulation Height | Number of Positions | Termination | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Beryllium Copper | Polyphenylene Sulfide (PPS) Glass Filled | Automotive General Purpose Military | 3.5 Ám | 137.8 Áin | Circular | 12 Áin | 0.3 Ám | UL94 V-0 | 2 | Tin | 0.079 " | 2 mm | 2 mm | 0.079 in | Surface Mount | Female Socket | Board to Board Cable | Receptacle | Jackscrews Mating Flange Mounting Flange Polarizing Key | Black | Gold | All | 7.7 mm 7.95 mm | 120 VDC | -55 C | 125 °C | 5.6 mm | 0.22 in | 14 | Solder | |
Harwin Inc. | Beryllium Copper | Polyphenylene Sulfide (PPS) Glass Filled | Automotive General Purpose Military | 0.25 çm | 10 Áin | Circular | 12 Áin | 0.3 Ám | UL94 V-0 | 2 | Gold | 0.079 " | 2 mm | 2 mm | 0.079 in | Surface Mount | Female Socket | Board to Board Cable | Receptacle | Jackscrews Mating Flange Mounting Flange Polarizing Key | Black | Gold | All | 7.7 mm 7.98 mm | 120 VDC | -55 C | 125 °C | 5.6 mm | 0.22 in | Solder | 34 | |
 Harwin Inc. | Beryllium Copper | Polyphenylene Sulfide (PPS) Glass Filled | Automotive General Purpose Military | 3.5 Ám | 137.8 Áin | Circular | 12 Áin | 0.3 Ám | UL94 V-0 | 2 | Tin | 0.079 " | 2 mm | 2 mm | 0.079 in | Surface Mount | Female Socket | Board to Board Cable | Receptacle | Jackscrews Mating Flange Mounting Flange Polarizing Key | Black | Gold | All | 7.7 mm 7.95 mm | 120 VDC | -55 C | 125 °C | 5.6 mm | 0.22 in | 26 | Solder | |
Harwin Inc. | Beryllium Copper | Polyphenylene Sulfide (PPS) Glass Filled | Automotive General Purpose Military | 0.25 çm | 10 Áin | Circular | 12 Áin | 0.3 Ám | UL94 V-0 | 2 | Gold | 0.079 " | 2 mm | 2 mm | 0.079 in | Surface Mount | Female Socket | Board to Board Cable | Receptacle | Jackscrews Mating Flange Mounting Flange Polarizing Key | Black | Gold | All | 7.7 mm 7.98 mm | 120 VDC | -55 C | 125 °C | 5.6 mm | 0.22 in | 6 | Solder | |
Harwin Inc. | Beryllium Copper | Polyphenylene Sulfide (PPS) Glass Filled | Automotive General Purpose Military | 0.25 çm | 10 Áin | Circular | 12 Áin | 0.3 Ám | UL94 V-0 | 2 | Gold | 0.079 " | 2 mm | 2 mm | 0.079 in | Surface Mount | Female Socket | Board to Board Cable | Receptacle | Jackscrews Mating Flange Mounting Flange Polarizing Key | Black | Gold | All | 7.7 mm 7.98 mm | 120 VDC | -55 C | 125 °C | 5.6 mm | 0.22 in | 10 | Solder | |
Harwin Inc. | Beryllium Copper | Polyphenylene Sulfide (PPS) Glass Filled | Automotive General Purpose Military | 3.5 Ám | 137.8 Áin | Circular | 12 Áin | 0.3 Ám | UL94 V-0 | 2 | Tin | 0.079 " | 2 mm | 2 mm | 0.079 in | Surface Mount | Female Socket | Board to Board Cable | Receptacle | Jackscrews Mating Flange Mounting Flange Polarizing Key | Black | Gold | All | 7.7 mm 7.95 mm | 120 VDC | -55 C | 125 °C | 5.6 mm | 0.22 in | 10 | Solder |
