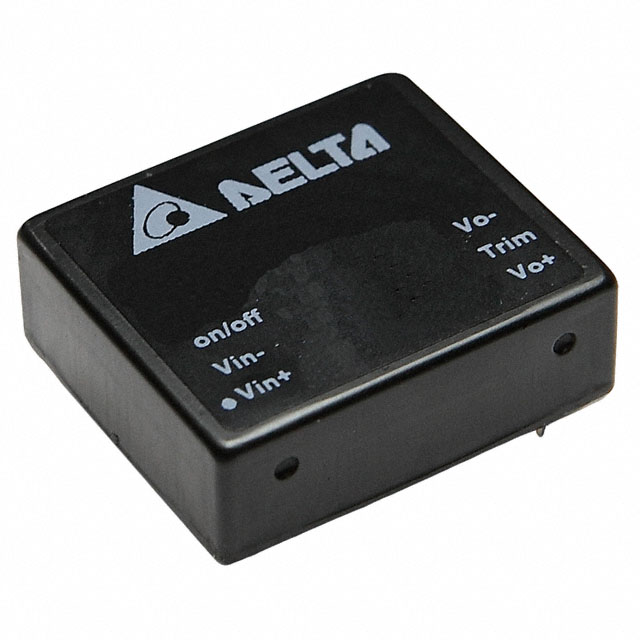

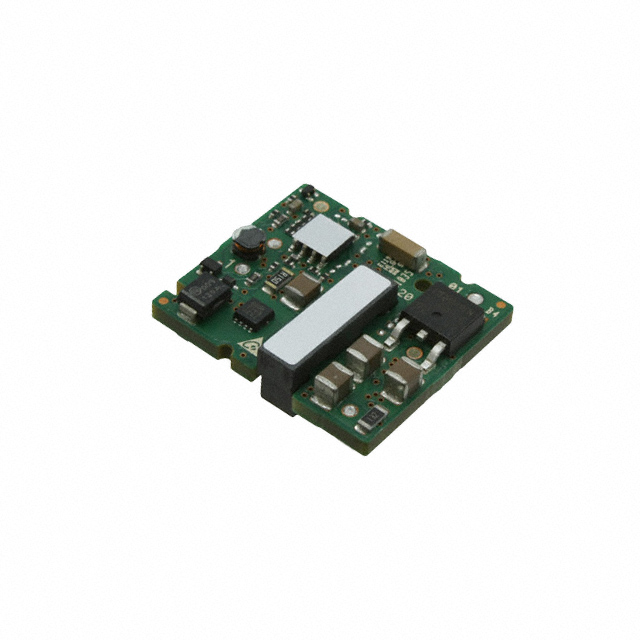

S36SE Series

Catalog

DC DC CONVERTER 5V 17W

Part	Voltage - Input (Min) [Min]	Type	Number of Outputs	Features	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Current - Output (Max) [Max]	Mounting Type	Package / Case	Power (Watts)	Control Features	Applications	Efficiency	Voltage - Output 1	Voltage - Input (Max) [Max]	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max)
Delta Electronics S36SE05003NRFB	18 V	Isolated Module	1	OCP OTP OVP Remote On/Off UVLO	1.1 in	8.7 mm	24.4 mm	0.96 in	0.34 in	27.9 mm	3 A	Through Hole	6-DIP Module	17 W	Active Low Enable	ITE (Commercial)	83.5 %	5 V	75 V	2250 VDC
Delta Electronics S36SE3R305NMFB	18 V	Isolated Module	1	OCP OTP OVP Remote On/Off UVLO	1.1 in	8.7 mm	24.4 mm	0.96 in	0.34 in	27.9 mm		Surface Mount	6-SMD Module 1x1 Brick	17 W	Active Low Enable	ITE (Commercial)	86.5 %	3.3 V	75 V	2250 VDC	-40 C	123 °C	5 A
Delta Electronics S36SE12002PRFZ	36 V	Isolated Module	1	OCP OTP OVP Remote On/Off UVLO	1.1 in	8.7 mm	24.4 mm	0.96 in	0.34 in	27.9 mm	2 A	Through Hole	6-DIP Module	25 W	Active High Enable	ITE (Commercial)	87 %	12 V	75 V	2250 VDC	-40 C	123 °C
Delta Electronics S36SE3R305PDFG	18 V	Isolated Module	1	Remote On/Off UVLO	1 in	10.2 mm	25.4 mm	1 "	0.4 "	25.4 mm		Through Hole	6-DIP Module	17 W	Active High Enable	ITE (Commercial)	86.5 %	3.3 V	75 V	1.5 kV	-40 C	85 °C	5 A
Delta Electronics S36SE3R305NRFB	18 V	Isolated Module	1	OCP OTP OVP Remote On/Off UVLO	1.1 in	8.7 mm	24.4 mm	0.96 in	0.34 in	27.9 mm		Through Hole	6-DIP Module	17 W	Active Low Enable	ITE (Commercial)	86.5 %	3.3 V	75 V	2250 VDC	-40 C	123 °C	5 A
Delta Electronics S36SE05003NDFG	18 V	Isolated Module	1	Remote On/Off UVLO	1.1 in	8.7 mm	24.4 mm	0.96 in	0.34 in	27.9 mm	3 A	Through Hole	6-DIP Module	17 W	Active Low Enable	ITE (Commercial)	83.5 %	5 V	75 V	1.5 kV	-40 C	85 °C
