FEBFAN6 Series
Manufacturer: ON Semiconductor
Beta
⌘K
EVAL BOARD FOR FAN6863W
| Part | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Output | Main Purpose | Outputs and Type | Current - Output | Contents | Utilized IC / Part | Power - Output | Regulator Topology | Board Type | Supplied Contents | Outputs and Type | Frequency - Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ON Semiconductor | 90 VAC | 264 VAC | 19 V | AC/DC Primary Side | 1 Isolated Output | 2.1 A | Board(s) | FAN6863W | 40 W | Flyback | ||||
ON Semiconductor | 5 V | AC/DC Primary and Secondary Side | Isolated | 2.5 A | FAN501 FAN6230A | 12.5 W | Flyback | Fully Populated | Board(s) | 1 | ||||
ON Semiconductor | AC/DC Primary Side | Isolated | FAN6602R | Flyback | Fully Populated | Board(s) | 1 | 65 kHz | ||||||
ON Semiconductor | 90 VAC | 264 VAC | 19 V | AC/DC Primary and Secondary Side | Isolated | 3.42 A | FAN6204 FAN6754 | Flyback | Fully Populated | Board(s) | 1 | |||

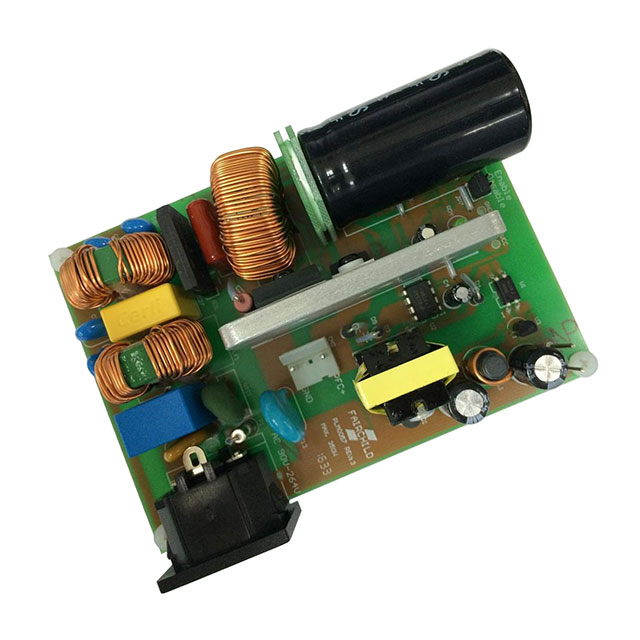

 ON Semiconductor | 90 VAC | 264 VAC | 387 V | AC/DC Primary and Secondary Side with PFC | Isolated | FAN6982 | 350 W | Flyback | Fully Populated | Board(s) | 1 | 65 kHz |
