FVG.2W Series

Circular Push Pull Connectors LWP KeyG 14C CHR 9.5mm K

Manufacturer: LEMO

Catalog

Circular Push Pull Connectors LWP KeyG 14C CHR 9.5mm K

Catalog

Circular Push Pull Connectors LWP KeyG 14C CHR 9.5mm K

Part	Color	Contact Finish - Mating	Shell Material	Contact Material	Ingress Protection	Backshell Material, Plating	Primary Material	Number of Positions	Connector Type	Insert Material	Shell Finish	Mounting Type	Fastening Type	Material Flammability Rating	Current Rating (Amps)	Orientation [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Shielding	Features	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Cable Opening [Min]	Shell Size - Insert
LEMO FVG.2W.326.CLAC70	Silver	Gold	Brass	Brass	IP68 - Dust Tight Waterproof	Brass Chrome	Metal	26	Plug Male Pins	Polyetheretherketone (PEEK)	Chrome	Free Hanging (In-Line)	Threaded	UL94 V-0	2 A	G	200 °C	-20 ░C	39.4 µin	1 µm	Shielded	Backshell Coupling Nut	6.6 mm	0.276 "	7 mm	0.26 "	326
LEMO FVG.2W.306.CLAC15	Silver	Gold	Brass	Brass	IP68 - Dust Tight Waterproof	Brass Chrome	Metal	6	Plug Male Pins	Polyetheretherketone (PEEK)	Chrome	Free Hanging (In-Line)	Threaded	UL94 V-0		G	200 °C	-20 ░C	39.4 µin	1 µm	Shielded	Backshell Coupling Nut					306
LEMO FVG.2W.312.CLAC75	Silver	Gold	Brass	Brass	IP68 - Dust Tight Waterproof	Brass Chrome	Metal	12	Plug Male Pins	Polyetheretherketone (PEEK)	Chrome	Free Hanging (In-Line)	Threaded	UL94 V-0	7 A	G	200 °C	-20 ░C	39.4 µin	1 µm	Shielded	Backshell Coupling Nut	7.1 mm	0.295 in	7.5 mm	0.28 in	312
LEMO FVG.2W.304.CLAC60Z	Silver	Gold	Brass	Brass	IP68 - Dust Tight Waterproof	Brass Chrome	Metal	4	Plug Male Pins	Polyetheretherketone (PEEK)	Chrome	Free Hanging (In-Line)	Threaded	UL94 V-0	15 A	G	200 °C	-20 ░C	39.4 µin	1 µm	Shielded	Backshell Coupling Nut	5.6 mm	0.236 in	6 mm	0.22 in	304
LEMO FVG.2W.318.CLAC85	Silver	Gold	Brass	Brass	IP68 - Dust Tight Waterproof	Brass Chrome	Metal	18	Plug Male Pins	Polyetheretherketone (PEEK)	Chrome	Free Hanging (In-Line)	Threaded	UL94 V-0	5.5 Amps	G	200 °C	-20 ░C	39.4 µin	1 µm	Shielded	Backshell Coupling Nut	8.1 mm	0.335 in	8.5 mm	0.319 in	318
LEMO FVG.2W.319.CLAC75	Silver	Gold	Brass	Brass	IP68 - Dust Tight Waterproof	Brass Chrome	Metal	19	Plug Male Pins	Polyetheretherketone (PEEK)	Chrome	Free Hanging (In-Line)	Threaded	UL94 V-0	5 A	G	200 °C	-20 ░C	39.4 µin	1 µm	Shielded	Backshell Coupling Nut	7.1 mm	0.295 in	7.5 mm	0.28 in	319

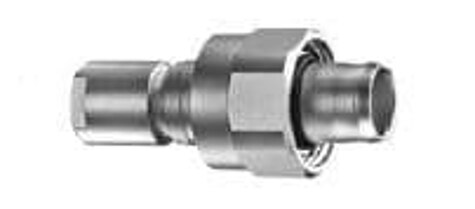

LEMO FVG.2W.314.CLAK95	Silver	Gold	Brass	Brass	IP68 - Dust Tight Waterproof	Brass Chrome	Metal	14	Plug Male Pins	Polyetheretherketone (PEEK)	Chrome	Free Hanging (In-Line)	Threaded	UL94 V-0	6.5 A	G	200 °C	-20 ░C	39.4 µin	1 µm	Shielded	Backshell Coupling Nut					314
LEMO FVG.2W.308.CLAC55	Silver	Gold	Brass	Brass	IP68 - Dust Tight Waterproof	Brass Chrome	Metal	8	Plug Male Pins	Polyetheretherketone (PEEK)	Chrome	Free Hanging (In-Line)	Threaded	UL94 V-0	10 A	G	200 °C	-20 ░C	39.4 µin	1 µm	Shielded	Backshell Coupling Nut	5.1 mm	0.217 in	5.5 mm	0.201 in	308

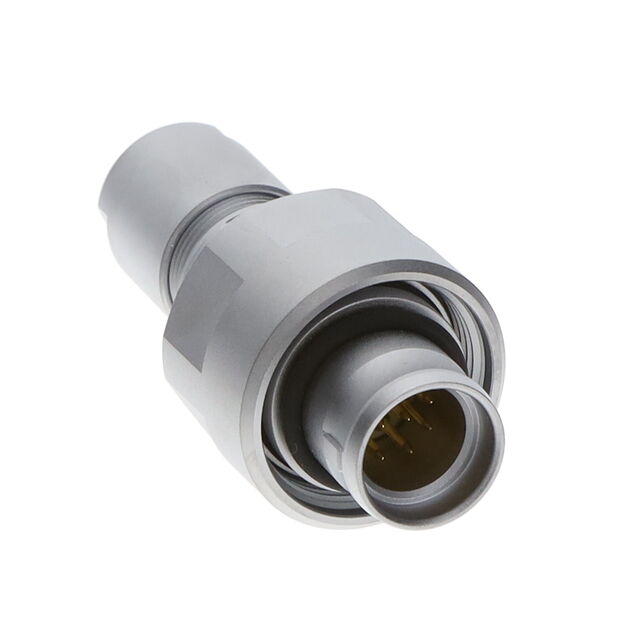

LEMO FVG.2W.310.CLAC85	Silver	Gold	Brass	Brass	IP68 - Dust Tight Waterproof	Brass Chrome	Metal	10	Plug Male Pins	Polyetheretherketone (PEEK)	Chrome	Free Hanging (In-Line)	Threaded	UL94 V-0	8 A	G	200 °C	-20 ░C	39.4 µin	1 µm	Shielded	Backshell Coupling Nut	8.1 mm	0.335 in	8.5 mm	0.319 in	310
LEMO FVG.2W.302.CLAC75	Silver	Gold	Brass	Brass	IP68 - Dust Tight Waterproof	Brass Chrome	Metal	2	Plug Male Pins	Polyetheretherketone (PEEK)	Chrome	Free Hanging (In-Line)	Threaded	UL94 V-0	30 A	G	200 °C	-20 ░C	39.4 µin	1 µm	Shielded	Backshell Coupling Nut	7.1 mm	0.295 in	7.5 mm	0.28 in	302
