GEC04S Series

Manufacturer: Sullins Connector Solutions

Catalog

BOARD CONNECTOR, 4 CONTACT(S), 1 ROW(S), MALE, RIGHT ANGLE, SURFACE MOUNT TERMINAL, ROHS COMPLIANT

Part	Termination	Number of Positions	Mounting Type	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Number of Rows	Contact Material	Pitch - Mating	Pitch - Mating	Insulation Color	Insulation Material	Material Flammability Rating	Contact Shape	Insulation Height	Insulation Height	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Number of Positions Loaded	Contact Length - Mating [x]	Contact Length - Mating [x]	Shrouding	Contact Length - Post	Contact Length - Post	Contact Length - Mating

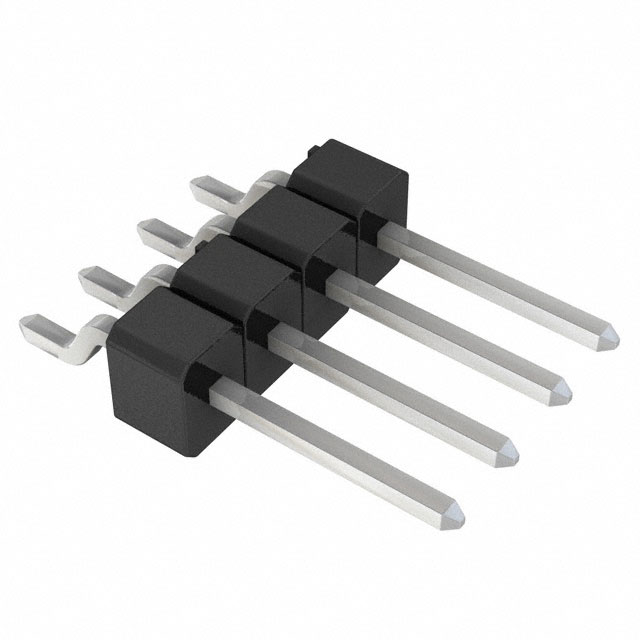

Sullins Connector Solutions GEC04SGSN-M89	Solder	4	Surface Mount Right Angle	Breakaway Header	2.54 çm	100 çin	Tin	Push-Pull	-65 ░C	150 °C	3 A	1	Phosphor Bronze	0.1 in	2.54 mm	Black	Nylon 9T Polyamide (PA9T)	UL94 V-0	Square	3.56 mm	0.14 in	Male Pin	2.54 µm	100 µin	Board to Board Cable	All	0.318 "	8.08 mm	Unshrouded
Sullins Connector Solutions GEC04SBAN-M71	Solder	4	Through Hole Right Angle	Breakaway Header	2.54 çm	100 çin	Tin	Push-Pull	-65 ░C	150 °C	3 A	1	Phosphor Bronze	0.1 in	2.54 mm	Black	Nylon 9T Polyamide (PA9T)	UL94 V-0	Square	2.54 mm	0.1 in	Male Pin	2.54 µm	100 µin	Board to Board Cable	All	0.23 in		Unshrouded	2.54 mm	0.1 in	5.84 mm

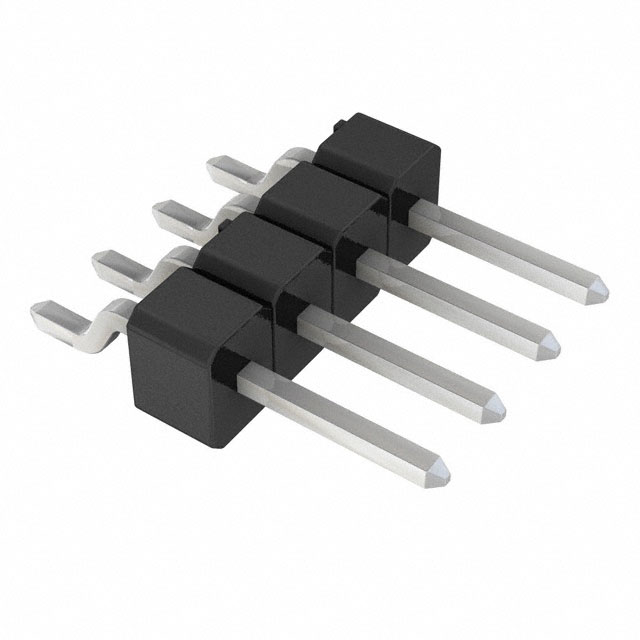

Sullins Connector Solutions GEC04SBSN-M89	Solder	4	Surface Mount Right Angle	Breakaway Header	2.54 çm	100 çin	Tin	Push-Pull	-65 ░C	150 °C	3 A	1	Phosphor Bronze	0.1 in	2.54 mm	Black	Nylon 9T Polyamide (PA9T)	UL94 V-0	Square	3.56 mm	0.14 in	Male Pin	2.54 µm	100 µin	Board to Board Cable	All	0.23 in		Unshrouded			5.84 mm
Sullins Connector Solutions GEC04SABN-M30	Solder	4	Surface Mount	Breakaway Header	2.54 çm	100 çin	Tin	Push-Pull	-65 ░C	150 °C	3 A	1	Phosphor Bronze	0.1 in	2.54 mm	Black	Nylon 9T Polyamide (PA9T)	UL94 V-0	Square	2.54 mm	0.1 in	Male Pin	2.54 µm	100 µin	Board to Board Cable	All	0.23 in		Unshrouded			5.84 mm
