5962-8978503 Series

Catalog

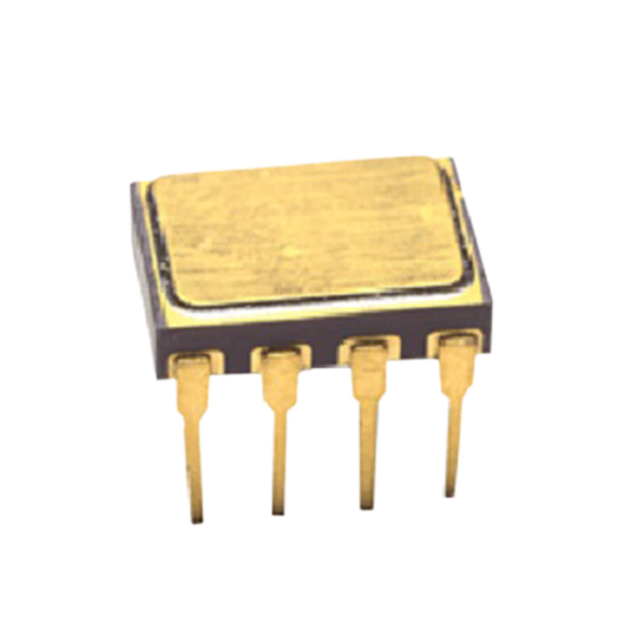

OPTOISO 1.5KV 2CH DARLNG 8-DIP

Part	Output Type	Mounting Type	Turn On / Turn Off Time (Typ)	Input Type	Voltage - Isolation	Supplier Device Package	Number of Channels	Voltage - Forward (Vf) (Typ)	Vce Saturation (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output (Max) [Max]	Current - DC Forward (If) (Max) [Max]	Current Transfer Ratio (Min)	Package / Case	Current - Output / Channel
Broadcom Limited 5962-8978503KPC	Darlington	Through Hole	2 µs 8 µs	DC	1.5 kV	8-DIP	2	1.4 V	110 mV	-55 C	125 °C	20 V	10 mA	200 %	8-DIP (0.300" 7.62mm)	40 mA
Broadcom Limited 5962-8978503KYA	Darlington	Surface Mount	2 µs 8 µs	DC	1.5 kV	8-SMD Butt Joint	2	1.4 V	110 mV	-55 C	125 °C	20 V	10 mA	200 %	8-SMD Butt Joint	40 mA
Broadcom Limited 5962-8978503KZA	Darlington	Surface Mount	2 µs 8 µs	DC	1.5 kV	8-SMD Crew Cut	2	1.4 V	110 mV	-55 C	125 °C	20 V	10 mA	200 %	8-SMD Butt Joint Crew Cut	40 mA
Broadcom Limited 5962-8978503KPA	Darlington	Through Hole	2 µs 8 µs	DC	1.5 kV	8-DIP	2	1.4 V	110 mV	-55 C	125 °C	20 V	10 mA	200 %	8-DIP (0.300" 7.62mm)	40 mA
