OSTTD02 Series

Catalog

TERM BLK 2POS TOP ENTRY 10MM PCB

Part	Clamp Material - Plating [custom]	Screw Thread	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Torque - Screw	Torque - Screw	Contact Material - Plating	Screw Material - Plating	Positions Per Level	Pitch	Pitch	Mating Orientation	Wire Termination	Features	Number of Levels	Current	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Color

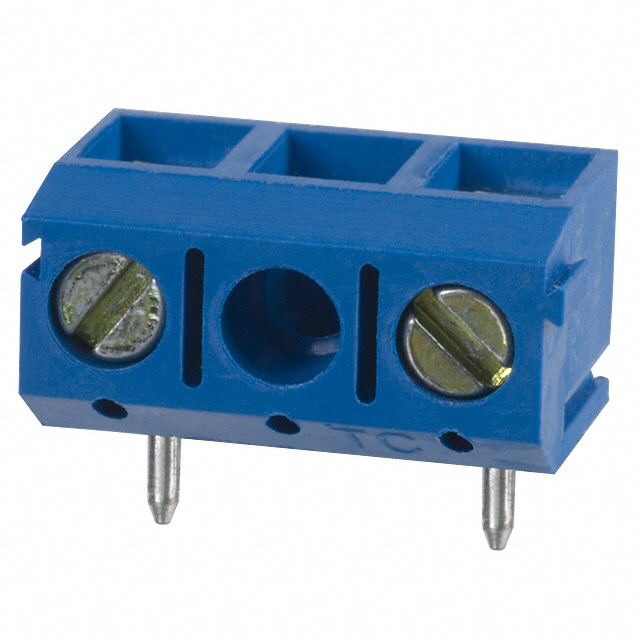

On Shore Technology Inc. OSTTD021162	Stainless Steel	M2.6	Polyamide (PA) Nylon	-33 °C	120 °C	3.5 Lb-In	0.4 Nm	Brass	Steel Galvanized - Chromate Plated	2	0.394 in	10 mm	Vertical with Board	Screw - Leaf Spring Wire Guard	Interlocking (Side)	1	16 A	Through Hole	14 AWG	22 AWG
On Shore Technology Inc. OSTTD020161	Stainless Steel	M2.6	Thermoplastic	-30 ░C	105 ░C	2.6 Lb-In	0.3 Nm	Tin Plated	Steel - Zinc Plated	2	0.197 in	5 mm	Vertical with Board	Screw - Leaf Spring Wire Guard	Interlocking (Side)	1	16 A	Through Hole	14 AWG	22 AWG	Blue
