OSTVA04 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

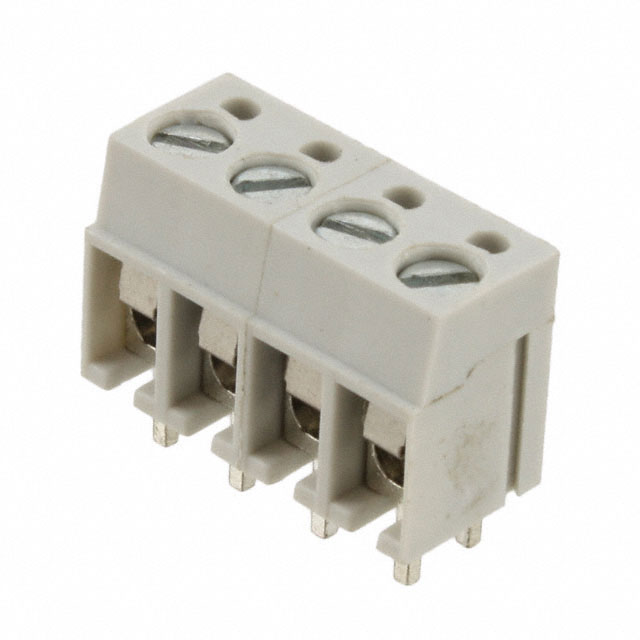

TERM BLK 4POS SIDE ENT 7.5MM PCB
| Part | Color | Voltage | Housing Material | Wire Termination | Clamp Material - Plating | Wire Gauge [Min] | Wire Gauge [Max] | Mating Orientation | Current | Torque - Screw | Torque - Screw | Features | Operating Temperature [Min] | Operating Temperature [Max] | Positions Per Level | Pitch [x] | Pitch [x] | Screw Thread | Screw Material - Plating | Number of Levels | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
On Shore Technology Inc. | Blue | 300 V | Thermoplastic | Screw - Leaf Spring Wire Guard | Stainless Steel | 14 AWG | 22 AWG | Horizontal with Board | 15 A | 0.4 Nm | 3.5 Lb-In | Interlocking (Side) | -30 ░C | 105 ░C | 4 | 0.295 in | 7.5 mm | M3 | Steel Zinc Plated | 1 | Through Hole |
On Shore Technology Inc. | Blue | 300 V | Thermoplastic | Screw - Leaf Spring Wire Guard | Stainless Steel | 14 AWG | 22 AWG | Horizontal with Board | 15 A | 0.4 Nm | 3.5 Lb-In | Interlocking (Side) | -30 ░C | 105 ░C | 4 | 0.197 in | 5 mm | M3 | Steel Zinc Plated | 1 | Through Hole |
 On Shore Technology Inc. | Gray | 300 V | Thermoplastic | Screw - Leaf Spring Wire Guard | Stainless Steel | 14 AWG | 22 AWG | Horizontal with Board | 15 A | 0.4 Nm | 3.5 Lb-In | Interlocking (Side) | -30 ░C | 105 ░C | 4 | 0.197 in | 5 mm | M3 | Steel Zinc Plated | 1 | Through Hole |
