GWE82 Series

Catalog

CONN PCI EXP FMALE 164POS 0.039

Part	Material - Insulation	Gender	Card Thickness	Card Thickness	Number of Positions	Card Type	Contact Type	Contact Finish Thickness	Contact Material	Features	Number of Rows [custom]	Mounting Type	Termination	Contact Finish	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Read Out	Color
Sullins Connector Solutions GWE82DHHN-T931	Polyamide (PA9T) Nylon 9T	Female	1.57 mm	0.062 in	164	PCI Express™	Cantilever	Flash	Phosphor Bronze	Board Guide Locking Ramp	2	Through Hole	Solder Staggered	Gold	1 mm	0.039 in	-65 ░C	125 °C	Dual

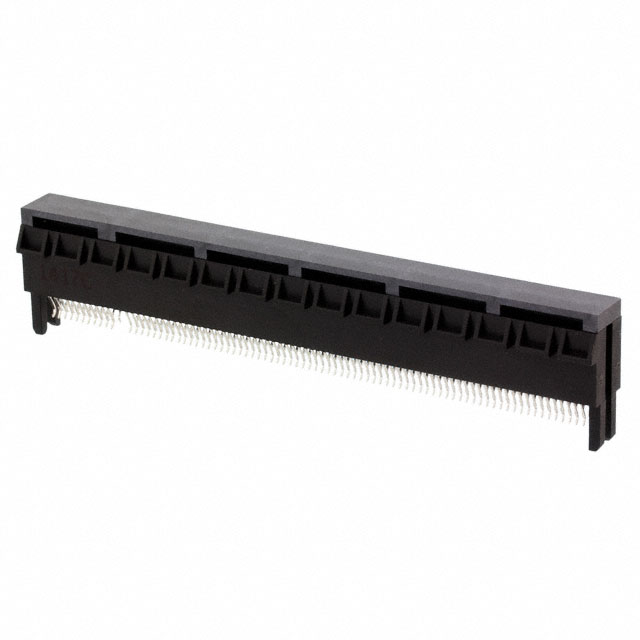

Sullins Connector Solutions GWE82DHRN-T9410	Polyamide (PA9T) Nylon 9T	Female	1.57 mm	0.062 in	164	PCI Express™	Cantilever	Flash	Phosphor Bronze	Cap Card Extender Locking Ramp	2	Board Edge Straddle Mount	Solder	Gold	1 mm	0.039 in	-10 °C	85 °C	Dual	Black

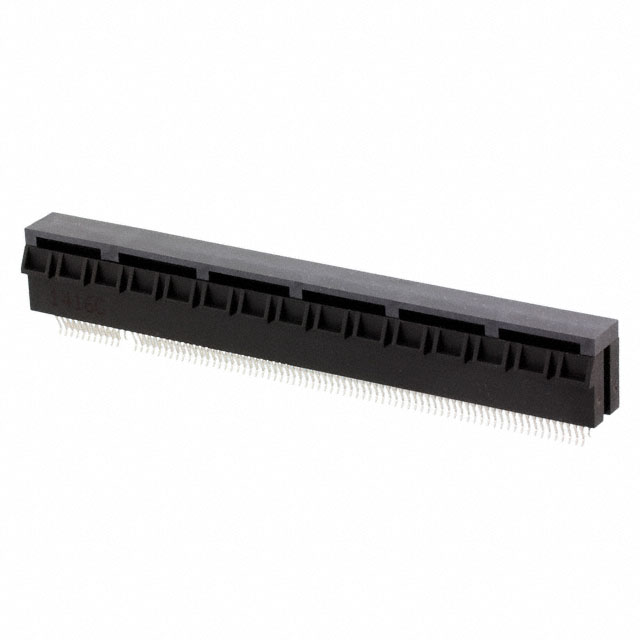

Sullins Connector Solutions GWE82DHRN-T941	Polyamide (PA9T) Nylon 9T	Female	1.57 mm	0.062 in	164	PCI Express™	Cantilever	Flash	Phosphor Bronze	Cap Card Extender Locking Ramp	2	Board Edge Straddle Mount	Solder	Gold	1 mm	0.039 in	-10 °C	85 °C	Dual	Black
