ECA-2VM Series

Manufacturer: Panasonic Electronic Components

Catalog

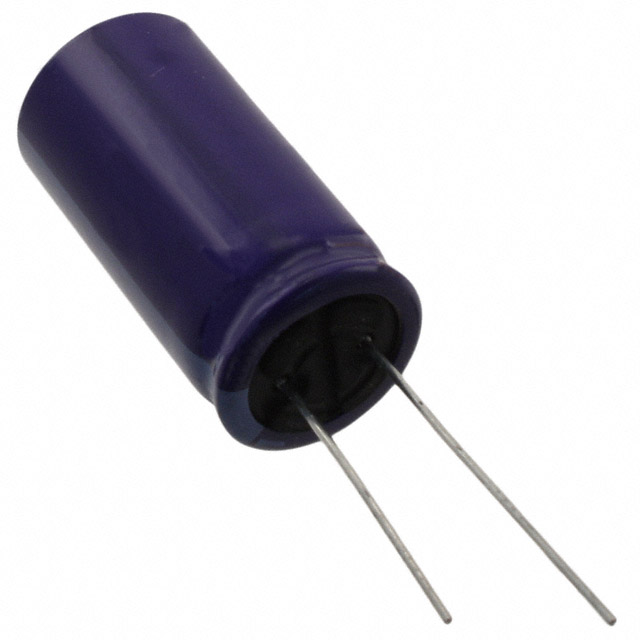

CAP ALUMINUM LYTIC 100UF 350V 20

Part	Voltage - Rated	Ripple Current @ Low Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Lifetime @ Temp.	Capacitance	Package / Case	Lead Spacing	Lead Spacing	Polarization	Tolerance	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]
Panasonic Electronic Components ECA-2VM101	350 V	535 mA	0.709 in	18 mm	2000 Hrs	100 µF	Can Radial	0.295 in	7.5 mm	Polar	20 %	Through Hole	85 °C	-25 °C	General Purpose	1.319 in	33.5 mm	909.5 mA
Panasonic Electronic Components ECA-2VM101
Panasonic Electronic Components ECA-2VM470	350 V	325 mA	0.63 in	16 mm	2000 Hrs	47 µF	Can Radial	0.295 in	7.5 mm	Polar	20 %	Through Hole	85 °C	-25 °C	General Purpose			552.5 mA	1.063 in	27 mm
Panasonic Electronic Components ECA-2VM2R2	350 V		0.315 in	8 mm	2000 Hrs	2.2 µF	Can Radial	0.138 in	3.5 mm	Polar	20 %	Through Hole	85 °C	-25 °C	General Purpose			93.5 mA		0.492 in	12.5 mm
Panasonic Electronic Components ECA-2VM330	350 V	300 mA	0.63 in	16 mm	2000 Hrs	33 ÁF	Can Radial	0.295 in	7.5 mm	Polar	20 %	Through Hole	85 °C	-25 °C	General Purpose			510 mA	1.063 in	27 mm
Panasonic Electronic Components ECA-2VM3R3	350 V	60 mA	0.315 in	8 mm	2000 Hrs	3.3 µF	Can Radial	0.197 "	5 mm	Polar	20 %	Through Hole	85 °C	-25 °C	General Purpose			102 mA		0.492 in	12.5 mm
Panasonic Electronic Components ECA-2VM010	350 V	32 mA	0.248 "	6.3 mm	2000 Hrs	1 µF	Can Radial	0.098 in	2.5 mm	Polar	20 %	Through Hole	85 °C	-25 °C	General Purpose		12.2 mm	10 kHz 54.4 mA	0.48 in
Panasonic Electronic Components ECA-2VM4R7	350 V	65 mA	0.394 in	10 mm	2000 Hrs	4.7 µF	Can Radial	0.197 "	5 mm	Polar	20 %	Through Hole	85 °C	-25 °C	General Purpose			110.5 mA	0.531 in	13.5 mm
Panasonic Electronic Components ECA-2VM220	350 V		0.492 in	12.5 mm	2000 Hrs	22 µF	Can Radial	0.197 "	5 mm	Polar	20 %	Through Hole	85 °C	-25 °C	General Purpose			331.5 mA				0.866 in	22 mm
