89073 Series

Catalog

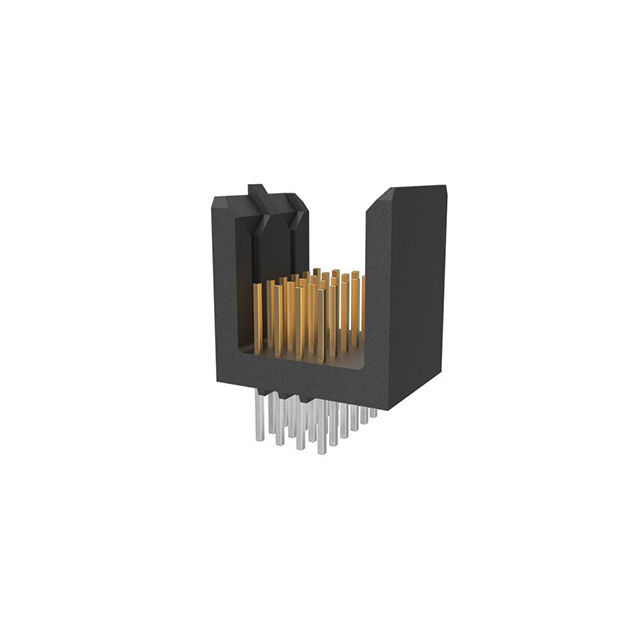

CONN HEADER 24POS PCB

Part	Number of Positions	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Material Flammability Rating	Connector Type	Termination	Mounting Type	Color	Connector Style	Number of Positions Loaded	Number of Columns
Amphenol ICC (FCI) 89073-1106LF	24	All	-55 °C	125 °C	0.079 in	2 mm	Gold	0.76 Ám	30 Áin	UL94 V-0	Header Male Pins	Press-Fit	Through Hole	Natural White
Amphenol ICC (FCI) 89073-207	24		-55 °C	125 °C	0.079 in	2 mm	Gold	2.03 Ám	80 Áin	UL94 V-0	Header Male Pins	Press-Fit	Through Hole	Natural	High Speed	12
Amphenol ICC (FCI) 89073-118LF	24		-55 °C	125 °C	0.079 in	2 mm	Gold	0.76 Ám	30 Áin	UL94 V-0	Header Male Pins	Press-Fit	Through Hole	Natural		12
Amphenol ICC (FCI) 89073-1128LF	24	All	-55 °C	125 °C	0.079 in	2 mm	Gold	0.76 Ám	30 Áin	UL94 V-0	Header Male Pins	Press-Fit	Through Hole	Natural
Amphenol ICC (FCI) 89073-181LF	24	All	-55 °C	125 °C	0.079 in	2 mm	Gold	0.76 Ám	30 Áin	UL94 V-0	Header Male Pins	Press-Fit	Through Hole	Natural White
Amphenol ICC (FCI) 89073-199LF	24	All	-55 °C	125 °C	0.079 in	2 mm	Gold	0.76 Ám	30 Áin	UL94 V-0	Header Male Pins	Press-Fit	Through Hole	Natural White
Amphenol ICC (FCI) 89073-184PLF	24		-55 °C	125 °C	0.079 in	2 mm	Gold	0.76 Ám	30 Áin	UL94 V-0	Header Male Pins	Press-Fit	Through Hole	Natural		14
Amphenol ICC (FCI) 89073-121LF	24	All	-55 °C	125 °C	0.079 in	2 mm	Gold	0.76 Ám	30 Áin	UL94 V-0	Header Male Pins	Press-Fit	Through Hole	Natural White
Amphenol ICC (FCI) 89073-193LF	24	All	-55 °C	125 °C	0.079 in	2 mm	Gold	0.76 Ám	30 Áin	UL94 V-0	Header Male Pins	Press-Fit	Through Hole	Natural White			6
Amphenol ICC (FCI) 89073-107LF	24		-55 °C	125 °C	0.079 in	2 mm	Gold	0.76 Ám	30 Áin	UL94 V-0	Header Male Pins	Press-Fit	Through Hole	Natural White		12
