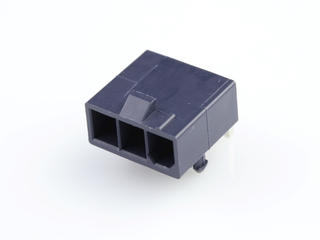

Mini-Fit Jr. Header, Single Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 3 Circuits, Nylon, 94V-2, Matte Tin (Sn) Plating, Glow-Wire Capable
Mini-Fit Jr. Header, Single Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 3 Circuits, Nylon, 94V-2, Matte Tin (Sn) Plating, Glow-Wire Capable
Mini-Fit Jr. Header, Single Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 3 Circuits, Nylon, 94V-2, Matte Tin (Sn) Plating, Glow-Wire Capable
| Part | Current Rating (Amps) | Number of Positions Loaded | Fastening Type | Contact Shape | Termination | Insulation Height | Insulation Height [z] | Mounting Type | Features | Pitch - Mating | Pitch - Mating | Number of Rows | Voltage Rating | Contact Length - Post | Contact Length - Post | Contact Type | Applications | Style | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Color | Material Flammability Rating | Shrouding | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Number of Positions | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Post | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Varies by Wire Gauge | All | Locking Ramp | Square | Solder | 5.4 mm | 0.213 in | Through Hole Right Angle | Board Lock Glow Wire Compliant | 4.2 mm | 0.165 in | 1 | 600 V | 3.5 mm | 0.138 in | Male Pin | General Purpose Industrial Telecommunications | Board to Cable/Wire | 2.54 çm | 100 çin | Black | UL94 V-2 | Shrouded - 4 Wall | Header | -40 °C | 105 ░C | Brass Alloy | 6 | 2.54 µm | 100 µin | Tin | Nylon Polyamide (PA) |
 Molex | Varies by Wire Gauge | All | Locking Ramp | Square | Solder | 5.4 mm | 0.213 in | Through Hole Right Angle | Board Lock Glow Wire Compliant | 4.2 mm | 0.165 in | 1 | 600 V | 3.5 mm | 0.138 in | Male Pin | General Purpose Industrial Telecommunications | Board to Cable/Wire | 2.54 çm | 100 çin | Black | UL94 V-2 | Shrouded - 4 Wall | Header | -40 °C | 105 ░C | Brass Alloy | 2.54 µm | 100 µin | Tin | Nylon Polyamide (PA) |
