LP55281 Series

12-channel RGB/White-LED driver with SPI/I2C Interface

Catalog

12-channel RGB/White-LED driver with SPI/I2C Interface

Part	Frequency	Package / Case	Mounting Type	Type	Topology	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output / Channel [custom]	Voltage - Supply (Max)	Dimming	Voltage - Output [Max]	Voltage - Output [Min]	Voltage - Supply (Min) [Min]	Number of Outputs	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Current - Output / Channel	Utilized IC / Part	Features	Voltage - Output	Outputs and Type	Voltage - Input [Min]	Voltage - Input [Max]	Supplied Contents
Texas Instruments LP55281RL/NOPB	2 MHz	36-WFBGA DSBGA	Surface Mount	DC DC Regulator	Step-Up (Boost)	Backlight	-30 °C	85 °C	40 mA	5.5 V	I2C SPI	5.3 V	4 V	3 V	12	3.24	36-DSBGA	3.5
Texas Instruments LP55281TL/NOPB	2 MHz	36-WFBGA DSBGA	Surface Mount	DC DC Regulator	Step-Up (Boost)	Backlight	-30 °C	85 °C	40 mA	5.5 V	I2C SPI	5.3 V	4 V	3 V	12		36-DSBGA

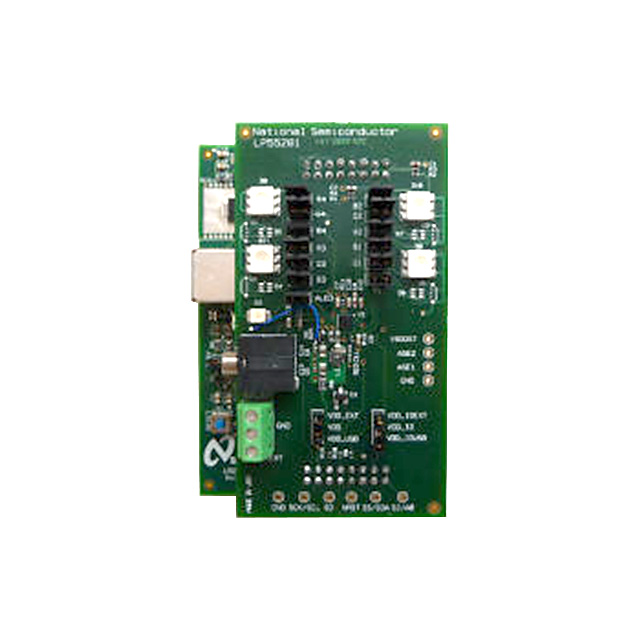

Texas Instruments LP55281RLEV																			400 mA	LP55281	Dimmable	5.3 V	12	2.7 V	5.5 V	Board(s) Cable(s)

Catalog

12-channel RGB/White-LED driver with SPI/I2C Interface

Key Features

• Audio Synchronization for a Single Fun-Light LEDFour PWM Controlled RGB LED DriversHigh-Efficiency Boost DC-DC ConverterSPI or I2C-Compatible InterfaceTwo Addresses in I2C-Compatible InterfaceLED Connectivity Test Through the Serial InterfaceAudio Synchronization for a Single Fun-Light LEDFour PWM Controlled RGB LED DriversHigh-Efficiency Boost DC-DC ConverterSPI or I2C-Compatible InterfaceTwo Addresses in I2C-Compatible InterfaceLED Connectivity Test Through the Serial Interface

Description

The LP55281 device is a quadruple RGB LED driver for handheld devices. It can drive 4 RGB LED sets and a single fun-light LED. The boost DC-DC converter drives high current loads with high efficiency. The RGB driver can drive individual color LEDs or RGB LEDs powered from boost output or external supply. Built-in audio synchronization feature allows user to synchronize the fun-light LED to audio inputs. The flexible SPI or I2C interface allows easy control of LP55281. A small YZR0036 or YPG0036 package, together with minimum number of external components, is a best fit for handheld devices. The LP55281 also has an LED test feature, which can be used, for example, in production for checking the LED connections. The LP55281 device is a quadruple RGB LED driver for handheld devices. It can drive 4 RGB LED sets and a single fun-light LED. The boost DC-DC converter drives high current loads with high efficiency. The RGB driver can drive individual color LEDs or RGB LEDs powered from boost output or external supply. Built-in audio synchronization feature allows user to synchronize the fun-light LED to audio inputs. The flexible SPI or I2C interface allows easy control of LP55281. A small YZR0036 or YPG0036 package, together with minimum number of external components, is a best fit for handheld devices. The LP55281 also has an LED test feature, which can be used, for example, in production for checking the LED connections.
