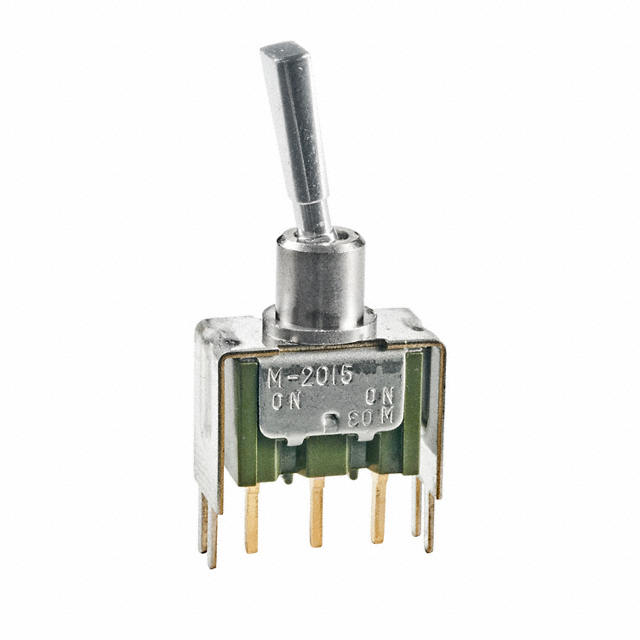

M2015EA Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE SPDT 6A 125V
| Part | Electrical Life | Actuator Material | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Actuator Type | Voltage Rating - DC | Current Rating (Amps) | Termination Style | Panel Cutout Dimensions [diameter] | Voltage Rating - AC | Circuit | Switch Function | Features | Actuator Length [x] | Bushing Thread | Illumination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | Brass Chrome Plated | 85 °C | -30 ░C | Through Hole | Flatted | 30 V | 3 A 6 A | PC Pin | 6.5 mm | 125 V | SPDT | On-Mom | Epoxy Sealed Terminals | 13.21 mm | Unthreaded | Non-Illuminated |
