8522 Series

Catalog

WIRE, HOOK UP, PVC, BLACK, 18 AWG, 100 FT

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Voltage	Cable Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Qualification	Conductor Material	Wire Gauge	Jacket (Insulation) Material	Length	Length
Belden Inc. 8522 010100	0.43 mm	0.017 "	Black	1 kV	Hook-Up	80 °C	-40 C	Chemical Resistant	0.08 in	2.03 mm	100 ft	30.5 m	16	30 AWG	MIL-W-76C Type MW	Copper Tinned	18 AWG	Poly-Vinyl Chloride (PVC)
Belden Inc. 8522 006100	0.43 mm	0.017 "	Blue	1 kV	Hook-Up	80 °C	-40 C	Chemical Resistant	0.08 in	2.03 mm	100 ft	30.5 m	16	30 AWG	MIL-W-76C Type MW	Copper Tinned	18 AWG	Poly-Vinyl Chloride (PVC)
Belden Inc. 8522 0081000	0.43 mm	0.017 "	Gray	1 kV	Hook-Up	80 °C	-40 C	Chemical Resistant	0.08 in	2.03 mm			16	30 AWG	MIL-W-76C Type MW	Copper Tinned	18 AWG	Poly-Vinyl Chloride (PVC)	304.8 m	1000 ft
Belden Inc. 8522 0051000	0.43 mm	0.017 "	Green	1 kV	Hook-Up	80 °C	-40 C	Chemical Resistant	0.08 in	2.03 mm			16	30 AWG	MIL-W-76C Type MW	Copper Tinned	18 AWG	Poly-Vinyl Chloride (PVC)	304.8 m	1000 ft
Belden Inc. 8522 003100	0.43 mm	0.017 "	Orange	1 kV	Hook-Up	80 °C	-40 C	Chemical Resistant	0.08 in	2.03 mm	100 ft	30.5 m	16	30 AWG	MIL-W-76C Type MW	Copper Tinned	18 AWG	Poly-Vinyl Chloride (PVC)

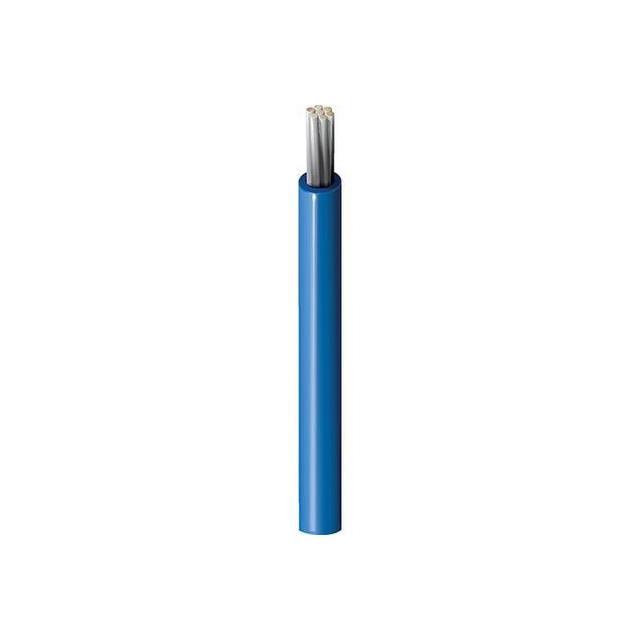

Belden Inc. 8522 0031000	0.43 mm	0.017 "	Orange	1 kV	Hook-Up	80 °C	-40 C	Chemical Resistant	0.08 in	2.03 mm			16	30 AWG	MIL-W-76C Type MW	Copper Tinned	18 AWG	Poly-Vinyl Chloride (PVC)	304.8 m	1000 ft
Belden Inc. 8522 0011000	0.43 mm	0.017 "	Brown	1 kV	Hook-Up	80 °C	-40 C	Chemical Resistant	0.08 in	2.03 mm			16	30 AWG	MIL-W-76C Type MW	Copper Tinned	18 AWG	Poly-Vinyl Chloride (PVC)	304.8 m	1000 ft
Belden Inc. 8522 0111000	0.43 mm	0.017 "	Tan	1 kV	Hook-Up	80 °C	-40 C	Chemical Resistant	0.08 in	2.03 mm			16	30 AWG	MIL-W-76C Type MW	Copper Tinned	18 AWG	Poly-Vinyl Chloride (PVC)	304.8 m	1000 ft

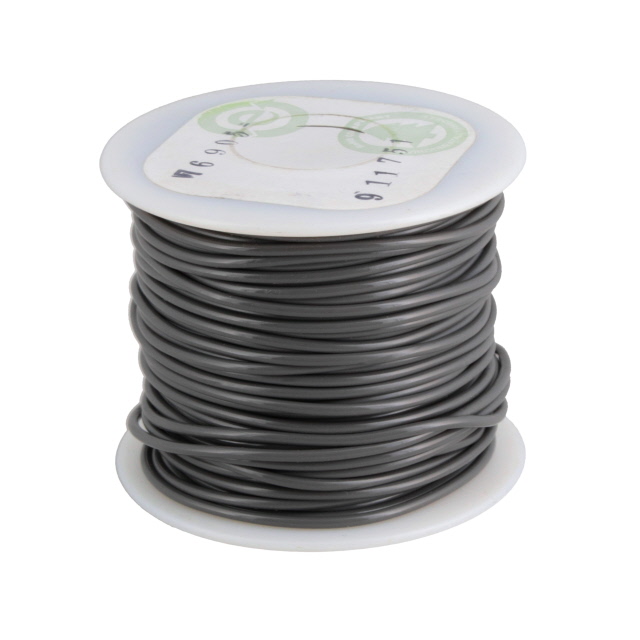

Belden Inc. 8522 008100	0.43 mm	0.017 "	Gray	1 kV	Hook-Up	80 °C	-40 C	Chemical Resistant	0.08 in	2.03 mm	100 ft	30.5 m	16	30 AWG	MIL-W-76C Type MW	Copper Tinned	18 AWG	Poly-Vinyl Chloride (PVC)
Belden Inc. 8522 007100	0.43 mm	0.017 "	Violet	1 kV	Hook-Up	80 °C	-40 C	Chemical Resistant	0.08 in	2.03 mm	100 ft	30.5 m	16	30 AWG	MIL-W-76C Type MW	Copper Tinned	18 AWG	Poly-Vinyl Chloride (PVC)
