WM-64 Series

Catalog

MIC COND ANLG OMNI -45DB 0.236"D

Part	Current - Supply	Impedance	Termination	Size / Dimension [diameter]	Size / Dimension [diameter]	Type	Voltage - Rated	Frequency Range [Max]	Frequency Range [Min]	Direction	Sensitivity	Port Location	Output Type	Shape	Voltage Range [Min]	Voltage Range [Max]	S/N Ratio	Height (Max) [z]	Height (Max) [z]
Panasonic Electronic Components WM-64K	500 µA	2.2 kOhms	Solder Pads	6 mm	0.236 in	Electret Condenser	2 VDC	15 kHz	50 Hz	Omnidirectional	-45 dB	Top	Analog	Circular	2 V	10 V	58 dB	0.087 in	2.2 mm

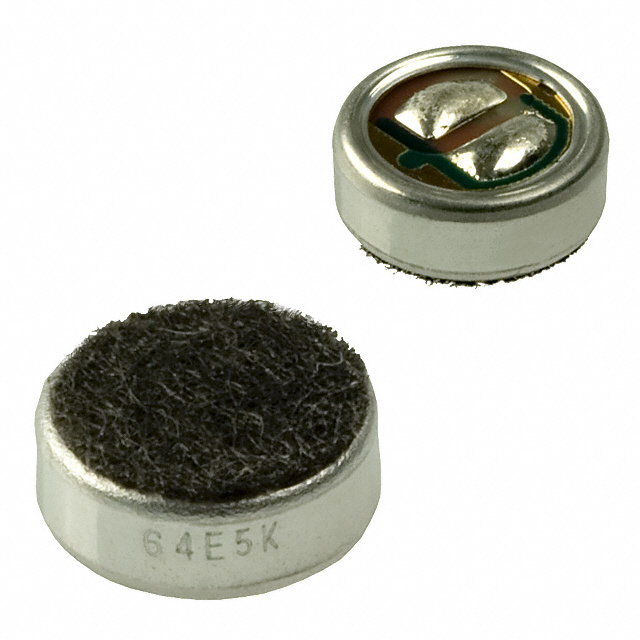

Panasonic Electronic Components WM-64C	500 µA	2.2 kOhms	Solder Pads	6 mm	0.236 in	Electret Condenser	2 VDC	15 kHz	50 Hz	Omnidirectional	-45 dB	Top	Analog	Circular	2 V	10 V	58 dB	0.087 in	2.2 mm

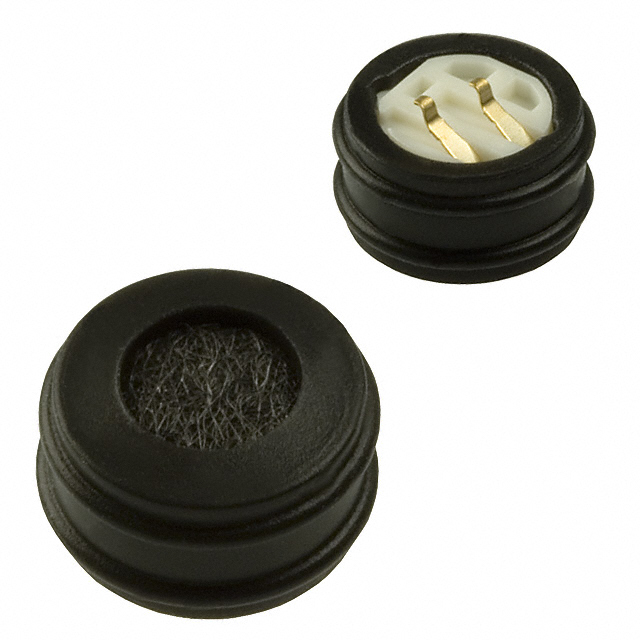

Panasonic Electronic Components WM-64MNT330A	500 µA	2.2 kOhms	Pressure Contact	7.7 mm	0.303 in	Electret Condenser	2 VDC	16 kHz	20 Hz	Omnidirectional	-44 dB	Top	Analog	Circular	2 V	10 V	58 dB	0.157 in	4 mm
