857-068 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 68POS 0.156

...

Part	Termination Rows [custom]	Material - Insulation	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Termination	Contact Material	Color	Number of Rows [custom]	Gender	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Pitch	Pitch	Contact Finish	Read Out	Number of Positions	Number of Positions/Bay/Row	Card Type	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Features

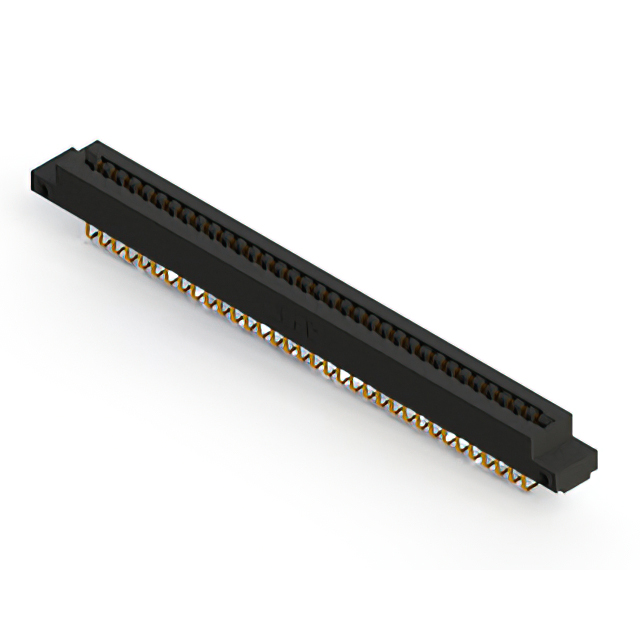

EDAC Inc. 857-068-558-212	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Right Angle Through Hole	Solder	Copper Alloy	Black	2	Female	Side Mount Opening Unthreaded	0.128 "	3.25 mm	3.96 mm	0.156 in	Gold	Single	68 positions	34	Non Specified - Dual Edge	0.25 Ám	10 Áin	Semi Bellows	125 °C	-40 C
EDAC Inc. 857-068-500-208	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Solder Eyelet(s)	Copper Alloy	Black	2	Female	4-40 Flush Mount Threaded Insert Top Opening			3.96 mm	0.156 in	Gold	Dual	68 positions	34	Non Specified - Dual Edge	0.25 Ám	10 Áin	Semi Bellows	125 °C	-40 C

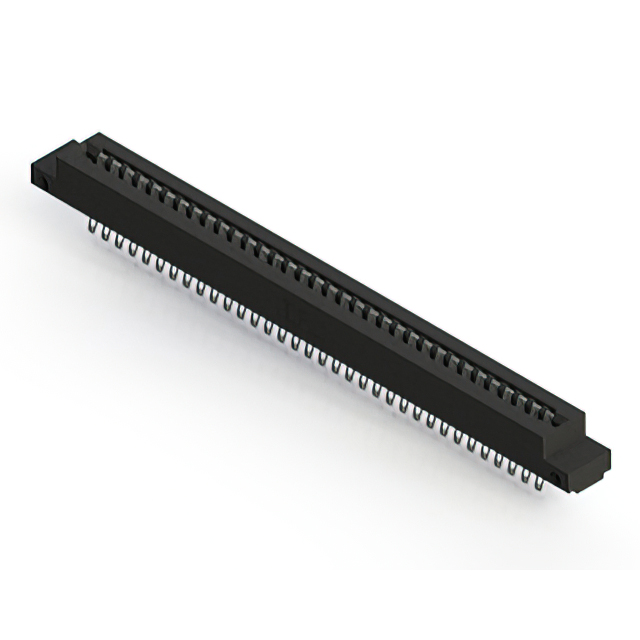

EDAC Inc. 857-068-455-212	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	Solder	Copper Alloy	Black	2	Female	Side Mount Opening Unthreaded	0.128 "	3.25 mm	3.96 mm	0.156 in	Tin	Dual	68 positions	34	Non Specified - Dual Edge			Semi Bellows	125 °C	-40 C	Card Extender

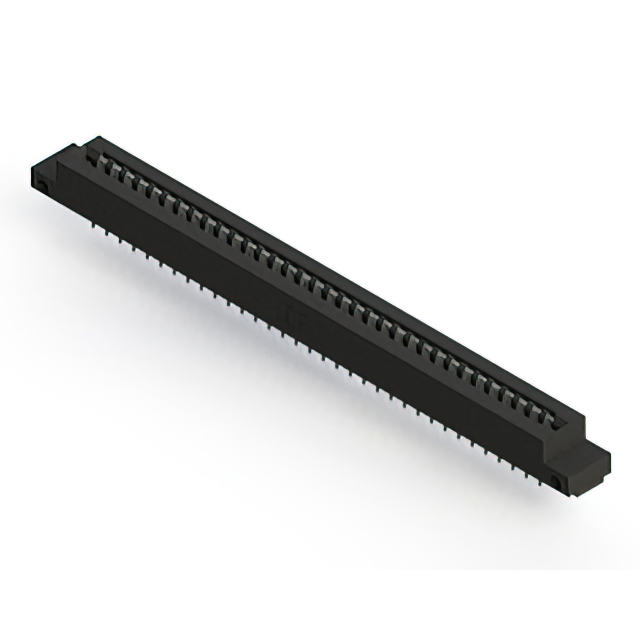

EDAC Inc. 857-068-456-212	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	Solder	Copper Alloy	Black	2	Female	Side Mount Opening Unthreaded	0.128 "	3.25 mm	3.96 mm	0.156 in	Tin	Dual	68 positions	34	Non Specified - Dual Edge			Semi Bellows	125 °C	-40 C	Card Extender
EDAC Inc. 857-068-540-207	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Wire Wrap	Copper Alloy	Black	2	Female	Flush Mount M3 Threaded Insert Top Opening			3.96 mm	0.156 in	Gold	Dual	68 positions	34	Non Specified - Dual Edge	0.25 Ám	10 Áin	Semi Bellows	125 °C	-40 C
EDAC Inc. 857-068-560-204	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	Solder	Copper Alloy	Black	2	Female	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	3.96 mm	0.156 in	Gold	Dual	68 positions	34	Non Specified - Dual Edge	0.25 Ám	10 Áin	Semi Bellows	125 °C	-40 C	Card Extender
EDAC Inc. 857-068-460-204	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	Solder	Copper Alloy	Black	2	Female	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	3.96 mm	0.156 in	Tin	Dual	68 positions	34	Non Specified - Dual Edge			Semi Bellows	125 °C	-40 C	Card Extender

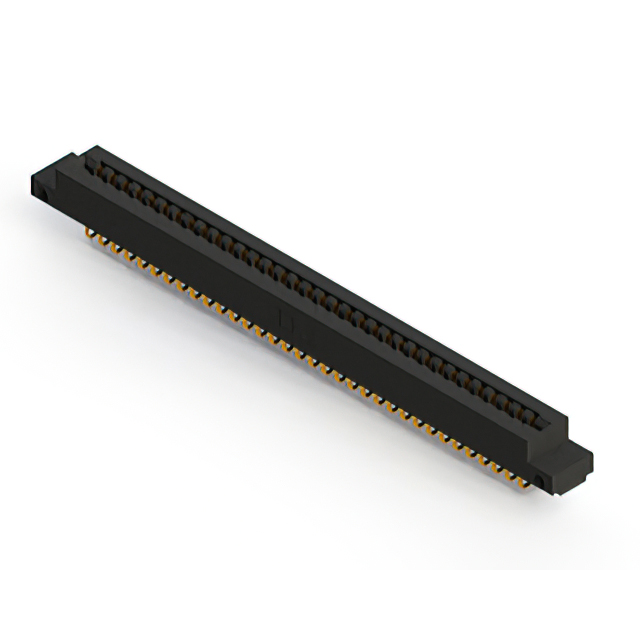

EDAC Inc. 857-068-559-212	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Right Angle Through Hole	Solder	Copper Alloy	Black	2	Female	Side Mount Opening Unthreaded	0.128 "	3.25 mm	3.96 mm	0.156 in	Gold	Single	68 positions	34	Non Specified - Dual Edge	0.25 Ám	10 Áin	Semi Bellows	125 °C	-40 C

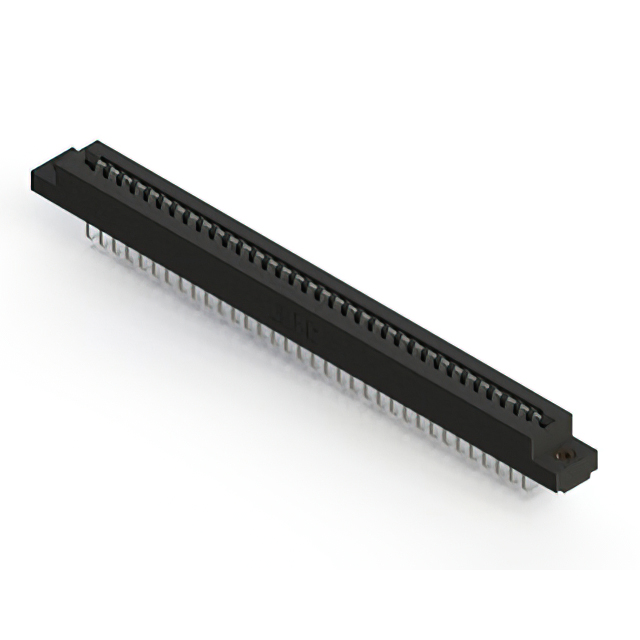

EDAC Inc. 857-068-458-207	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Right Angle Through Hole	Solder	Copper Alloy	Black	2	Female	Flush Mount M3 Threaded Insert Top Opening			3.96 mm	0.156 in	Tin	Single	68 positions	34	Non Specified - Dual Edge			Semi Bellows	125 °C	-40 C

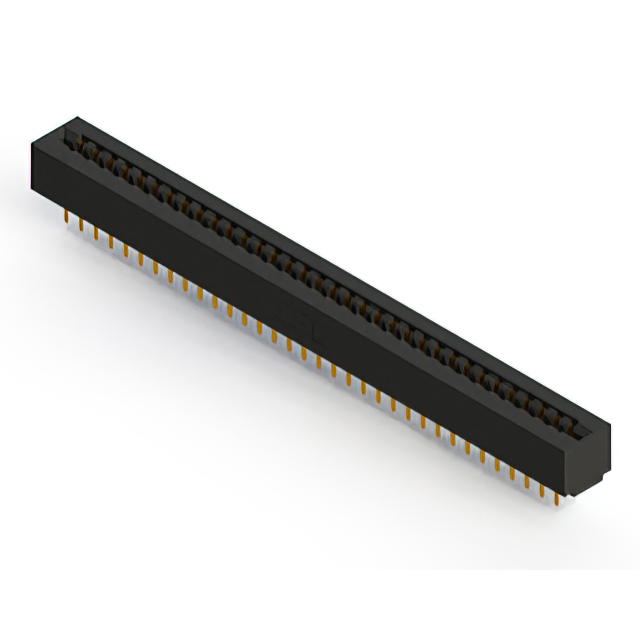

EDAC Inc. 857-068-520-201	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Solder	Copper Alloy	Black	2	Female				3.96 mm	0.156 in	Gold	Dual	68 positions	34	Non Specified - Dual Edge	0.25 Ám	10 Áin	Semi Bellows	125 °C	-40 C
