837-040 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 40POS 0.156

...

Part	Material - Insulation	Termination Rows [custom]	Mounting Type	Color	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Contact Material	Termination	Contact Type	Read Out	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Number of Positions	Number of Rows [custom]	Card Type	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Termination Rows	Number of Rows	Number of Positions/Bay/Row [custom]	Features
EDAC Inc. 837-040-500-803	Diallyl Phthalate (DAP)	2	Through Hole	Green	125 °C	-40 C	Female	Copper Alloy	Solder Eyelet(s)	Cantilever	Dual	0.25 Ám	10 Áin	20 Bay/Row	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	40	2	Non Specified - Dual Edge	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold
EDAC Inc. 837-040-542-612	Diallyl Phthalate (DAP)		Through Hole	Green	125 °C	-40 C	Female	Copper Alloy	Wire Wrap	Cantilever	Single	0.25 Ám	10 Áin		Side Mount Opening Unthreaded	0.128 "	3.25 mm	40		Non Specified - Single Edge	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	1	1	40
EDAC Inc. 837-040-541-204	Diallyl Phthalate (DAP)	2	Through Hole	Green	125 °C	-40 C	Female	Copper Alloy	Wire Wrap	Cantilever	Dual	0.25 Ám	10 Áin	20 Bay/Row	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	40	2	Non Specified - Dual Edge	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold

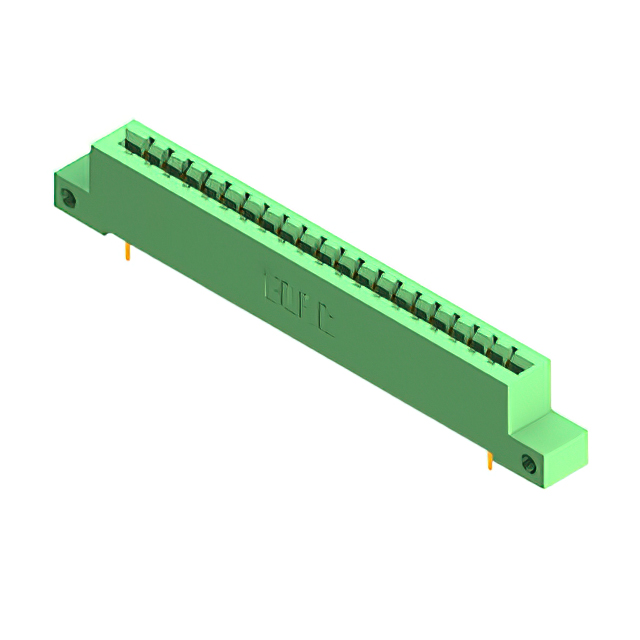

EDAC Inc. 837-040-523-212	Diallyl Phthalate (DAP)	2	Through Hole	Green	125 °C	-40 C	Female	Copper Alloy	Solder	Cantilever	Dual	0.25 Ám	10 Áin	20 Bay/Row	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	40	2	Non Specified - Dual Edge	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold
EDAC Inc. 837-040-560-207	Diallyl Phthalate (DAP)	2	Board Edge Straddle Mount	Green	125 °C	-40 C	Female	Copper Alloy	Solder	Cantilever	Dual	0.25 Ám	10 Áin	20 Bay/Row	Flush Mount M3 Threaded Insert Top Opening			40	2	Non Specified - Dual Edge	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold				Card Extender

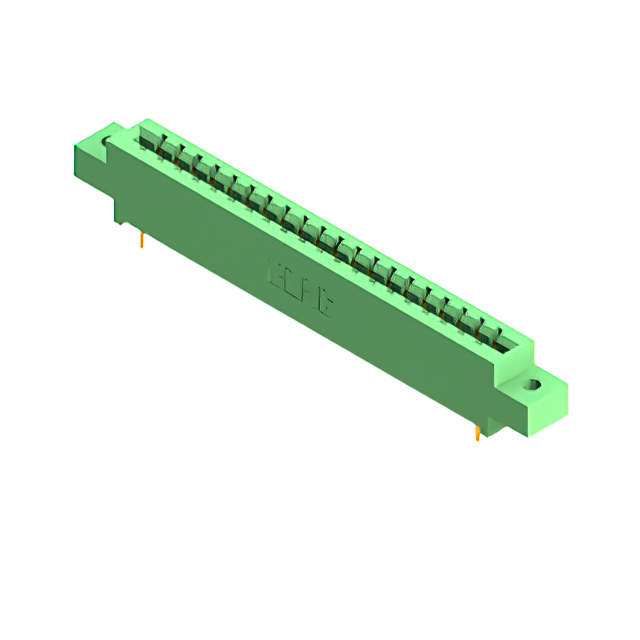

EDAC Inc. 837-040-542-802	Diallyl Phthalate (DAP)	2	Through Hole	Green	125 °C	-40 C	Female	Copper Alloy	Wire Wrap	Cantilever	Dual	0.25 Ám	10 Áin	20 Bay/Row		0.128 "	3.25 mm	40	2	Non Specified - Dual Edge	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold
EDAC Inc. 837-040-524-604	Diallyl Phthalate (DAP)		Through Hole	Green	125 °C	-40 C	Female	Copper Alloy	Solder	Cantilever	Single	0.25 Ám	10 Áin			0.156 "	3.96 mm	40		Non Specified - Single Edge	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	1	1	40

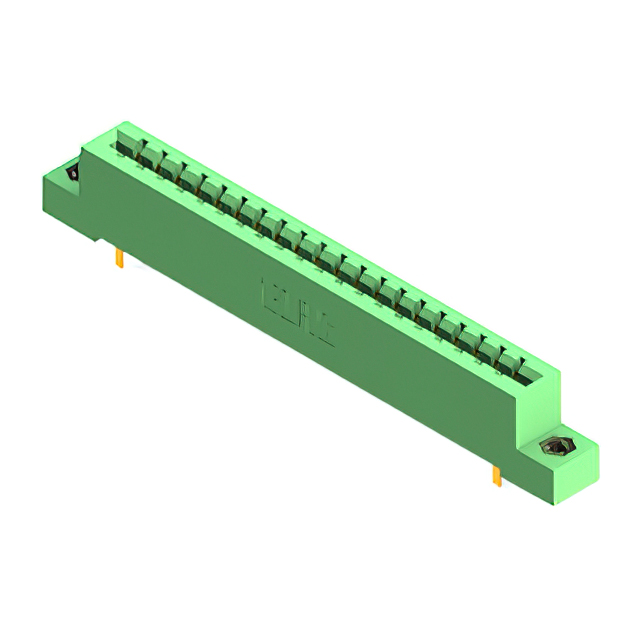

EDAC Inc. 837-040-500-208	Diallyl Phthalate (DAP)	2	Through Hole	Green	125 °C	-40 C	Female	Copper Alloy	Solder Eyelet(s)	Cantilever	Dual	0.25 Ám	10 Áin	20 Bay/Row	4-40 Flush Mount Threaded Insert Top Opening			40	2	Non Specified - Dual Edge	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold
EDAC Inc. 837-040-520-201	Diallyl Phthalate (DAP)	2	Through Hole	Green	125 °C	-40 C	Female	Copper Alloy	Solder	Cantilever	Dual	0.25 Ám	10 Áin	20 Bay/Row				40	2	Non Specified - Dual Edge	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold
EDAC Inc. 837-040-541-607	Diallyl Phthalate (DAP)		Through Hole	Green	125 °C	-40 C	Female	Copper Alloy	Wire Wrap	Cantilever	Single	0.25 Ám	10 Áin		M3 Threaded Insert Top Mount Opening			40		Non Specified - Single Edge	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	1	1	40
