ECA.3B Series
Manufacturer: LEMO
Beta
⌘K

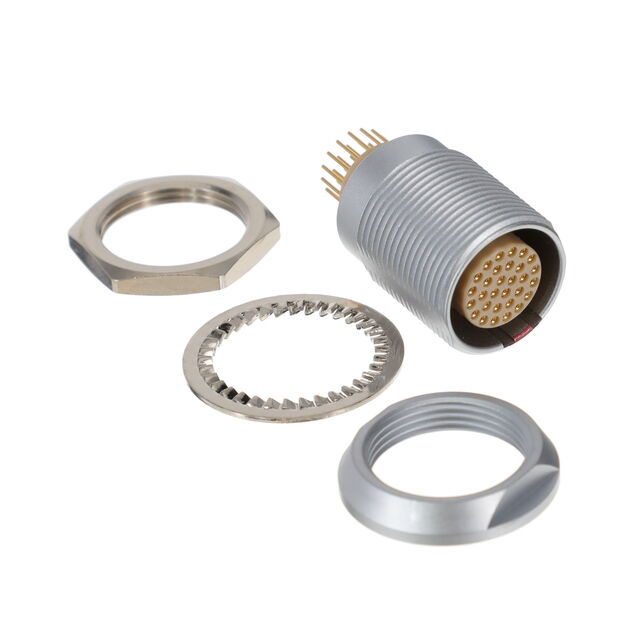

CONN RCPT FMALE 30POS GOLD SLDR
| Part | Mounting Type | Contact Material | Shielding | Material Flammability Rating | Connector Type | Current Rating (Amps) | Ingress Protection | Primary Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Insert Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Feature | Fastening Type | Shell Finish | Orientation | Color | Shell Size - Insert | Shell Material | Contact Finish - Mating | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LEMO | Panel Mount Through Hole | Bronze | Shielded | UL94 V-0 | Receptacle Female Sockets | 3.5 A | IP50 - Dust Protected | Metal | -55 C | 250 °C | 30 | Polyetheretherketone (PEEK) | 1.5 Ám | 59 Áin | Front and Rear Side Nut | Push-Pull | Chrome | A | Silver | 330 | Brass | Gold | Solder |
LEMO | Panel Mount | Bronze | Shielded | UL94 V-0 | Receptacle Female Sockets | 3.5 A | IP50 - Dust Protected | Metal | -55 C | 250 °C | 30 | Polyetheretherketone (PEEK) | 1.5 Ám | 59 Áin | Front and Rear Side Nut | Push-Pull | Chrome | A | Silver | 330 | Brass | Gold | |
LEMO | Panel Mount | Bronze | Shielded | UL94 V-0 | Receptacle Female Sockets | 4 A | IP50 - Dust Protected | Metal | -55 C | 250 °C | 24 | Polyetheretherketone (PEEK) | 1.5 Ám | 59 Áin | Front and Rear Side Nut | Push-Pull | Chrome | A | Silver | 324 | Brass | Gold | Crimp |
