2314811 Series

Catalog

14P,2MM,B-B,REC,DRVT,2.0,SN,TB W

Part	Material Flammability Rating	Number of Positions Loaded	Pitch - Mating [x]	Pitch - Mating [x]	Connector Type	Insulation Height	Insulation Height	Contact Type	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Insulation Material	Contact Shape	Fastening Type	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Current Rating (Amps)	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Number of Positions	Voltage Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Contact Material	Features	Number of Positions

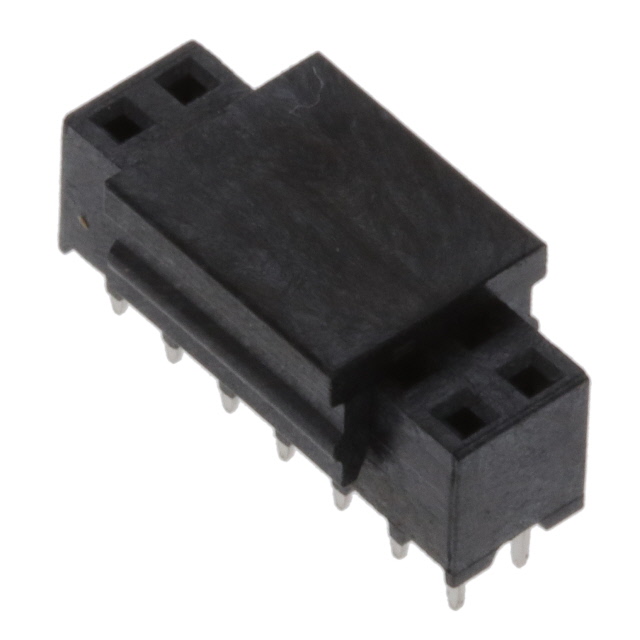

TE Connectivity Raychem Cable Protection 1-2314811-4	UL94 V-0	All	0.079 in	2 mm	Receptacle	0.177 in	4.5 mm	Female Socket	0.079 "	2 mm	Tin	Liquid Crystal Polymer (LCP)	Square	Push-Pull	Through Hole	118.1 µin	3 µm	Black	2 A	0.079 in	2 mm	-40 °C	105 ░C	Solder	14	125 VDC	3 µm	118.1 µin	2	Phosphor Bronze	Pick and Place

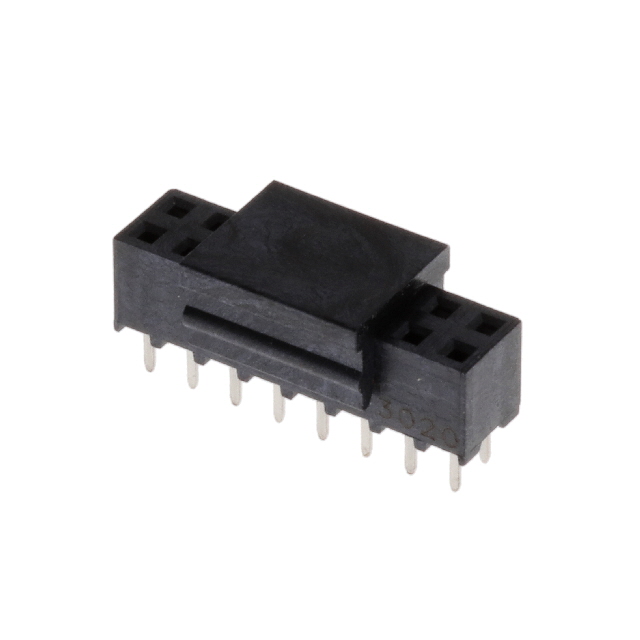

TE Connectivity Raychem Cable Protection 1-2314811-6	UL94 V-0	All	0.079 in	2 mm	Receptacle	0.177 in	4.5 mm	Female Socket	0.079 "	2 mm	Tin	Liquid Crystal Polymer (LCP)	Square	Push-Pull	Through Hole	118.1 µin	3 µm	Black	2 A	0.079 in	2 mm	-40 °C	105 ░C	Solder		125 VDC	0.3 µm	12 µin	2	Phosphor Bronze	Pick and Place	16
