DS90UB953A-Q1 Series

2 MP MIPI® CSI-2 FPD-Link III serializer for 2MP/60fps cameras & radar

Catalog

2 MP MIPI® CSI-2 FPD-Link III serializer for 2MP/60fps cameras & radar

Part	Output Type	Qualification	Function	Mounting Type	Number of Outputs	Data Rate	Supplier Device Package	Input Type	Grade	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Inputs	Operating Temperature [Min]	Operating Temperature [Max]	Type	Contents	Supplied Contents

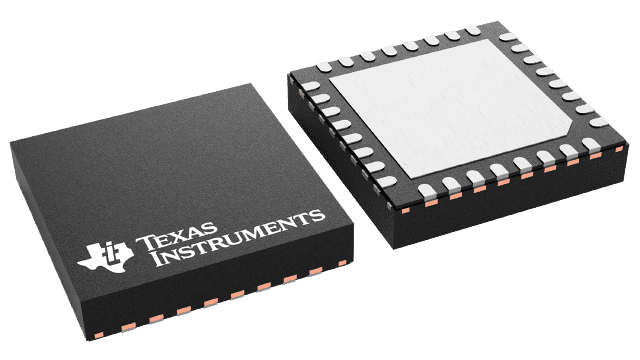

Texas Instruments DS90UB953TRHBRQ1	FPD-Link III LVDS	AEC-Q100	Serializer	Surface Mount Wettable Flank	1	4.16 Gbps	32-VQFN (5x5)	CSI-2 MIPI	Automotive	32-VFQFN Exposed Pad	1.89 V	1.71 V	4	-40 °C	105 ░C
Texas Instruments DS90UB953ATRHBTQ1	FPD-Link III LVDS	AEC-Q100	Serializer	Surface Mount Wettable Flank	1	4.16 Gbps	32-VQFN (5x5)	CSI-2 MIPI	Automotive	32-VFQFN Exposed Pad	1.89 V	1.71 V	4	-40 °C	125 °C
Texas Instruments DS90UB953-Q1EVM			Serializer													Interface	Board(s)	Board(s)

Catalog

2 MP MIPI® CSI-2 FPD-Link III serializer for 2MP/60fps cameras & radar

Key Features

• AEC-Q100 (Grade 2) qualified for automotive applications:Device temperature: –40°C to +105°C ambient operating temperatureISO 10605 and IEC 61000-4-2 ESD compliantPower-over-Coax (PoC) compatible transceiver4.16Gbps grade serializer supports high-speed sensors including full HD 1080p 2.3MP 60fps and 4MP 30fps imagersD-PHY v1.2 and CSI-2 v1.3 compliant system interfaceUp to 4 data lanes at 832Mbps per each laneSupports up to four virtual channelsPrecision multi-camera clocking and synchronizationFlexible programmable output clock generatorAdvanced data protection and diagnostics including CRC data protection, sensor data integrity check, I2C write protection, voltage and temperature measurement, programmable alarm, and line fault detectionSupports Single-ended coaxial or shielded-twisted-pair (STP) cableUltra-low latency bidirectional I2C and GPIO control channel enables ISP control from ECUSingle 1.8V power supplyLow (0.28W typical) power consumptionFunctional Safety-CapableDocumentation available to aid ISO 26262 system designCompatible with DS90UB954-Q1, DS90UB964-Q1, DS90UB962-Q1, DS90UB936-Q1, DS90UB960-Q1, DS90UB934-Q1, and DS90UB914A-Q1 deserializersPin compatible with FPD-Link IV: DS90UB971-Q1 and FPD-Link III: DS90UB935-Q1, DS90UB953A-Q1, DS90UB951-Q1 serializersSmall 5mm × 5mm VQFN package and PoC solution size for compact camera module designsAEC-Q100 (Grade 2) qualified for automotive applications:Device temperature: –40°C to +105°C ambient operating temperatureISO 10605 and IEC 61000-4-2 ESD compliantPower-over-Coax (PoC) compatible transceiver4.16Gbps grade serializer supports high-speed sensors including full HD 1080p 2.3MP 60fps and 4MP 30fps imagersD-PHY v1.2 and CSI-2 v1.3 compliant system interfaceUp to 4 data lanes at 832Mbps per each laneSupports up to four virtual channelsPrecision multi-camera clocking and synchronizationFlexible programmable output clock generatorAdvanced data protection and diagnostics including CRC data protection, sensor data integrity check, I2C write protection, voltage and temperature measurement, programmable alarm, and line fault detectionSupports Single-ended coaxial or shielded-twisted-pair (STP) cableUltra-low latency bidirectional I2C and GPIO control channel enables ISP control from ECUSingle 1.8V power supplyLow (0.28W typical) power consumptionFunctional Safety-CapableDocumentation available to aid ISO 26262 system designCompatible with DS90UB954-Q1, DS90UB964-Q1, DS90UB962-Q1, DS90UB936-Q1, DS90UB960-Q1, DS90UB934-Q1, and DS90UB914A-Q1 deserializersPin compatible with FPD-Link IV: DS90UB971-Q1 and FPD-Link III: DS90UB935-Q1, DS90UB953A-Q1, DS90UB951-Q1 serializersSmall 5mm × 5mm VQFN package and PoC solution size for compact camera module designs

Description

The DS90UB953A-Q1 serializer is part of TI’s FPD-Link III device family designed to support high-speed raw data sensors including 2.3MP imagers at 60fps and as well as 4MP, 30fps cameras, satellite RADAR, LIDAR, and Time-of-Flight (ToF) sensors. The device is fully AEC-Q100 (Grade 1) qualified with a –40°C to 125°C wide temperature range. The higher temperature enables more compact/flexible sensor module design for any small camera application. The chip delivers a 4.16Gbps forward channel and an ultra-low latency, 50Mbps bidirectional control channel and supports power over a single coax (PoC) or STP cable. The DS90UB953A-Q1 features advanced data protection and diagnostic features to support ADAS and autonomous driving. Together with a companion deserializer, the DS90UB953A-Q1 delivers precise multi-camera sensor clock and sensor synchronization. The DS90UB953A-Q1 serializer is part of TI’s FPD-Link III device family designed to support high-speed raw data sensors including 2.3MP imagers at 60fps and as well as 4MP, 30fps cameras, satellite RADAR, LIDAR, and Time-of-Flight (ToF) sensors. The device is fully AEC-Q100 (Grade 1) qualified with a –40°C to 125°C wide temperature range. The higher temperature enables more compact/flexible sensor module design for any small camera application. The chip delivers a 4.16Gbps forward channel and an ultra-low latency, 50Mbps bidirectional control channel and supports power over a single coax (PoC) or STP cable. The DS90UB953A-Q1 features advanced data protection and diagnostic features to support ADAS and autonomous driving. Together with a companion deserializer, the DS90UB953A-Q1 delivers precise multi-camera sensor clock and sensor synchronization.
