R14328 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

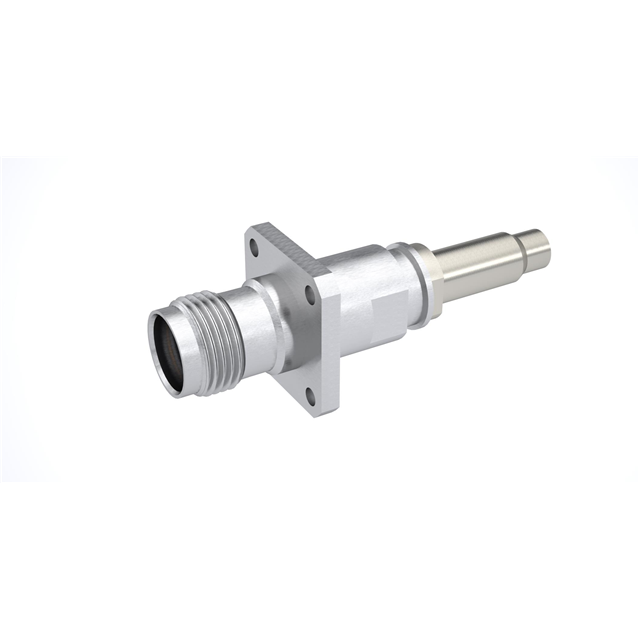

TNC / STRAIGHT SQUARE FLANGE JAC
| Part | Center Contact Plating | Insertion Loss | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Dielectric Material | Voltage Rating | Body Material | Housing Color | Mounting Type | Number of Ports | Impedance | Connector Type | Fastening Type | Mounting Feature | Frequency - Max [Max] | Connector Style | Shield Termination | Center Contact Material | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | 0.18 dB | 105 ░C | -65 ░C | 500 | Polytetrafluoroethylene (PTFE) | 500 V | Stainless Steel | Silver | Panel Mount | 1 | 50 Ohms | Female Socket Jack | Threaded | Flange | 11 GHz | TNC | Crimp | Beryllium Copper | Crimp |
