HM2S30 Series

Catalog

CONN RECEPT 55POS 2MM PRESS-FIT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Current Rating (Amps)	Number of Positions	Contact Finish	Termination	Pitch [x]	Pitch [x]	Number of Positions Loaded	Connector Type	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Number of Rows	Features
Amphenol ICC (FCI) HM2S30PE5100L9LF	-55 C	125 °C	750 Vrms	1.5 A	55	Gold	Press-Fit	0.079 in	2 mm	All	Receptacle Female Sockets	Through Hole	1.3 Ám	51.2 Áin	C 11	5
Amphenol ICC (FCI) HM2S30PE5101AALF	-55 C	125 °C	750 Vrms	1.5 A	55	Gold	Press-Fit	0.079 in	2 mm	All	Receptacle Female Sockets	Through Hole	0.76 Ám	30 Áin	C 11	5
Amphenol ICC (FCI) HM2S30PE5100N9	-55 C	125 °C	500 V	1.5 A	55	Gold	Press-Fit	0.079 in	2 mm	All	Receptacle Female Sockets	Through Hole	0.76 Ám	30 Áin	C 11	5

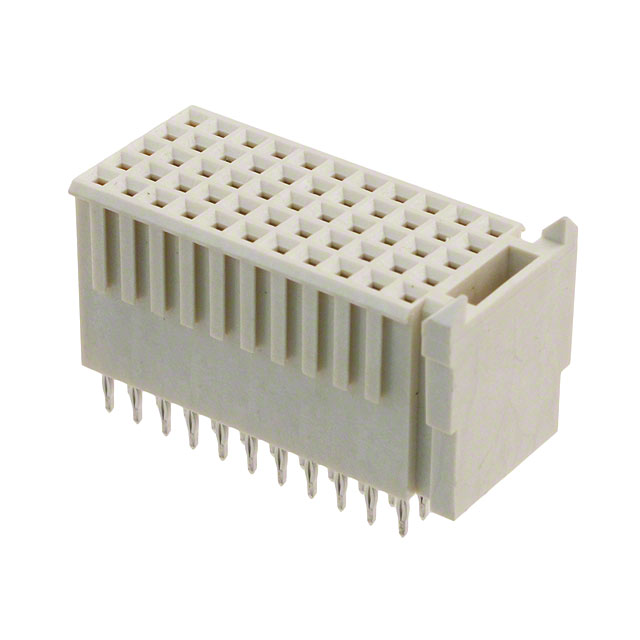

Amphenol ICC (FCI) HM2S30PE5100N9LF	-55 C	125 °C	750 Vrms	1.5 A	55	Gold	Press-Fit	0.079 in	2 mm	All	Receptacle Female Sockets	Through Hole	0.76 Ám	30 Áin	C 11	5
Amphenol ICC (FCI) HM2S30PK5100GF	-55 C	125 °C		1.5 A		Gold	Press-Fit	0.079 in	2 mm		Receptacle Female Sockets	Through Hole	0.76 Ám	30 Áin	C 11
Amphenol ICC (FCI) HM2S30PE5101L9LF	-55 C	125 °C	750 Vrms	1.5 A	55	Gold	Press-Fit	0.079 in	2 mm	All	Receptacle Female Sockets	Through Hole	1.3 Ám	51.2 Áin	C 11	5
Amphenol ICC (FCI) HM2S30PE5101N9	-55 C	125 °C	500 V	1.5 A	55	Gold	Press-Fit	0.079 in	2 mm	All	Receptacle Female Sockets	Through Hole	0.76 Ám	30 Áin	C 11	5	Upper and Lower Shield
Amphenol ICC (FCI) HM2S30PE51N1N9LF	-55 C	125 °C	750 Vrms	1.5 A	55	Gold	Press-Fit	0.079 in	2 mm	All	Receptacle Female Sockets	Through Hole	0.76 Ám	30 Áin	C 11	5	Upper and Lower Shield
