PTC06 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER R/A 12POS 2.54MM

Part	Insulation Material	Contact Length - Post	Contact Length - Post	Termination	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Pitch - Mating	Pitch - Mating	Insulation Height [z]	Insulation Height [z]	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Connector Type	Number of Positions Loaded	Current Rating (Amps)	Style	Contact Type	Contact Finish - Post	Material Flammability Rating	Shrouding	Contact Length - Mating	Contact Length - Mating	Mounting Type	Number of Rows	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length	Overall Contact Length	Overall Contact Length [x]	Overall Contact Length [x]
Sullins Connector Solutions PTC06DGBN	Polyester Thermoplastic	5.58 mm	0.22 in	Solder	Square	100 çin	2.54 çm	Push-Pull	12	2.54 µm	100 µin	Copper Alloy	0.1 "	2.54 mm	6.1 mm	0.24 in	Black	0.1 in	2.54 mm	2	Header	All	3 A	Board to Board Cable	Male Pin	Tin	UL94 V-0	Unshrouded	8.08 mm	0.318 in	Right Angle Through Hole
Sullins Connector Solutions PTC06SGAN	Polyester Thermoplastic	3.05 mm	0.12 in	Solder	Square	100 çin	2.54 çm	Push-Pull	6	2.54 µm	100 µin	Copper Alloy	0.1 "	2.54 mm			Black				Header	All	3 A	Board to Board Cable	Male Pin	Tin	UL94 V-0	Unshrouded	8.08 mm	0.318 in	Right Angle Through Hole	1	3.56 mm	0.14 in
Sullins Connector Solutions PTC06DBAN	Polyester Thermoplastic	3.05 mm	0.12 in	Solder	Square	100 çin	2.54 çm	Push-Pull	12	2.54 µm	100 µin	Copper Alloy	0.1 "	2.54 mm	6.1 mm	0.24 in	Black	0.1 in	2.54 mm	2	Header	All	3 A	Board to Board Cable	Male Pin	Tin	UL94 V-0	Unshrouded	5.84 mm	0.23 in	Right Angle Through Hole
Sullins Connector Solutions PTC06DACN	Polyester Thermoplastic	8.13 mm	0.32 in	Solder	Square	100 çin	2.54 çm	Push-Pull	12	2.54 µm	100 µin	Copper Alloy	0.1 "	2.54 mm			Black	0.1 in	2.54 mm	2	Header	All	3 A	Board to Board Cable	Male Pin	Tin	UL94 V-0	Unshrouded	5.84 mm	0.23 in	Through Hole		2.54 mm	0.1 in	16.51 mm	0.65 in
Sullins Connector Solutions PTC06DFCN	Polyester Thermoplastic	8.13 mm	0.32 in	Solder	Square	100 çin	2.54 çm	Push-Pull	12	2.54 µm	100 µin	Copper Alloy	0.1 "	2.54 mm			Black	0.1 in	2.54 mm	2	Header	All	3 A	Board to Board Cable	Male Pin	Tin	UL94 V-0	Unshrouded	8.08 mm	0.318 in	Through Hole		2.54 mm	0.1 in	18.75 mm		0.738 in
Sullins Connector Solutions PTC06DAEN	Polyester Thermoplastic	13.21 mm	0.52 in	Solder	Square	100 çin	2.54 çm	Push-Pull	12	2.54 µm	100 µin	Copper Alloy	0.1 "	2.54 mm			Black	0.1 in	2.54 mm	2	Header	All	3 A	Board to Board Cable	Male Pin	Tin	UL94 V-0	Unshrouded	5.84 mm	0.23 in	Through Hole		2.54 mm	0.1 in	21.59 mm	0.85 in
Sullins Connector Solutions PTC06DBCN	Polyester Thermoplastic	8.13 mm	0.32 in	Solder	Square	100 çin	2.54 çm	Push-Pull	12	2.54 µm	100 µin	Copper Alloy	0.1 "	2.54 mm	6.1 mm	0.24 in	Black	0.1 in	2.54 mm	2	Header	All	3 A	Board to Board Cable	Male Pin	Tin	UL94 V-0	Unshrouded	5.84 mm	0.23 in	Right Angle Through Hole
Sullins Connector Solutions PTC06SAEN	Polyester Thermoplastic	13.21 mm	0.52 in	Solder	Square	100 çin	2.54 çm	Push-Pull	6	2.54 µm	100 µin	Copper Alloy	0.1 "	2.54 mm			Black				Header	All	3 A	Board to Board Cable	Male Pin	Tin	UL94 V-0	Unshrouded	5.84 mm	0.23 in	Through Hole	1	2.54 mm	0.1 in	21.59 mm	0.85 in
Sullins Connector Solutions PTC06SAAN	Polyester Thermoplastic	3.05 mm	0.12 in	Solder	Square	100 çin	2.54 çm	Push-Pull	6	2.54 µm	100 µin	Copper Alloy	0.1 "	2.54 mm			Black				Header	All	3 A	Board to Board Cable	Male Pin	Tin	UL94 V-0	Unshrouded	5.84 mm	0.23 in	Through Hole	1	2.54 mm	0.1 in				11.43 mm	0.45 in

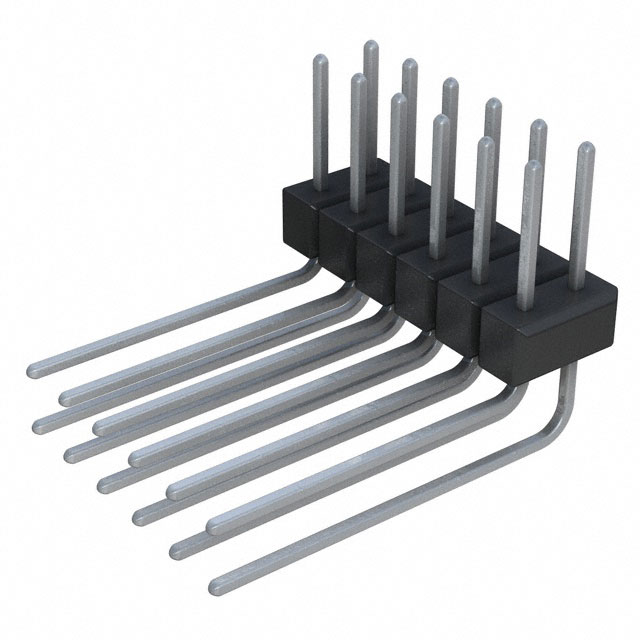

Sullins Connector Solutions PTC06DBEN	Polyester Thermoplastic	13.21 mm	0.52 in	Solder	Square	100 çin	2.54 çm	Push-Pull	12	2.54 µm	100 µin	Copper Alloy	0.1 "	2.54 mm	6.1 mm	0.24 in	Black	0.1 in	2.54 mm	2	Header	All	3 A	Board to Board Cable	Male Pin	Tin	UL94 V-0	Unshrouded	5.84 mm	0.23 in	Right Angle Through Hole
