60.20 Series

Catalog

CONTACT SKT SZ 1.0MM CRIMP GOLD

Part	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Contact Type	Contact Material	Contact Termination	Contact Size	Type	Contact Finish	Features	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]

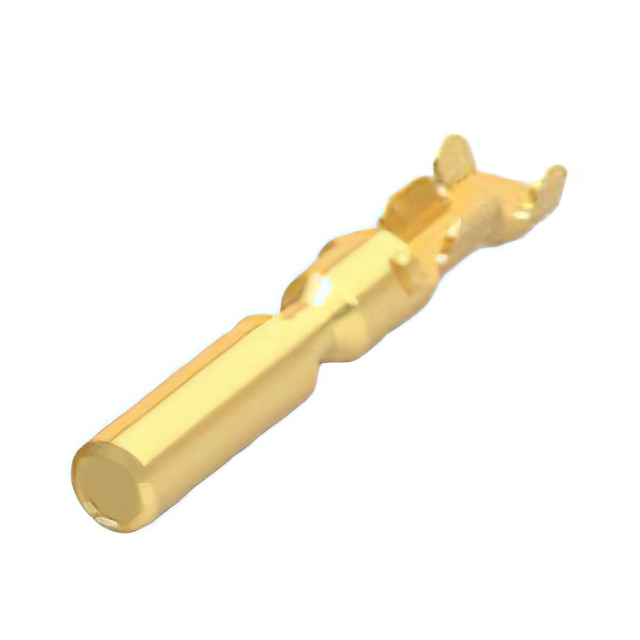

TE Intercontec 60-0200-080-P00	0.2 mm˛	0.52 mm˛	Socket	Phosphor Bronze	Crimp	1 mm	Power Machined	Gold	Insulation Support	0.2 mm²	0.52 mm²

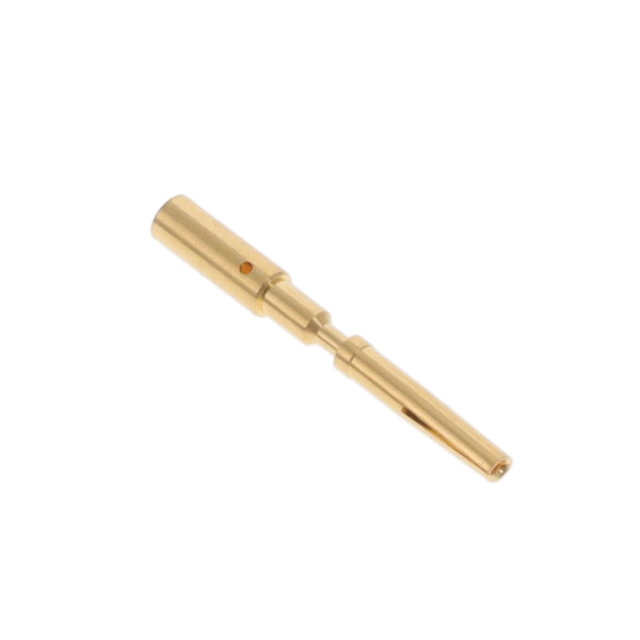

TE Intercontec 60-0205-011-P00	0.14 mm˛	0.5 mm˛	Socket	Brass	Crimp	0.6 mm	Power Machined	Gold		0.14 mm²	0.5 mm²
TE Intercontec 60-0201-080-P00	0.75 mm˛	1 mm˛	Socket	Phosphor Bronze	Crimp	1 mm	Power Machined	Gold	Insulation Support	0.75 mm²	1 mm²

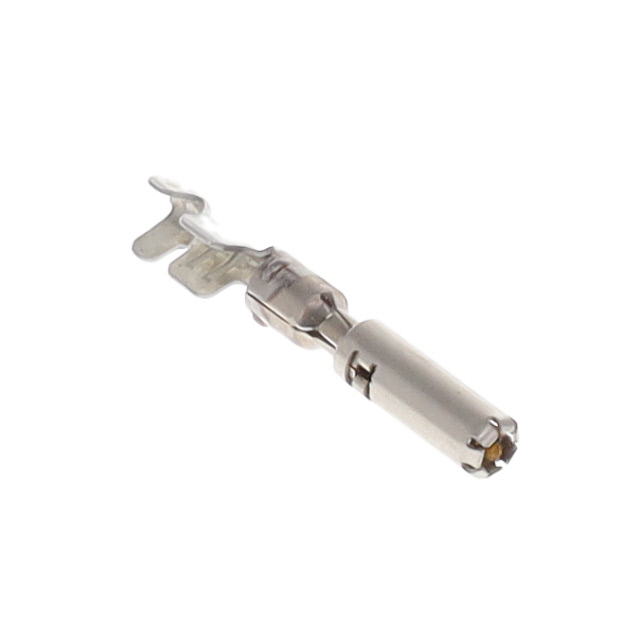

TE Intercontec 60.200.80.023			Socket			1 mm

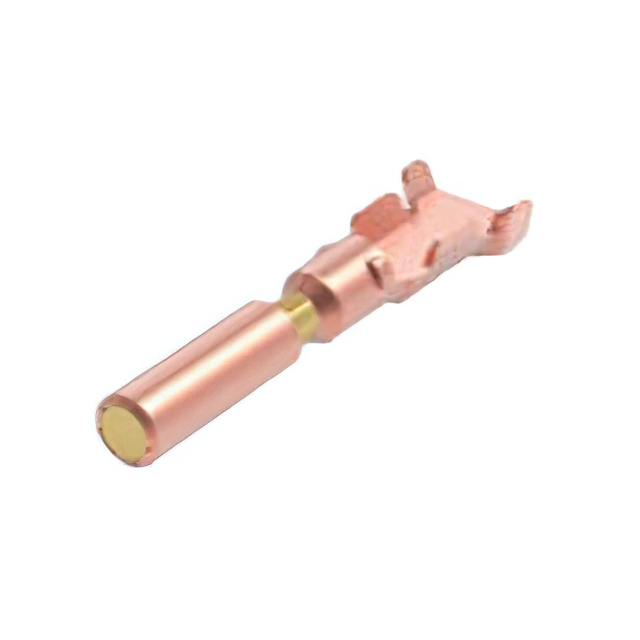

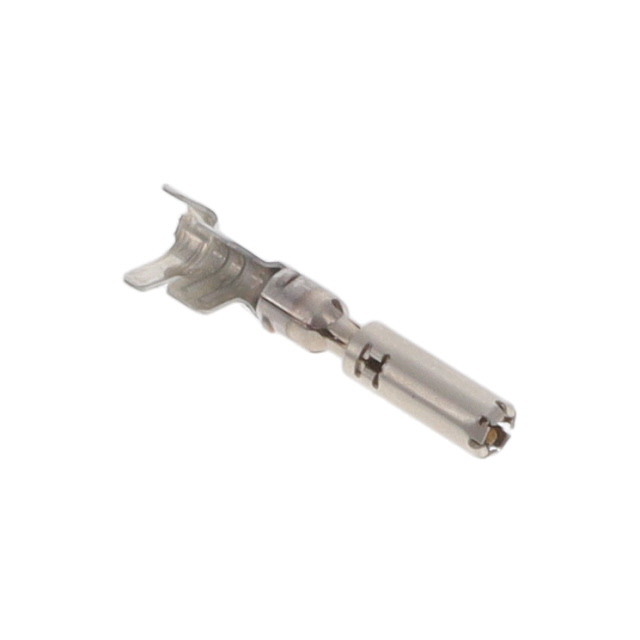

TE Intercontec 60.201.80.024			Socket			1 mm
