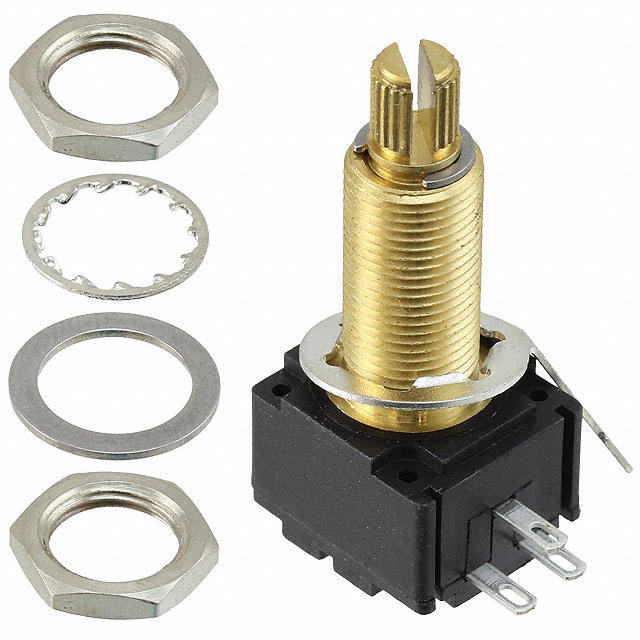

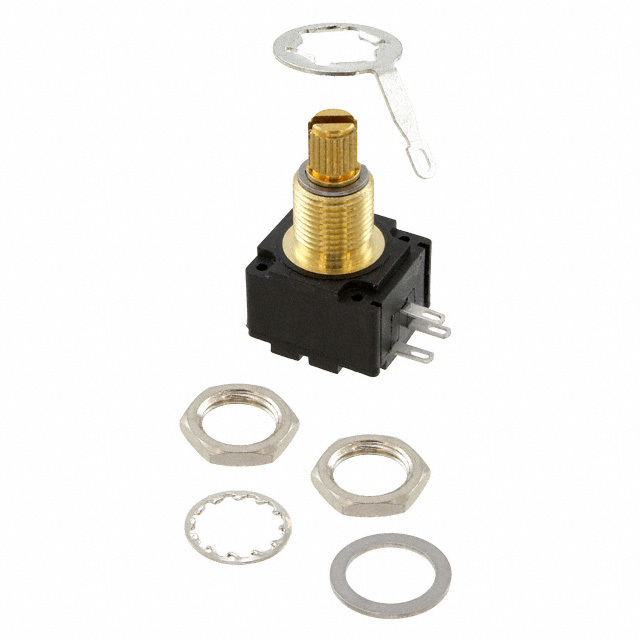

95Z1D Series
Manufacturer: Bourns Inc.
Beta
⌘K
POT 500K OHM 1/4W PLASTIC LINEAR
| Part | Bushing Thread | Size - Body [x] | Size - Body [x] | Size - Body [y] | Size - Body [y] | Adjustment Type | Termination Style | Power (Watts) | Power (Watts) | Resistance (Ohms) | Built in Switch | Temperature Coefficient | Number of Turns | Resistive Material | Rotation | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Taper | Mounting Type | Number of Gangs | Actuator Type | Actuator Length [x] | Actuator Length [x] | Tolerance | Resistance (Ohms) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 3/8-32 | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | User Defined | Solder Lug | 0.25 W | 0.25 W | 500 kOhms | None | 1000 ppm/°C | 1 | Conductive Plastic | 300 ░ | 0.235 in | 5.97 mm | Linear | Panel Mount | 1 | Knurled and Slotted | 26.82 mm | 1.056 in | 20 % | |
 Bourns Inc. | 3/8-32 | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | User Defined | Solder Lug | 0.25 W | 0.25 W | None | 1000 ppm/°C | 1 | Conductive Plastic | 300 ░ | 0.235 in | 5.97 mm | Logarithmic | Panel Mount | 1 | Knurled and Slotted | 26.82 mm | 1.056 in | 20 % | 50 kOhms | |
 Bourns Inc. | 3/8-32 | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | User Defined | Solder Lug | 0.25 W | 0.25 W | 250000 Ohms | None | 1000 ppm/°C | 1 | Conductive Plastic | 300 ░ | 0.235 in | 5.97 mm | Logarithmic | Panel Mount | 1 | Knurled and Slotted | 26.82 mm | 1.056 in | 20 % |
