WM072 Series

Manufacturer: Serpac

Catalog

BOX ABS BLACK 6.88"L X 4.88"W

Part	Area (L x W)	Area (L x W)	Weight	Weight	Container Type	Design	Thickness	Thickness	Material	Ratings	Color	Height [z]	Height [z]	Material Flammability Rating	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]

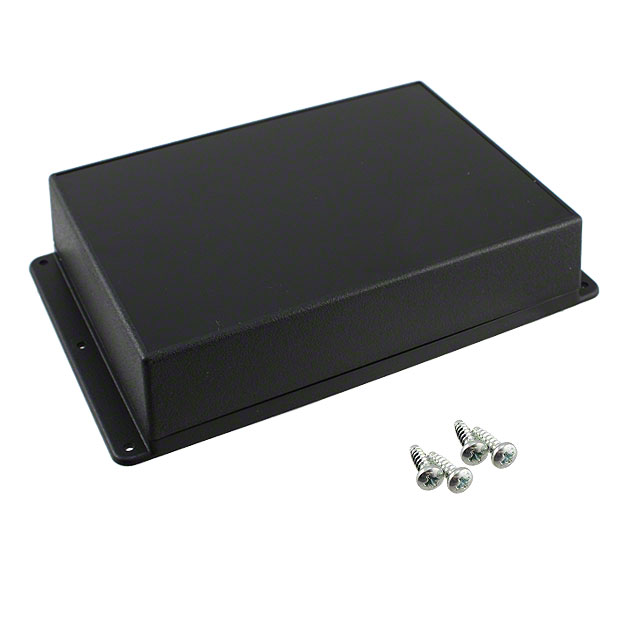

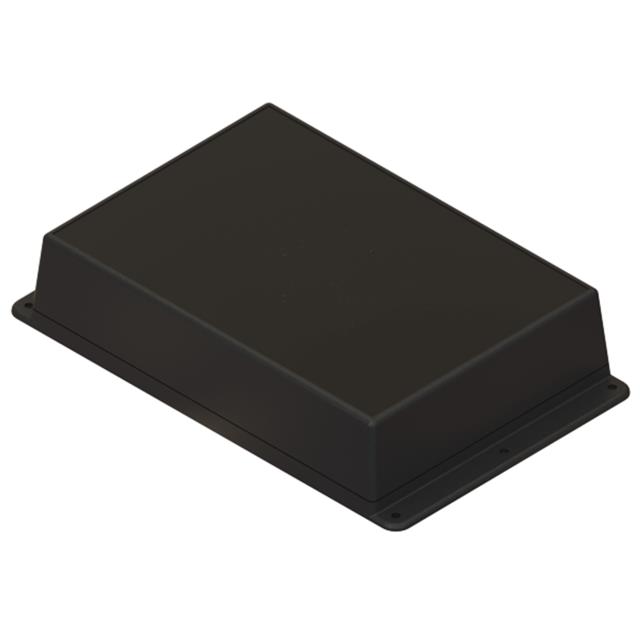

Serpac WM072I,BK	33.6 in²	217 cm²	185.97 g	0.41 lb	Box	Cover Included	2.54 mm	0.1 in	ABS Plastic	IP40 NEMA 1	Black	1.6 "	40.64 mm	UL94 HB	Mounting Flange PCB Supports Wall Mount	6.88 in	123.95 mm	174.75 mm	4.88 in

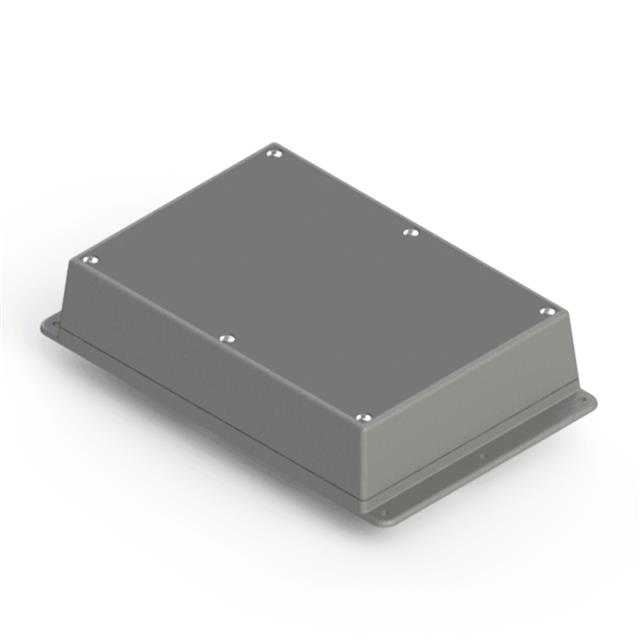

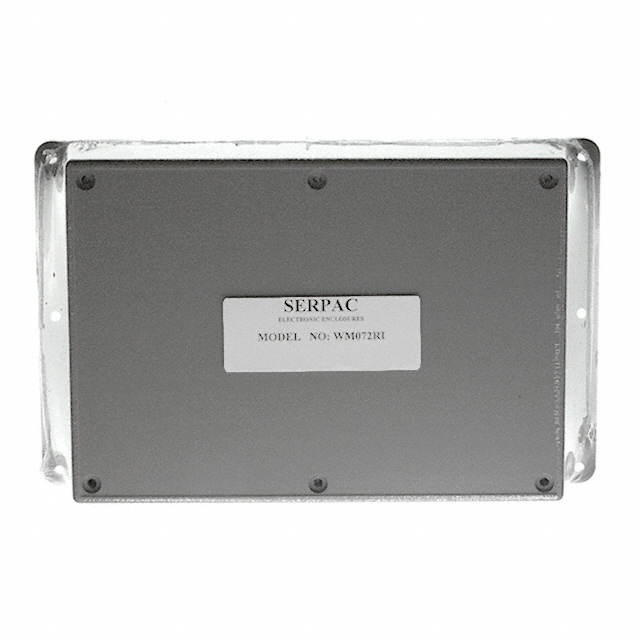

Serpac WM072RI,GY	33.6 in²	217 cm²	185.97 g	0.41 lb	Box	Cover Included	2.54 mm	0.1 in	ABS Plastic	IP40 NEMA 1	Gray	1.6 "	40.64 mm	UL94 HB	Front Access Mounting Flange PCB Supports Wall Mount	6.88 in	123.95 mm	174.75 mm	4.88 in

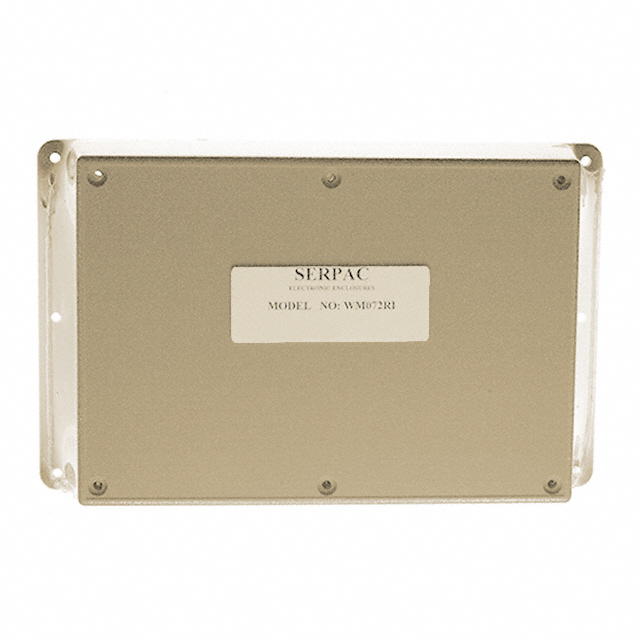

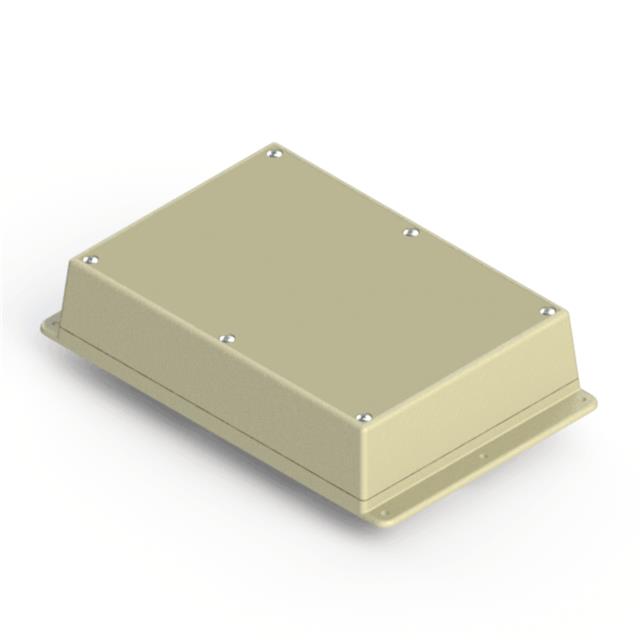

Serpac WM072RI,AL	33.6 in²	217 cm²	185.97 g	0.41 lb	Box	Cover Included	2.54 mm	0.1 in	ABS Plastic	IP40 NEMA 1	Almond	1.6 "	40.64 mm	UL94 HB	Front Access Mounting Flange PCB Supports Wall Mount	6.88 in	123.95 mm	174.75 mm	4.88 in

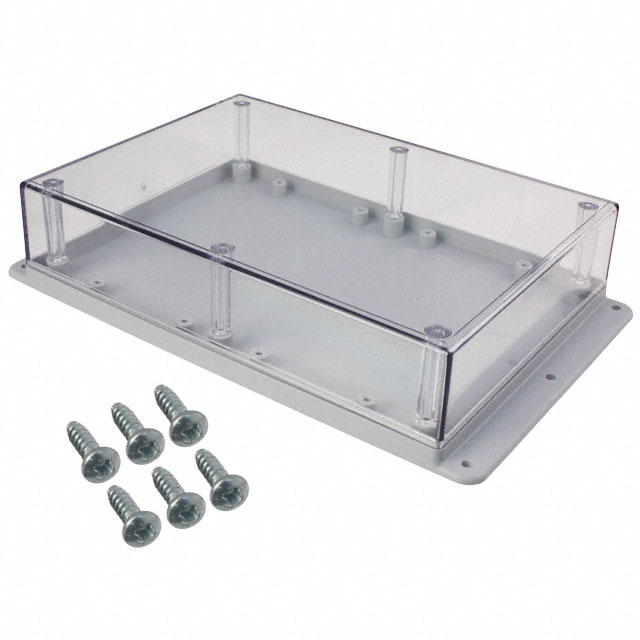

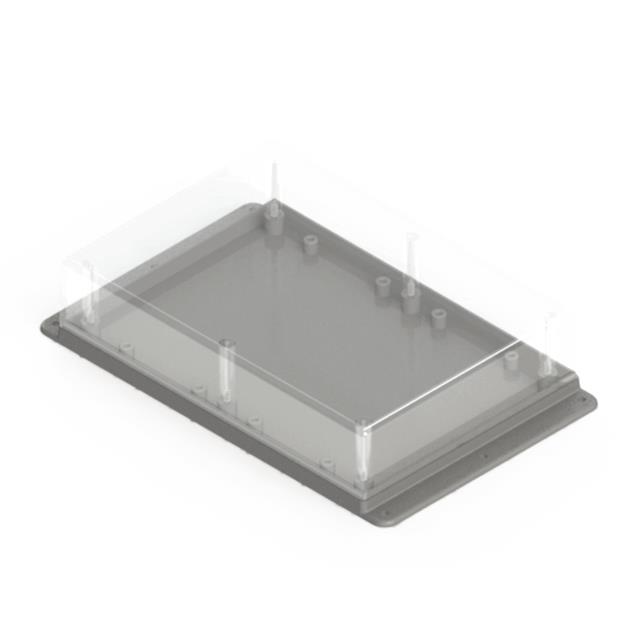

Serpac WM072C,GY	33.6 in²	217 cm²	185.97 g	0.41 lb	Box	Cover Included	2.54 mm	0.1 in	Plastic Polycarbonate	IP40 NEMA 1	Clear Cover/Door Gray	1.6 "	40.64 mm		Mounting Flange PCB Supports Wall Mount	6.88 in	123.95 mm	174.75 mm	4.88 in

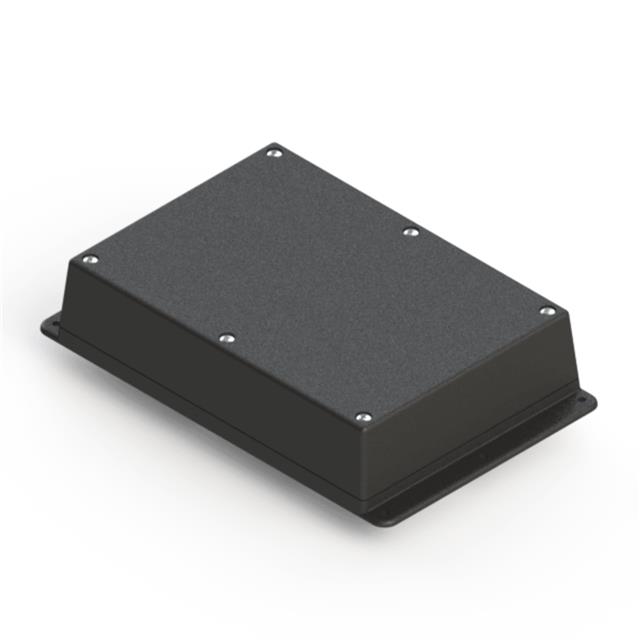

Serpac WM072R,BK	33.6 in²	217 cm²	185.97 g	0.41 lb	Box	Cover Included	2.54 mm	0.1 in	ABS Plastic	IP40 NEMA 1	Black	1.6 "	40.64 mm	UL94 HB	Front Access Mounting Flange PCB Supports Wall Mount	6.88 in	123.95 mm	174.75 mm	4.88 in

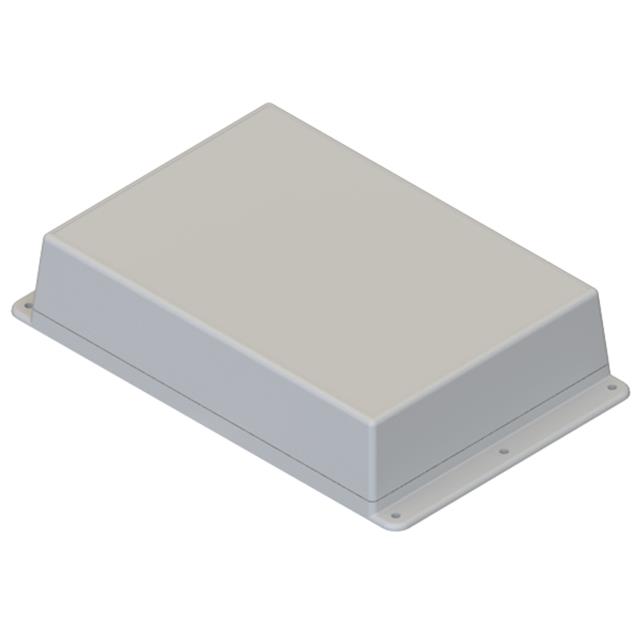

Serpac WM072I,GY	33.6 in²	217 cm²	185.97 g	0.41 lb	Box	Cover Included	2.54 mm	0.1 in	ABS Plastic	IP40 NEMA 1	Gray	1.6 "	40.64 mm	UL94 HB	Mounting Flange PCB Supports Wall Mount	6.88 in	123.95 mm	174.75 mm	4.88 in

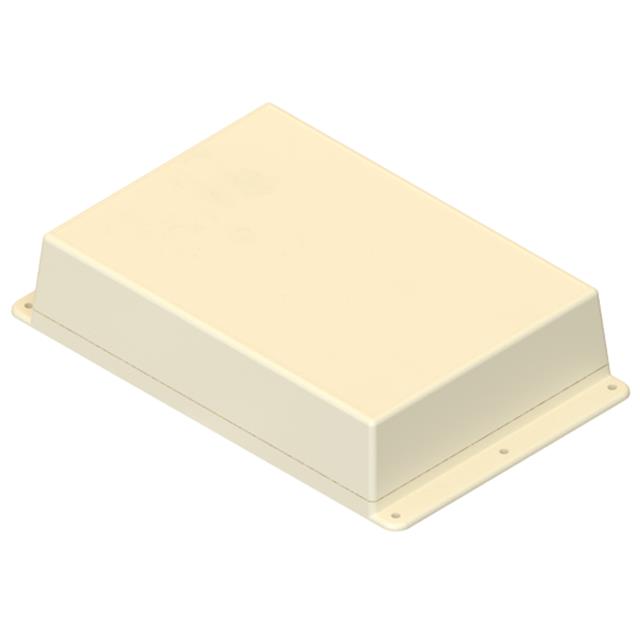

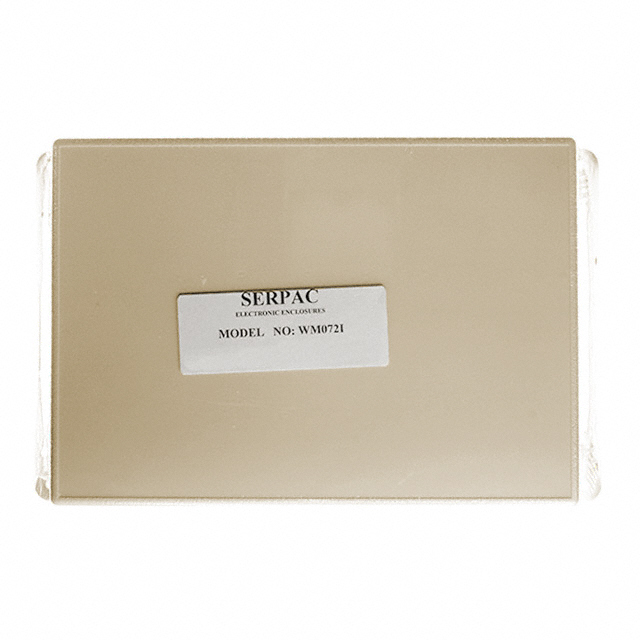

Serpac WM072I,AL	33.6 in²	217 cm²	185.97 g	0.41 lb	Box	Cover Included	2.54 mm	0.1 in	ABS Plastic	IP40 NEMA 1	Almond	1.6 "	40.64 mm	UL94 HB	Mounting Flange PCB Supports Wall Mount	6.88 in	123.95 mm	174.75 mm	4.88 in

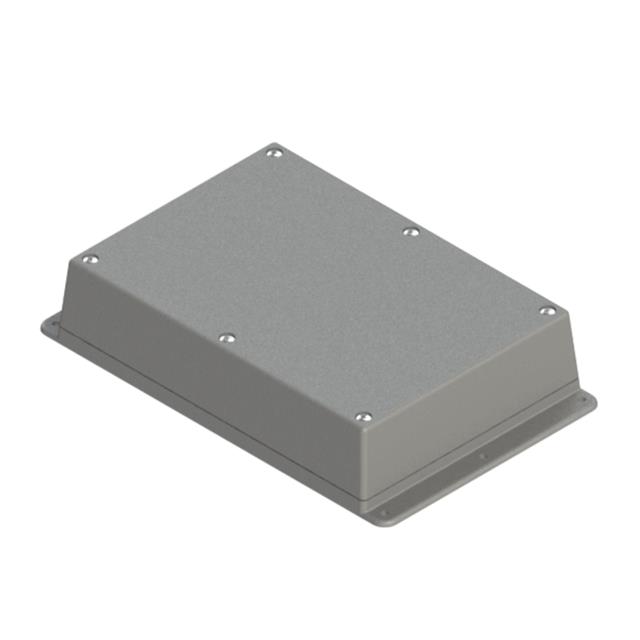

Serpac WM072R,GY	33.6 in²	217 cm²	185.97 g	0.41 lb	Box	Cover Included	2.54 mm	0.1 in	ABS Plastic	IP40 NEMA 1	Gray	1.6 "	40.64 mm	UL94 HB	Front Access Mounting Flange PCB Supports Wall Mount	6.88 in	123.95 mm	174.75 mm	4.88 in

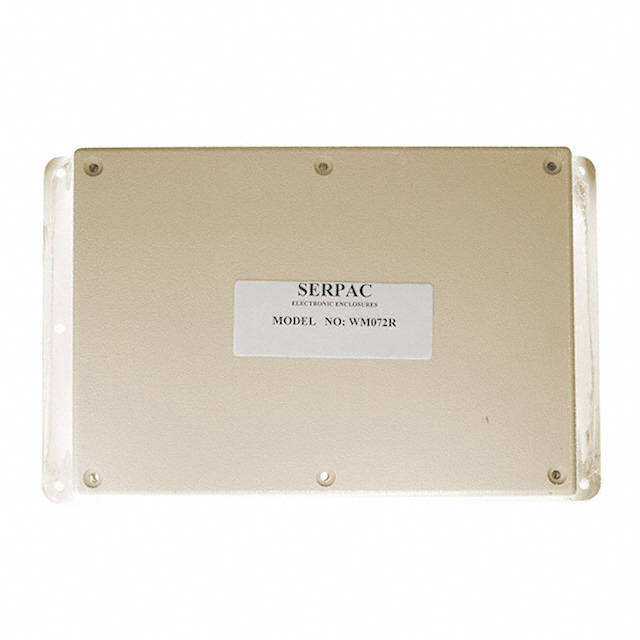

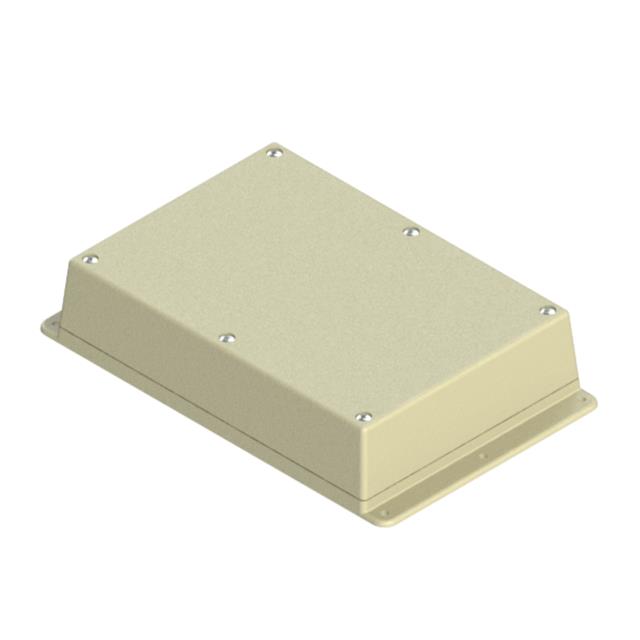

Serpac WM072R,AL	33.6 in²	217 cm²	185.97 g	0.41 lb	Box	Cover Included	2.54 mm	0.1 in	ABS Plastic	IP40 NEMA 1	Almond	1.6 "	40.64 mm	UL94 HB	Front Access Mounting Flange PCB Supports Wall Mount	6.88 in	123.95 mm	174.75 mm	4.88 in
Serpac WM072,BK	33.6 in²	217 cm²	185.97 g	0.41 lb	Box	Cover Included	2.54 mm	0.1 in	ABS Plastic	IP40 NEMA 1	Black	1.6 "	40.64 mm	UL94 HB	Mounting Flange PCB Supports Wall Mount	6.88 in	123.95 mm	174.75 mm	4.88 in
