17-1001 Series
Manufacturer: Amphenol CONEC
Catalog
CONN MOD JACK 8P8C SHIELDED
| Part | LED Color | Number of Positions/Contacts | Shielding | Contact Finish | Termination | Number of Ports | Ratings | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Features | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Housing Material | Tab Direction | Mounting Type | Number of Rows | Orientation | Accessory Type | Color | For Use With/Related Products | Shell Material, Finish | Convert From (Adapter End) | Type | Mounting Feature | Convert To (Adapter End) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

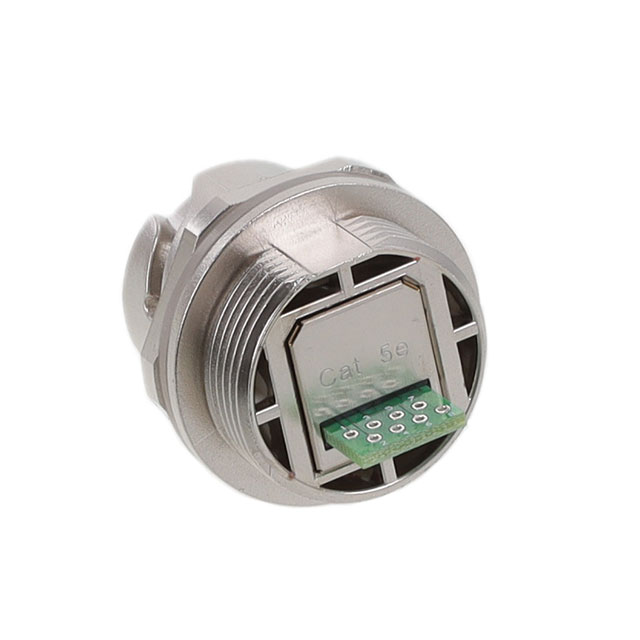

 Amphenol CONEC | Does Not Contain LED | 8p8c (RJ45 Ethernet) | Shielded | Gold | PC Board Solder | 1 | Cat5e | 50 µin | 1.27 µm | Jack | Circular Bayonet Coupling | Phosphor Bronze | 85 °C | -40 °C | IP67 - Dust Tight Waterproof | Polybutylene Terephthalate (PBT) Glass Filled | User Selectable | Bulkhead Panel Mount | 1 | Straight | ||||||||

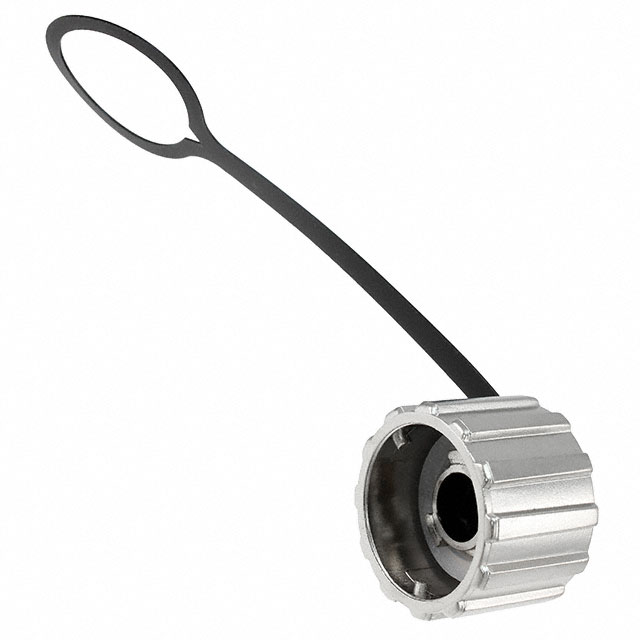

 Amphenol CONEC | IP67 Lanyard | Cap (Cover) | Silver | RJ45 Connectors | ||||||||||||||||||||||||

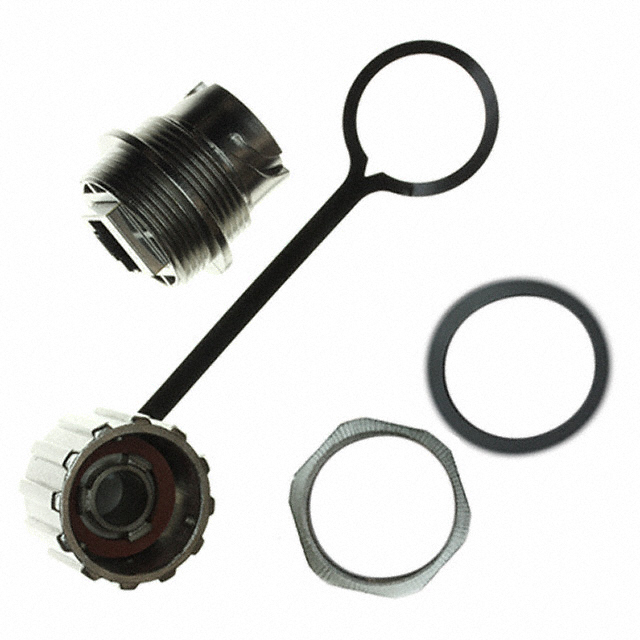

 Amphenol CONEC | Does Not Contain LED | 8p8c (RJ45 Ethernet) | Shielded | Gold | PC Board Solder | 1 | Cat5e | 50 µin | 1.27 µm | Jack | Circular Bayonet Coupling | Phosphor Bronze | 85 °C | -40 °C | IP67 - Dust Tight Waterproof | Polybutylene Terephthalate (PBT) Glass Filled | User Selectable | Bulkhead Panel Mount | 1 | Straight | ||||||||

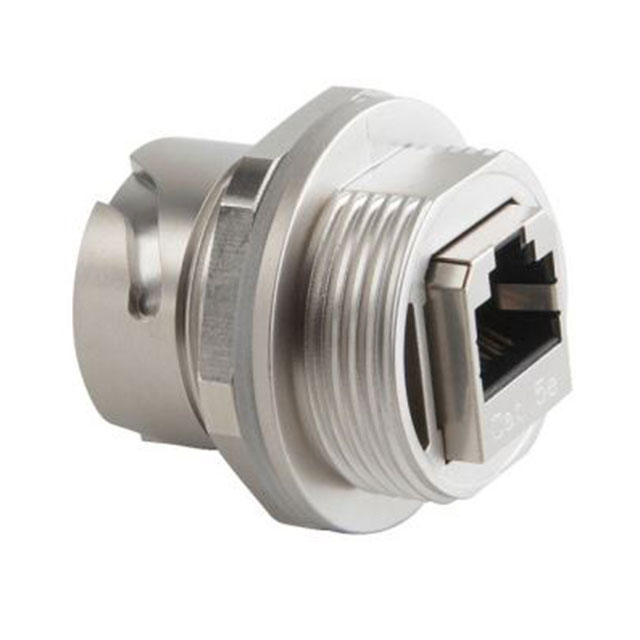

 Amphenol CONEC | Unshielded | Gold | Cat5e | 50 µin | 1.27 µm | Circular Threaded Coupling | Phosphor Bronze | 85 °C | -40 °C | IP67 - Dust Tight Waterproof | Polybutylene Terephthalate (PBT) Glass Filled | Bulkhead Panel Mount | Polyester | Jack 8p8c (RJ45) | Coupler | Front Side Nut Rear Side Nut | 8p8c (RJ45) Jack | |||||||||||
 Amphenol CONEC | Shielded | Gold | Cat5e | 50 µin | 1.27 µm | Circular Bayonet Coupling | Phosphor Bronze | 85 °C | -40 °C | IP67 - Dust Tight Waterproof | Polybutylene Terephthalate (PBT) Glass Filled | Bulkhead Panel Mount | Metallized Nickel Plated Plastic | Jack 8p8c (RJ45) | Coupler | Front Side Nut Rear Side Nut | 8p8c (RJ45) Jack | |||||||||||
Amphenol CONEC | Does Not Contain LED | 8p8c (RJ45 Ethernet) | Shielded | Gold | Color Coded Block IDC | 1 | Cat5e | 50 µin | 1.27 µm | Jack | Circular Bayonet Coupling | Phosphor Bronze | 85 °C | -40 °C | IP67 - Dust Tight Waterproof | Polybutylene Terephthalate (PBT) Glass Filled | User Selectable | Bulkhead Panel Mount | 1 | Straight | ||||||||
 Amphenol CONEC | Shielded | Gold | Cat5e | 50 µin | 1.27 µm | Cap (Cover) Circular Bayonet Coupling Industrial Environments | Phosphor Bronze | 85 °C | -40 °C | IP67 - Dust Tight Waterproof | Polybutylene Terephthalate (PBT) Glass Filled | Bulkhead Panel Mount | Metallized Nickel Plated Plastic | Jack 8p8c (RJ45) | Coupler | Front Side Nut Rear Side Nut | 8p8c (RJ45) Jack |
