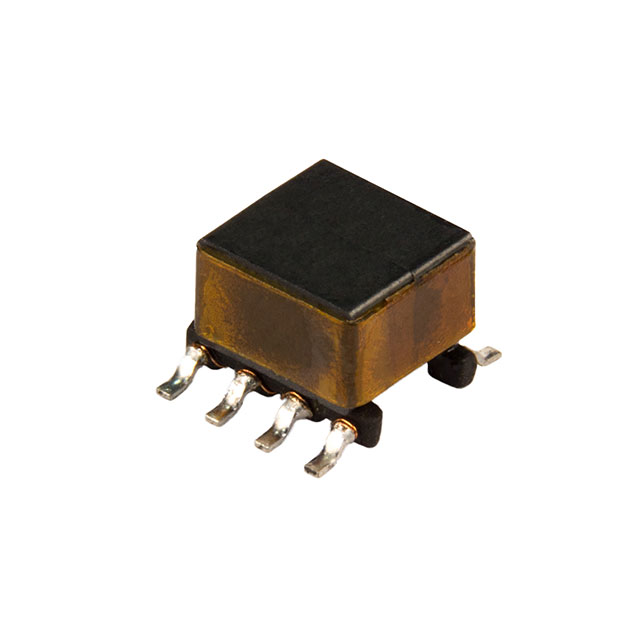

SM514 Series
Manufacturer: Bourns Inc.
Beta
⌘K
TRANSFORMER G FAST 8SMD
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Turns Ratio - Primary:Secondary | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Transformer Type | Inductance | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 85 °C | -40 C | Surface Mount | 1:1 | 0.209 " | 5.3 mm | LAN | 10 µH | 0.197 " | 0.299 " | 7.6 mm | 5 mm |
