9CRA Type Series
DC Fans DC Axial Fan, 80x80x80mm, 24VDC, Counter Rotating, Low Power, Lock Rotor Sensor
Manufacturer: Sanyo Denki America Inc.
Catalog
DC Fans DC Axial Fan, 80x80x80mm, 24VDC, Counter Rotating, Low Power, Lock Rotor Sensor
Beta
⌘K
DC Fans DC Axial Fan, 80x80x80mm, 24VDC, Counter Rotating, Low Power, Lock Rotor Sensor
DC Fans DC Axial Fan, 80x80x80mm, 24VDC, Counter Rotating, Low Power, Lock Rotor Sensor
DC Fans DC Axial Fan, 80x80x80mm, 24VDC, Counter Rotating, Low Power, Lock Rotor Sensor
| Part | Material - Frame | Material - Blade | Voltage - Rated | Termination | Fan Type | Size / Dimension [z] | Size / Dimension [x] | Approval Agency | Features | Bearing Type | Width [y] | Static Pressure | Static Pressure | Noise | Power (Watts) | RPM [custom] | RPM [custom] | Air Flow | Air Flow | Operating Temperature [Min] | Operating Temperature [Max] | Weight | Weight | Termination | Weight [custom] | Weight [custom] | Lifetime @ Temp. | Current Rating (Amps) | Voltage Range [Max] | Voltage Range [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

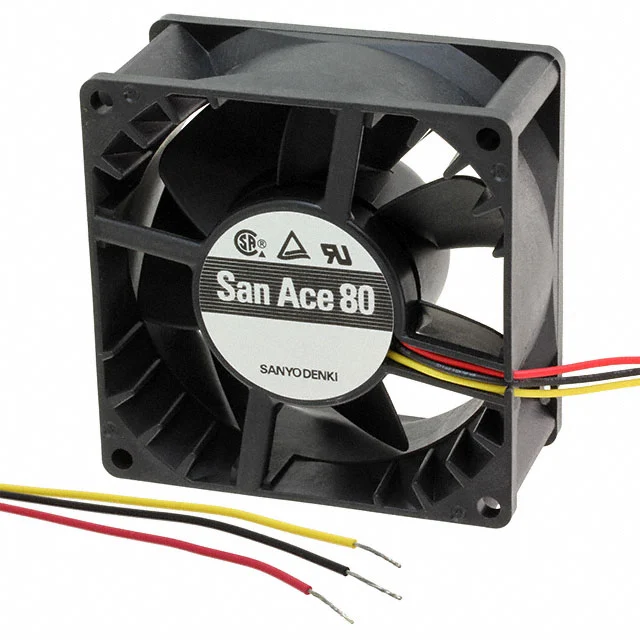

 Sanyo Denki America Inc. | Plastic | Plastic | 24 VDC | 3 Wire Leads | Tubeaxial | 80 mm | 80 mm | cURus TUV | Locked Rotor Sensor | Ball | 80 mm | |||||||||||||||||||

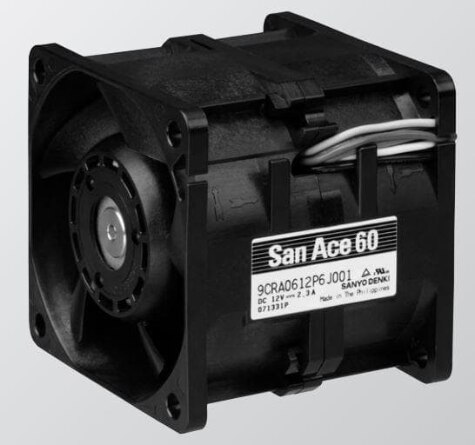

 Sanyo Denki America Inc. | 12 VDC | Tubeaxial (Dual) | 60 mm | 60 mm | cURus TUV | Counter-Rotating Locked Rotor Protection Speed Sensor (Tach) | Ball | 56 mm | 2.49 in H2O | 620.2 Pa | 65 dB | 15.6 W | 13500 RPM | 11400 RPM | 58.2 CFM | 1.63 mł/min | -20 ░C | 70 °C | 0.441 lb | 200 g | 3 | |||||||||
 Sanyo Denki America Inc. | ||||||||||||||||||||||||||||||
 Sanyo Denki America Inc. | 12 VDC | Tubeaxial (Dual) | 80 mm | 80 mm | cURus TUV | Counter-Rotating Locked Rotor Protection Speed Sensor (Tach) | Ball | 80 mm | 4.62 in H2O | 1150.8 Pa | 76 dB(A) | 63.6 W | 12000 RPM | 11300 RPM | 158.9 CFM | 4.45 m³/min | -20 ░C | 70 °C | 3 | 0.993 lb | 450.42 g | |||||||||
Sanyo Denki America Inc. | 12 VDC | Tubeaxial (Dual) | 38 mm | 38 mm | cURus TUV | Counter-Rotating Locked Rotor Protection Speed Sensor (Tach) | Ball | 48 mm | 2.25 in H2O | 560 Pa | 62 dB(A) | 13.2 W | 16000 RPM | 13200 RPM | 24.7 CFM | 0.692 m³/min | -20 ░C | 70 °C | 3 | 0.177 lb | 80.29 g | |||||||||
 Sanyo Denki America Inc. | Plastic | Plastic | 24 VDC | Tubeaxial (Dual) | 80 mm | 80 mm | cURus TUV | Counter-Rotating Locked Rotor Protection PWM Control Speed Sensor (Tach) | Ball | 80 mm | 4.62 in H2O | 1150.8 Pa | 76 dB(A) | 63.6 W | 12000 RPM | 11300 RPM | 158.9 CFM | 4.45 m³/min | -20 ░C | 70 °C | 4 | 0.993 lb | 450.42 g | 40000 Hrs | 2.65 A | 26.4 VDC | 21.6 VDC |
