Micro Timer II Series

Catalog

CONN SOCKET 17-20AWG CRIMP TIN

Part	Contact Termination	Pin or Socket	Wire Gauge [custom]	Wire Gauge [custom]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge [Max]	Wire Gauge [Min]	For Use With/Related Products	Accessory Type	Note	Connector Type	Row Spacing	Row Spacing	Features	Insulation Material	Contact Type	Number of Positions	Mounting Type	Fastening Type	Number of Rows [custom]	Color	Pitch	Pitch	Type

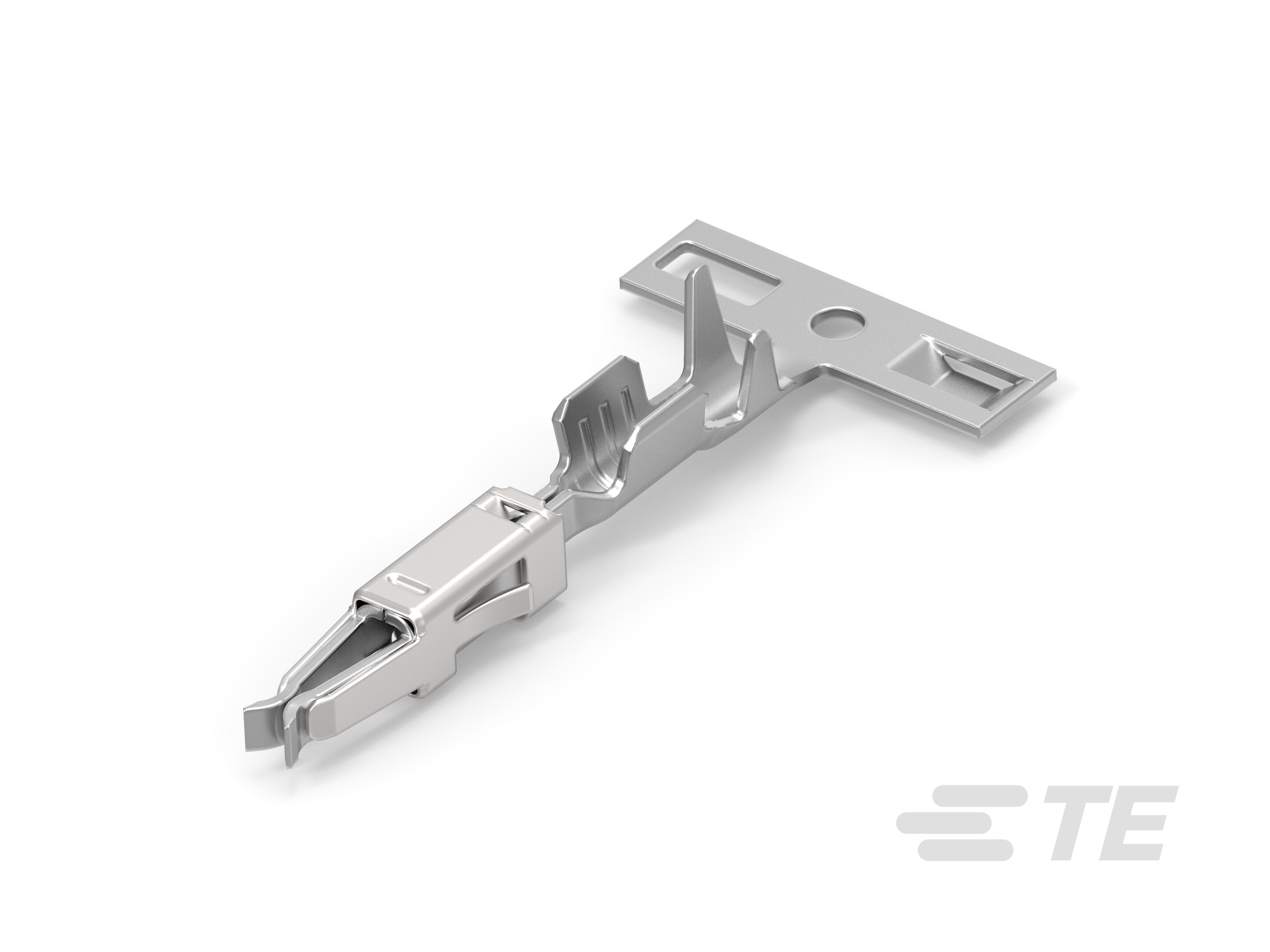

TE Connectivity AMP Connectors 964263-2	Crimp	Socket	17	20 AWG	Tin

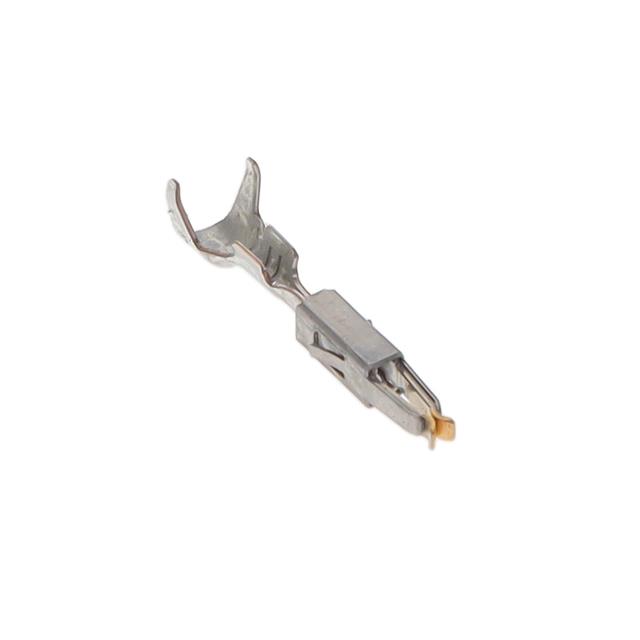

TE Connectivity AMP Connectors 969005-3	Crimp	Socket			Gold	31.5 µin	0.8 µm	24 AWG	19.5 AWG
TE Connectivity AMP Connectors 964261-3	Crimp	Socket			Gold	31.5 µin	0.8 µm	24 AWG	19.5 AWG

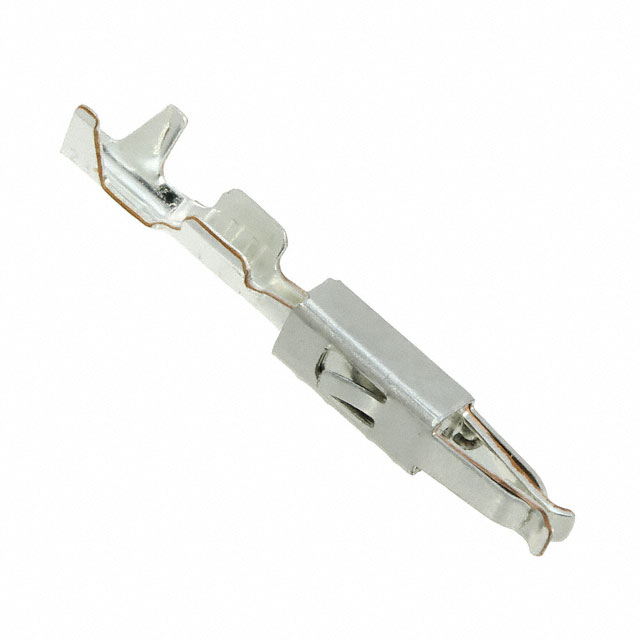

TE Connectivity AMP Connectors 962942-1	Crimp	Socket			Tin			24 AWG	19.5 AWG
TE Connectivity AMP Connectors 964263-3	Crimp	Socket	17	20 AWG	Gold	31.5 µin	0.8 µm

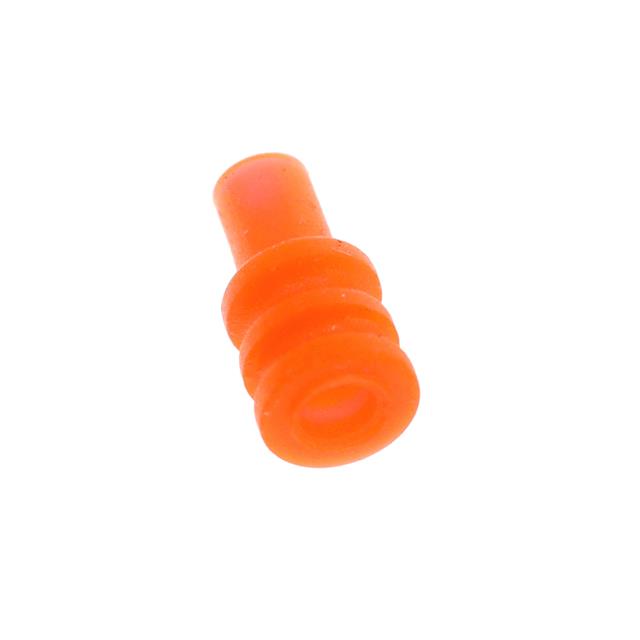

TE Connectivity AMP Connectors 2112323-1										Heavy Duty Sealed Connector Series	Plug Sealing

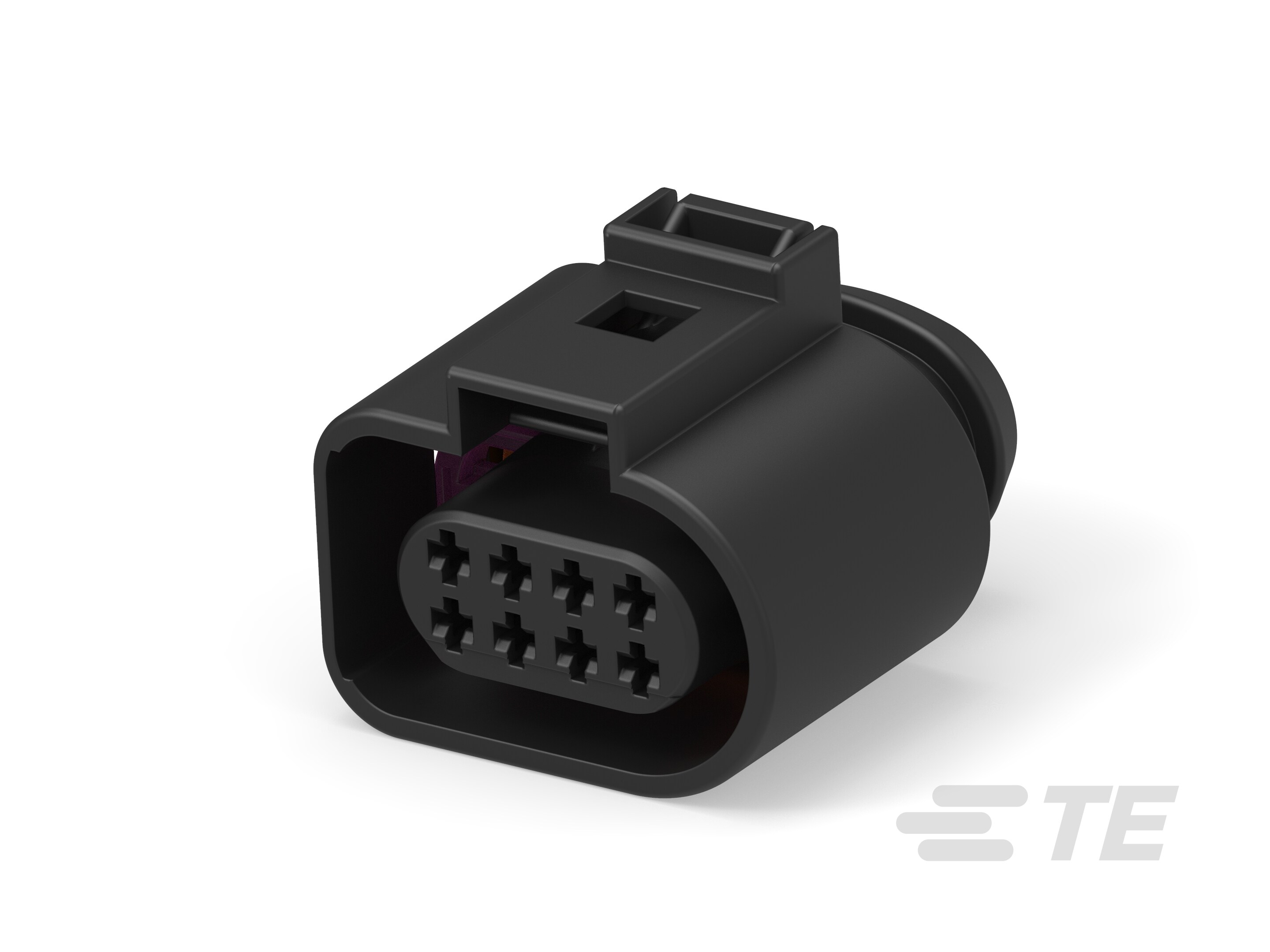

TE Connectivity AMP Connectors 1-1394416-1	Crimp											Contacts Not Included	Receptacle	0.157 in	4 mm	Sealed	Polybutylene Terephthalate (PBT)	Female Socket	8	Free Hanging (In-Line)	Latch Holder	2	Black	4 mm	0.157 in

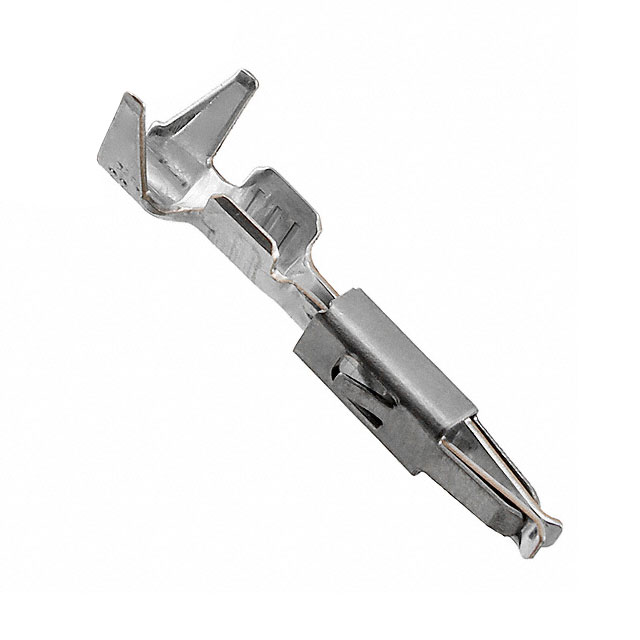

TE Connectivity AMP Connectors 962876-1	Crimp	Socket	17	20 AWG	Tin

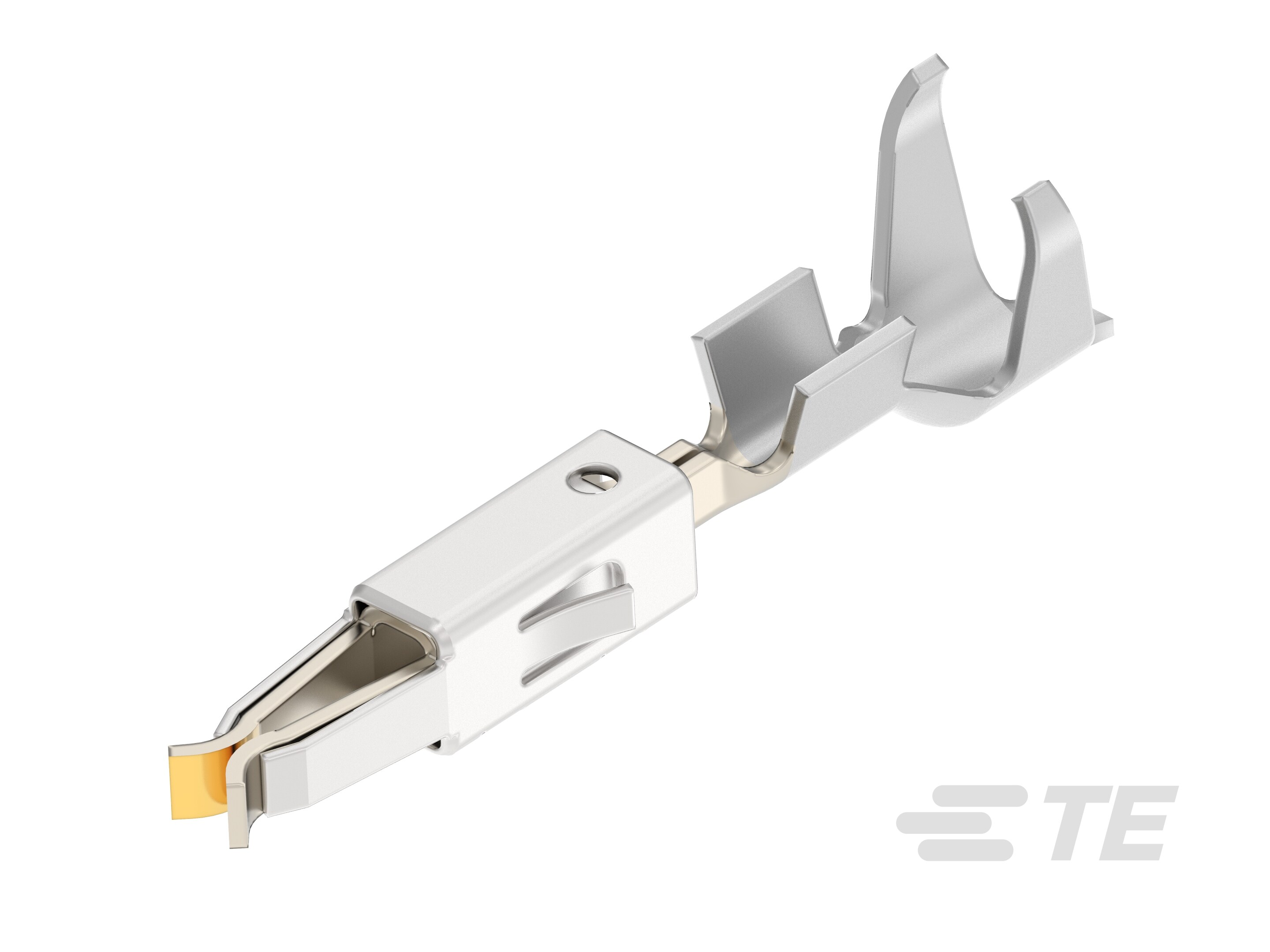

TE Connectivity AMP Connectors 2141902-3	Crimp	Socket			Gold	31.5 µin	0.8 µm	24 AWG	19.5 AWG																	Stamped
TE Connectivity AMP Connectors 964261-2	Crimp	Socket			Tin			24 AWG	19.5 AWG
