LM25017 Series
7.5-48V Wide Vin, 650mA Constant On-Time Synchronous Buck Regulator
Manufacturer: Texas Instruments
Catalog
7.5-48V Wide Vin, 650mA Constant On-Time Synchronous Buck Regulator
Beta
⌘K
7.5-48V Wide Vin, 650mA Constant On-Time Synchronous Buck Regulator
7.5-48V Wide Vin, 650mA Constant On-Time Synchronous Buck Regulator
7.5-48V Wide Vin, 650mA Constant On-Time Synchronous Buck Regulator
| Part | Voltage - Input [Max] | Voltage - Input [Min] | Regulator Topology | Voltage - Output | Supplied Contents | Utilized IC / Part | Frequency - Switching | Outputs and Type | Board Type | Main Purpose | Operating Temperature [Min] | Operating Temperature [Max] | Frequency - Switching [Max] | Voltage - Input (Min) [Min] | Output Type | Mounting Type | Synchronous Rectifier | Voltage - Output (Min/Fixed) | Current - Output | Package / Case [y] | Package / Case [x] | Package / Case | Voltage - Input (Max) [Max] | Output Configuration | Number of Outputs | Function | Topology | Supplier Device Package | Voltage - Output (Max) [Max] | Outputs and Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

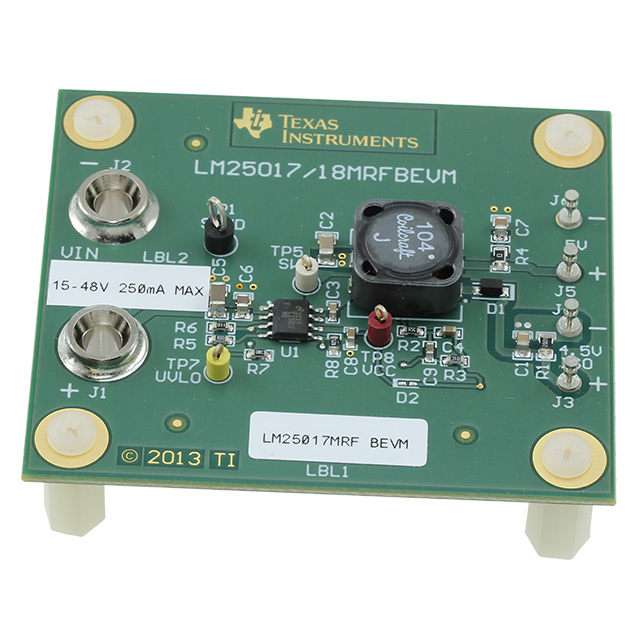

 Texas Instruments | 48 V | 15 V | Buck | 4.5 V 5 V | Board(s) | LM25017 | 500 kHz | 1 1 | Fully Populated | DC/DC Step Down | ||||||||||||||||||||
 Texas Instruments | -40 °C | 125 ¯C | 1 MHz | 7.5 V | Adjustable | Surface Mount | 1.225 V | 650 mA | 3.9 mm | 0.154 in | 8-PowerSOIC | 48 V | Positive | 1 | Step-Down | Buck | 8-SO PowerPad | 40 V | ||||||||||||
 Texas Instruments | -40 °C | 125 ¯C | 1 MHz | 7.5 V | Adjustable | Surface Mount | 1.225 V | 650 mA | 8-WDFN Exposed Pad | 48 V | Positive | 1 | Step-Down | Buck | 8-WSON (4x4) | 40 V | ||||||||||||||
Texas Instruments | -40 °C | 125 ¯C | 1 MHz | 7.5 V | Adjustable | Surface Mount | 1.225 V | 650 mA | 3.9 mm | 0.154 in | 8-PowerSOIC | 48 V | Positive | 1 | Step-Down | Buck | 8-SO PowerPad | 40 V | ||||||||||||
 Texas Instruments | -40 °C | 125 ¯C | 1 MHz | 7.5 V | Adjustable | Surface Mount | 1.225 V | 650 mA | 8-WDFN Exposed Pad | 48 V | Positive | 1 | Step-Down | Buck | 8-WSON (4x4) | 40 V | ||||||||||||||

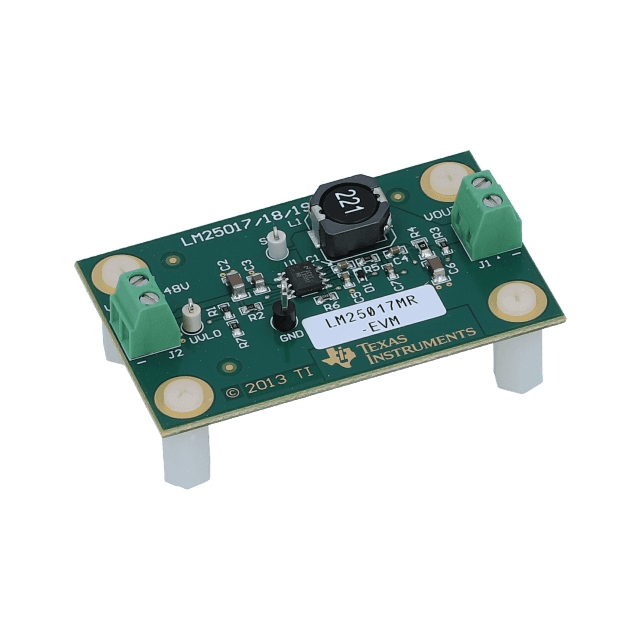

 Texas Instruments | 48 V | 12.5 V | Buck | 10 V | Board(s) | LM25017 | 480 kHz | 1 | Fully Populated | DC/DC Step Down | 650 mA | Non-Isolated | ||||||||||||||||||
Texas Instruments | -40 °C | 125 ¯C | 1 MHz | 7.5 V | Adjustable | Surface Mount | 1.225 V | 650 mA | 8-WDFN Exposed Pad | 48 V | Positive | 1 | Step-Down | Buck | 8-WSON (4x4) | 40 V |
