HEE-018 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

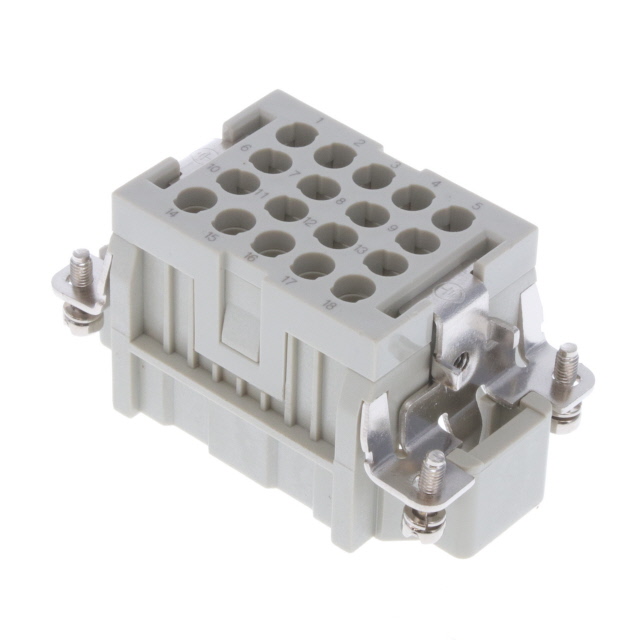

INSERT MALE 18POS+1GND HEE-018-M
| Part | Material Flammability Rating | Housing Material | Termination Style | Size | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Gender | Contact Type | Number of Positions | Current Rating (Amps) | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | EN45545 | Polycarbonate (PC) | Crimp | H10B | 500 V | 125 °C | -40 C | Male | CEM DEM | 18+Ground | 16 A | Insert without Contacts |
