JWL12R Series

Catalog

SWITCH ROCKER SPDT 16A 125V

Part	Mechanical Life	Electrical Life	Approval Agency	Features	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage Rating - AC	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Circuit	Ingress Protection	Current Rating (Amps)	Switch Function	Color - Actuator/Cap	Actuator Marking	Termination Style	Termination Style	Termination Style
NKK Switches JWL12RCA/U	25000 Steps	25000 Steps	CSA UL VDE	Epoxy Sealed Terminals	20.5 mm	29.5 mm	125 V	Panel Mount Snap-In	-25 °C	70 °C	Concave (Curved)	SPDT	Dust Proof	16 A	On-On	Red	No Marking	4.7 mm	0.187 in	Solder Quick Connect
NKK Switches JWL12RAA/U	25000 Steps	25000 Steps	CSA UL VDE	Epoxy Sealed Terminals	20.5 mm	29.5 mm	125 V	Panel Mount Snap-In	-25 °C	70 °C	Concave (Curved)	SPDT	Dust Proof	16 A	On-On	Black	No Marking	4.7 mm	0.187 in	Solder Quick Connect
NKK Switches JWL12RAA	25000 Steps	25000 Steps	CSA UL VDE	Epoxy Sealed Terminals	20.5 mm	29.5 mm	125 V	Panel Mount Snap-In	-25 °C	70 °C	Concave (Curved)	SPDT	Dust Proof	16 A	On-On	Black	No Marking	4.7 mm	0.187 in	Solder Quick Connect

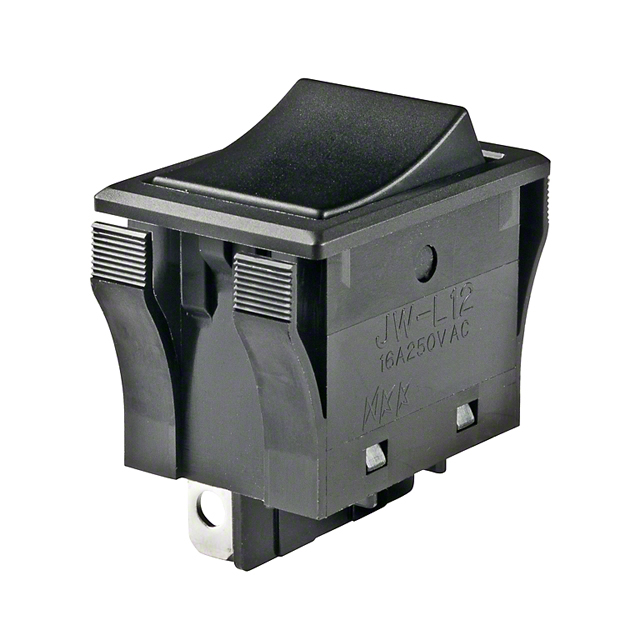

NKK Switches JWL12RAA/UCV	25000 Steps	25000 Steps	CSA UL VDE	Epoxy Sealed Terminals	20.5 mm	29.5 mm	125 V	Panel Mount Snap-In	-25 °C	70 °C	Concave (Curved)	SPDT	Dust Proof	16 A	On-On	Black	No Marking	4.7 mm	0.187 in	Solder Quick Connect
NKK Switches JWL12RHA	25000 Steps	25000 Steps	CSA UL VDE		20.5 mm	29.5 mm	125 V	Panel Mount Snap-In	-25 °C	70 °C	Concave (Curved)	SPDT		16 A	On-On		No Marking			Solder Quick Connect - 0.110" (2.8mm)
