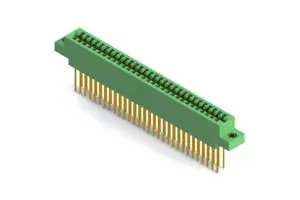

317-060 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 60POS 0.156

Part	Material - Insulation	Read Out	Contact Material	Gender	Card Type	Flange Feature	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Termination	Pitch	Pitch	Contact Finish	Color	Card Thickness [Max]	Card Thickness [Min]	Contact Type	Mounting Type	Features	Number of Positions	Number of Positions/Bay/Row	Number of Rows [custom]	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 317-060-540-878	Diallyl Phthalate (DAP)	Dual	Copper Alloy	Female	Non Specified - Dual Edge	4-40 Threaded Insert Top Mount Opening	-65 ░C	125 °C	0.25 Ám	10 Áin	Wire Wrap	3.96 mm	0.156 in	Gold	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Through Hole	Card Guides	60	30	2
EDAC Inc. 317-060-540-804	Diallyl Phthalate (DAP)	Dual	Copper Alloy	Female	Non Specified - Dual Edge		-65 ░C	125 °C	0.25 Ám	10 Áin	Wire Wrap	3.96 mm	0.156 in	Gold	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Through Hole		60	30	2	0.156 "	3.96 mm

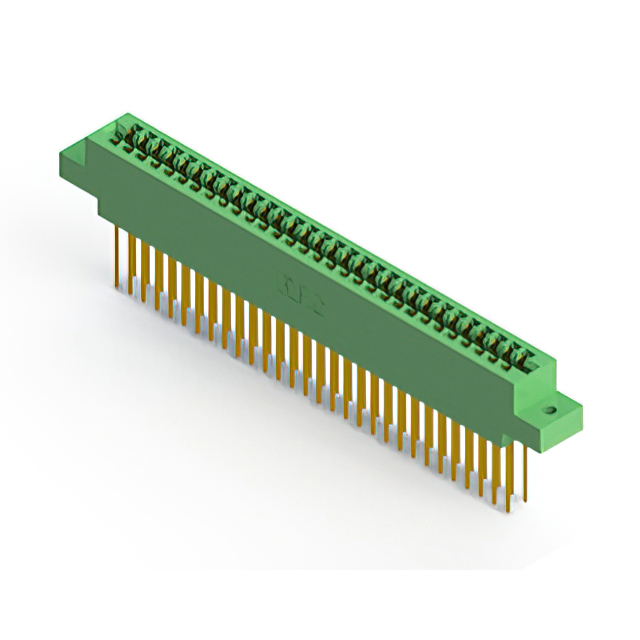

EDAC Inc. 317-060-540-802	Diallyl Phthalate (DAP)	Dual	Copper Alloy	Female	Non Specified - Dual Edge		-65 ░C	125 °C	0.25 Ám	10 Áin	Wire Wrap	3.96 mm	0.156 in	Gold	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Through Hole		60	30	2
EDAC Inc. 317-060-540-808	Diallyl Phthalate (DAP)	Dual	Copper Alloy	Female	Non Specified - Dual Edge	4-40 Threaded Insert Top Mount Opening	-65 ░C	125 °C	0.25 Ám	10 Áin	Wire Wrap	3.96 mm	0.156 in	Gold	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Through Hole		60	30	2

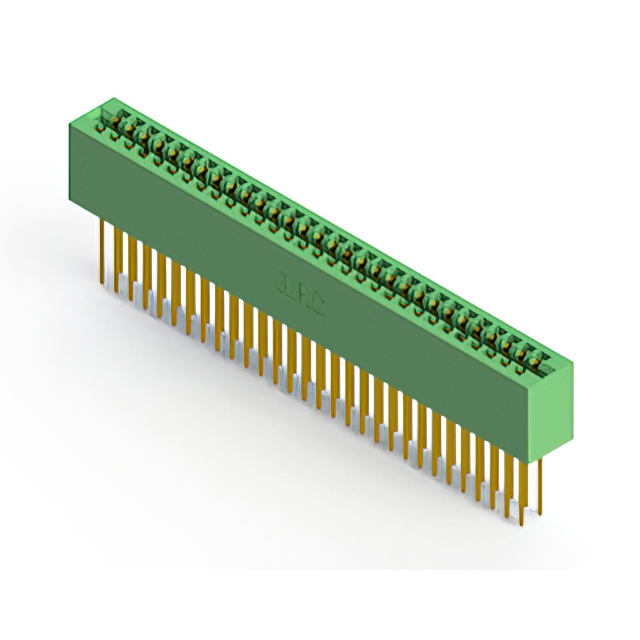

EDAC Inc. 317-060-542-801	Diallyl Phthalate (DAP)	Dual	Copper Alloy	Female	Non Specified - Dual Edge		-65 ░C	125 °C	0.25 Ám	10 Áin	Wire Wrap	3.96 mm	0.156 in	Gold	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Through Hole		60	30	2
EDAC Inc. 317-060-542-878	Diallyl Phthalate (DAP)	Dual	Copper Alloy	Female	Non Specified - Dual Edge	4-40 Threaded Insert Top Mount Opening	-65 ░C	125 °C	0.25 Ám	10 Áin	Wire Wrap	3.96 mm	0.156 in	Gold	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Through Hole	Card Guides	60	30	2
