CFS-0201 Series

Catalog

DIP SWITCH, SPST-NO, 0.1A, 6V, SMD

Part	Length [x]	Length [x]	Electrical Life	Circuit	Height Above Board	Height Above Board	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Contact Finish	Body Material	Actuator Level	Pitch [x]	Pitch	Pitch [x]	Contact Material	Voltage Rating	Current Rating (Amps)	Termination Style	Mounting Type

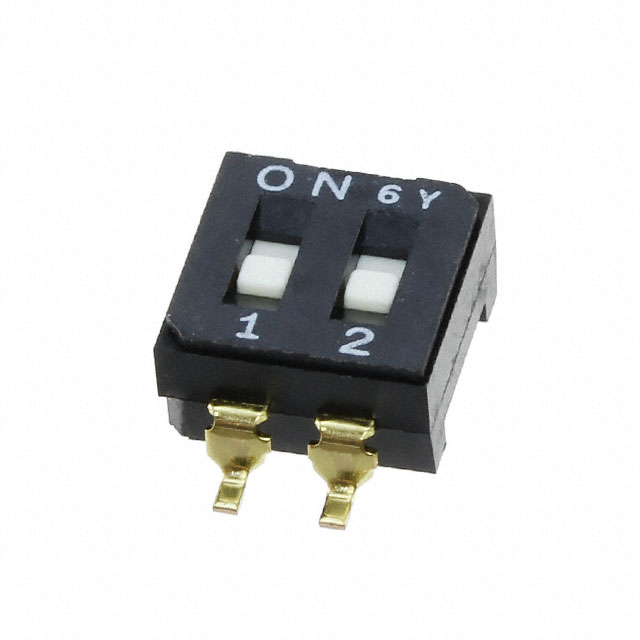

Nidec Components Corporation CFS-0201MB	0.256 in	6.5 mm	1000 Cycles	SPST	3.7 mm	0.146 in	Slide (Standard)	85 °C	-40 °C	2	Gold	Polyphenylene Sulfide (PPS)	Flush Recessed	0.1 in	Full	2.54 mm	Copper Alloy	6 VDC	100 mA	Gull Wing	Surface Mount
Nidec Components Corporation CFS-0201TB	0.256 in	6.5 mm	1000 Cycles	SPST	3.7 mm	0.146 in	Slide (Standard)	85 °C	-40 °C	2	Gold	Polyphenylene Sulfide (PPS)	Flush Recessed	0.1 in	Full	2.54 mm	Copper Alloy	6 VDC	100 mA	Gull Wing	Surface Mount
Nidec Components Corporation CFS-0201MA	0.256 in	6.5 mm	1000 Cycles	SPST	3.9 mm	0.154 in	Slide (Standard)	85 °C	-40 °C	2	Gold	Polyphenylene Sulfide (PPS)	Flush Recessed	0.1 in	Full	2.54 mm	Copper Alloy	6 VDC	100 mA	J Lead	Surface Mount
