GBC18S Series

Catalog

CONN HEADER SMD R/A 18POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Style	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Current Rating (Amps)	Number of Positions Loaded	Contact Shape	Contact Material	Contact Length - Mating	Contact Length - Mating	Number of Rows	Insulation Color	Contact Type	Shrouding	Connector Type	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Mounting Type	Termination	Contact Finish - Post	Insulation Height	Insulation Height

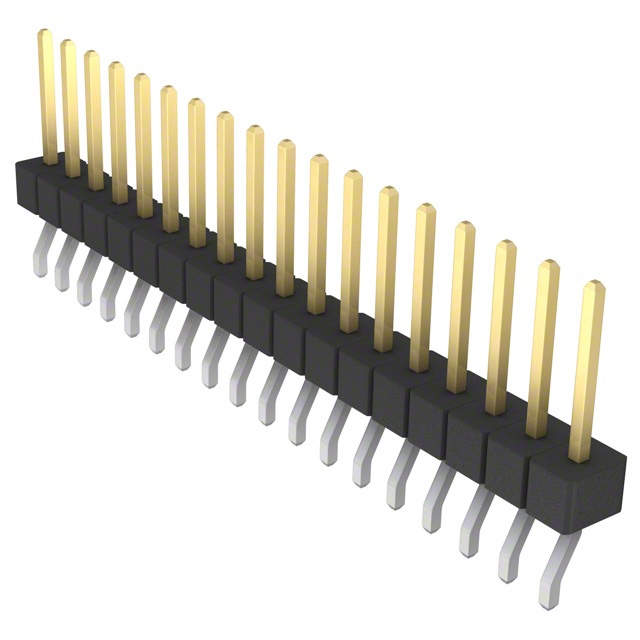

Sullins Connector Solutions GBC18SGSN-M89	2.54 µm	100 µin	Nylon 9T Polyamide (PA9T)	Push-Pull	0.25 µm	10 µin	18	Board to Board Cable	150 °C	-65 ░C	UL94 V-0	3 A	All	Square	Phosphor Bronze	8.08 mm	0.318 in	1	Black	Male Pin	Unshrouded	Header Breakaway	Gold	0.1 "	2.54 mm	Right Angle Surface Mount	Solder	Tin	3.56 mm	0.14 in
Sullins Connector Solutions GBC18SABN-M30	2.54 µm	100 µin	Nylon 9T Polyamide (PA9T)	Push-Pull	0.25 µm	10 µin	18	Board to Board Cable	150 °C	-65 ░C	UL94 V-0	3 A	All	Square	Phosphor Bronze	5.84 mm	0.23 in	1	Black	Male Pin	Unshrouded	Header Breakaway	Gold	0.1 "	2.54 mm	Surface Mount	Solder	Tin	2.54 mm	0.1 in
Sullins Connector Solutions GBC18SFBN-M30	2.54 µm	100 µin	Nylon 9T Polyamide (PA9T)	Push-Pull	0.25 µm	10 µin	18	Board to Board Cable	150 °C	-65 ░C	UL94 V-0	3 A	All	Square	Phosphor Bronze	8.08 mm	0.318 in	1	Black	Male Pin	Unshrouded	Header Breakaway	Gold	0.1 "	2.54 mm	Surface Mount	Solder	Tin	2.54 mm	0.1 in
