DLCBSAT Series

Catalog

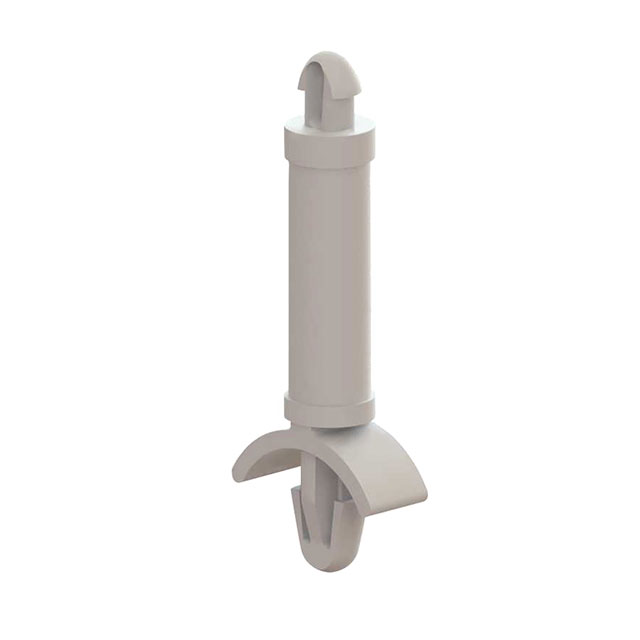

CBS DUAL LOCK ARROW/TEARDR 9/16"

Part	Between Board Height	Between Board Height	Between Board Height	Material	Holding Type	Mounting Type	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Max]	Features	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Support Panel Thickness [z]	Support Panel Thickness [z]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]
Essentra Components DLCBSAT-9-01	0.563 in	14.3 mm	9 "	Nylon	Snap Lock	Snap Lock	0.79 mm	0.031 in	0.078 "	1.98 mm	Winged	2.54 mm	0.1 in	0.064 in	1.63 mm	3.18 mm	0.125 in	0.125 in	23.88 mm	0.94 in
Essentra Components DLCBSAT-10-01	0.625 in	15.88 mm	5 8	Nylon	Snap Lock	Snap Lock	0.79 mm	0.031 in	0.078 "	1.98 mm	Winged	2.54 mm	0.1 in	0.064 in	1.63 mm	3.18 mm	0.125 in	0.125 in	25.5 mm	1.004 in
Essentra Components DLCBSAT-8-01	0.5 in	12.7 mm	0.5 in	Nylon	Snap Lock	Snap Lock	0.79 mm	0.031 in	0.078 "	1.98 mm	Winged	2.54 mm	0.1 in	0.064 in	1.63 mm	3.18 mm	0.125 in	0.125 in	22.3 mm	0.878 in
Essentra Components DLCBSAT-5-01	0.313 in	7.95 mm	0.3125 in	Nylon	Snap Lock	Snap Lock	0.79 mm	0.031 in	0.078 "	1.98 mm	Winged	2.54 mm	0.1 in	0.064 in	1.63 mm	3.18 mm	0.125 in	0.125 in	17.53 mm	0.69 in
