320561 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

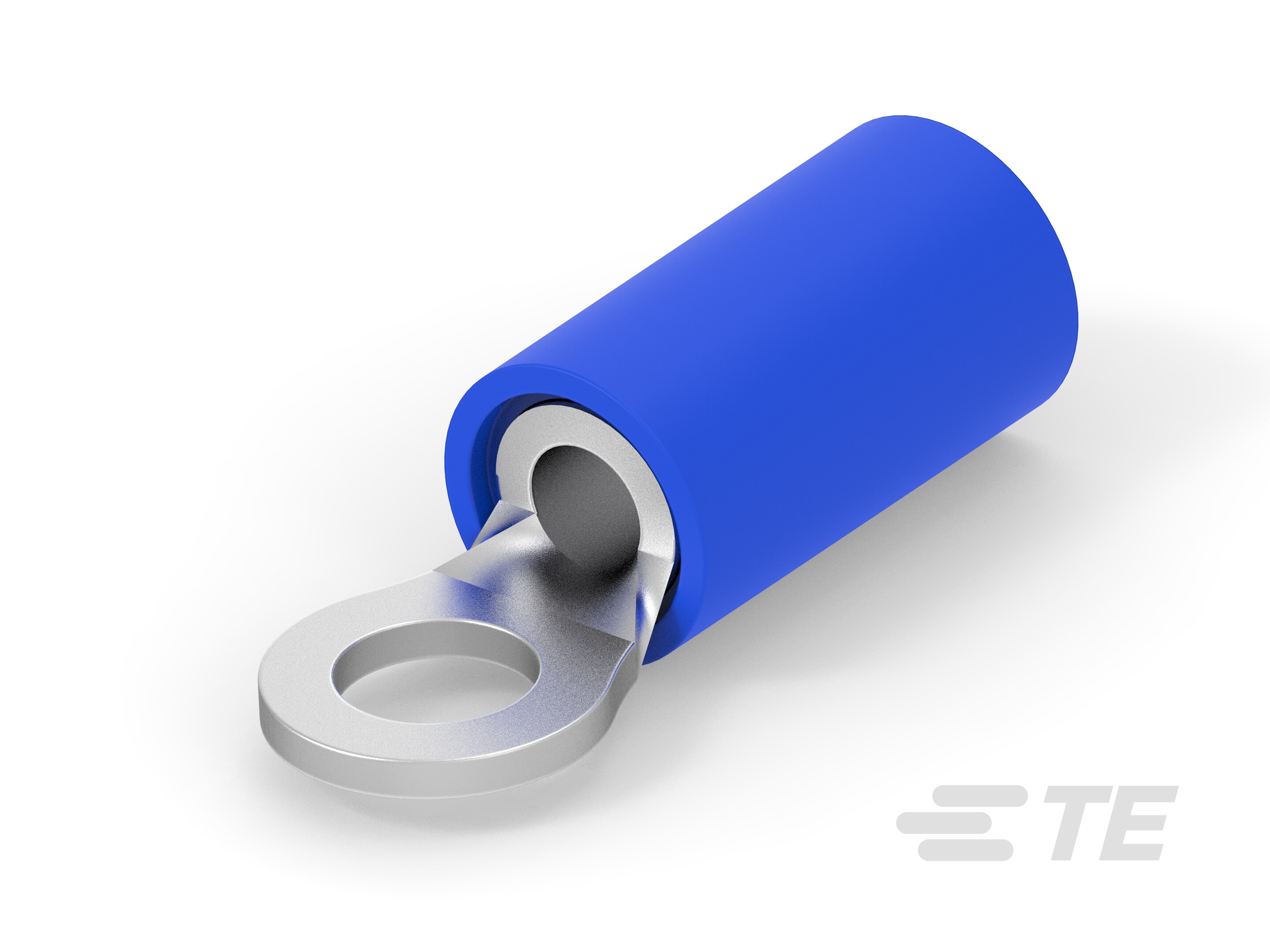

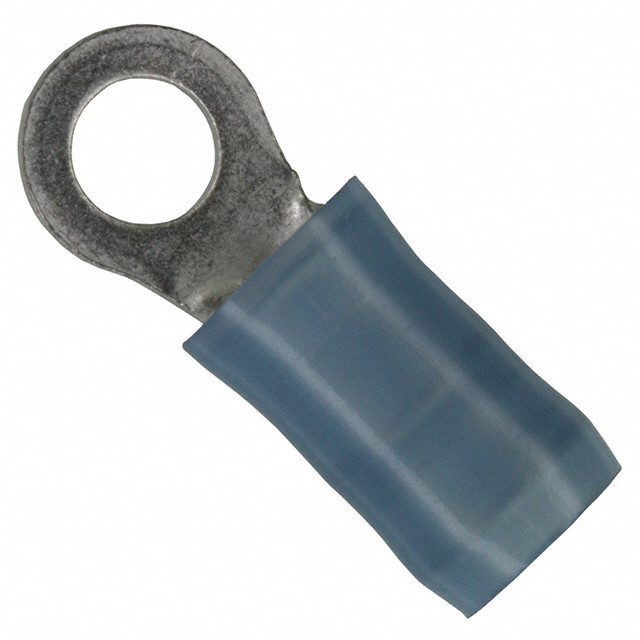

RING TONGUE TERMINAL 14-16AWG COPPER BLUE 17.856MM TIN LOOSE
| Part | Features | Terminal Type | Length - Overall [x] | Length - Overall [x] | Termination | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Contact Finish | Mounting Type | Color | Thickness | Thickness | Contact Material | Material - Insulation | Width - Outer Edges [y] | Width - Outer Edges [y] | Insulation | Stud/Tab Size | Wire Gauge | Insulation Diameter [Min] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Serrated Termination | Circular | 17.86 mm | 0.703 in | Crimp | 0.105 in | 3.81 mm | 2.67 mm | 0.15 " | Tin | Free Hanging (In-Line) | Blue | 0.031 in | 0.79 mm | Copper | Nylon Polyamide (PA) | 0.25 " | 6.35 mm | Insulated | 6 Stud | |||||
 TE Connectivity Raychem Cable Protection | Insulation Restriction | Circular | 19.43 mm | 0.765 in | Crimp | Tin | Free Hanging (In-Line) | Blue Green Stripe | 0.031 in | 0.79 mm | Copper | Nylon Polyamide (PA) | 0.25 " | 6.35 mm | Insulated | 6 Stud | 13.5 AWG | 0.078 in | 1.98 mm | 3.3 mm | 0.13 in |
