INA250A3 Series

36V, bi-directional, precision current sense amplifier w/int. shunt resistor

Catalog

36V, bi-directional, precision current sense amplifier w/int. shunt resistor

Part	Amplifier Type	Slew Rate	Package / Case [x]	Package / Case	Package / Case [y]	Gain Bandwidth Product	Current - Input Bias	Qualification	Voltage - Supply Span (Max) [Max]	Grade	Voltage - Supply Span (Min) [Min]	Current - Supply	Mounting Type	Supplier Device Package	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Utilized IC / Part	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Board Type	Output Type	Supplied Contents	Current - Supply (Main IC)	Channels per IC
Texas Instruments INA250A1QPWRQ1	Current Sense	0.2 V/µs	0.173 in	16-TSSOP	4.4 mm	50 kHz	28 µA	AEC-Q100	36 V	Automotive	2.7 V	200 µA	Surface Mount	16-TSSOP	1	125 °C	-40 °C
Texas Instruments INA250A1PWR	Current Sense	0.2 V/µs	0.173 in	16-TSSOP	4.4 mm	50 kHz	28 µA		36 V		2.7 V	200 µA	Surface Mount	16-TSSOP	1	125 °C	-40 °C
Texas Instruments INA250A4PWR	Current Sense	0.2 V/µs	0.173 in	16-TSSOP	4.4 mm	50 kHz	28 µA		36 V		2.7 V	200 µA	Surface Mount	16-TSSOP	1	125 °C	-40 °C
Texas Instruments INA250A2PW	Current Sense	0.2 V/µs	0.173 in	16-TSSOP	4.4 mm	50 kHz	28 µA		36 V		2.7 V	200 µA	Surface Mount	16-TSSOP	1	125 °C	-40 °C
Texas Instruments INA250A2QPWRQ1	Current Sense	0.2 V/µs	0.173 in	16-TSSOP	4.4 mm	50 kHz	28 µA	AEC-Q100	36 V	Automotive	2.7 V	200 µA	Surface Mount	16-TSSOP	1	125 °C	-40 °C
Texas Instruments INA250A4QPWRQ1	Current Sense	0.2 V/µs	0.173 in	16-TSSOP	4.4 mm	50 kHz	28 µA	AEC-Q100	36 V	Automotive	2.7 V	200 µA	Surface Mount	16-TSSOP	1	125 °C	-40 °C
Texas Instruments INA250A2PWR	Current Sense	0.2 V/µs	0.173 in	16-TSSOP	4.4 mm	50 kHz	28 µA		36 V		2.7 V	200 µA	Surface Mount	16-TSSOP	1	125 °C	-40 °C

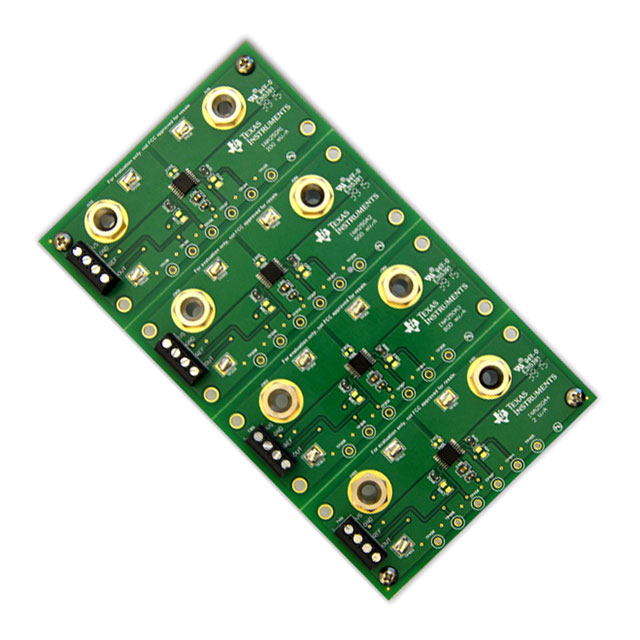

Texas Instruments INA250EVM	Current Sense	0.2 V/µs																INA250	36 V	2.7 V	Fully Populated	Single-Ended	Board(s)	200 µA	1 - Single
Texas Instruments INA250A3PW	Current Sense	0.2 V/µs	0.173 in	16-TSSOP	4.4 mm	50 kHz	28 µA		36 V		2.7 V	200 µA	Surface Mount	16-TSSOP	1	125 °C	-40 °C

Catalog

36V, bi-directional, precision current sense amplifier w/int. shunt resistor

Key Features

• Precision Integrated Shunt Resistor:Shunt Resistor: 2 mΩShunt Resistor Tolerance: 0.1% (Max)15 A Continuous from –40°C to 85°C0°C to 125°C Temperature Coefficient: 10 ppm/°CHigh Accuracy:Gain Error (Shunt and Amplifier): 0.3% (Max)Offset Current: 50 mA (Max, INA250A2)Four Available Gains:INA250A1: 200 mV/AINA250A2: 500 mV/AINA250A3: 800 mV/AINA250A4: 2 V/AWide Common-Mode Range: –0.1 V to 36 VSpecified Operating Temperature: –40°C to 125°CPrecision Integrated Shunt Resistor:Shunt Resistor: 2 mΩShunt Resistor Tolerance: 0.1% (Max)15 A Continuous from –40°C to 85°C0°C to 125°C Temperature Coefficient: 10 ppm/°CHigh Accuracy:Gain Error (Shunt and Amplifier): 0.3% (Max)Offset Current: 50 mA (Max, INA250A2)Four Available Gains:INA250A1: 200 mV/AINA250A2: 500 mV/AINA250A3: 800 mV/AINA250A4: 2 V/AWide Common-Mode Range: –0.1 V to 36 VSpecified Operating Temperature: –40°C to 125°C

Description

The INA250 is a voltage-output, current-sensing amplifier family that integrates an internal shunt resistor to enable high-accuracy current measurements at common-mode voltages that can vary from 0 V to 36 V, independent of the supply voltage. The device is a bidirectional, low- or high-side current-shunt monitor that allows an external reference to be used to measure current flowing in both directions through the internal current-sensing resistor sensor. The integration of the precision current-sensing resistor provides calibration equivalent measurement accuracy with ultra-low temperature drift performance and ensures an optimized Kelvin layout for the sensing resistor is always obtained. The INA250 family is available in four output voltage scales: 200 mV/A, 500 mV/A, 800 mV/A, and 2 V/A. This device is fully tested and specified for continuous currents up to 10 amps at the maximum temperature of 125°C. The INA250 operates from a single 2.7-V to 36-V supply and draws a maximum of 300 µA of supply current. All INA250 gain versions are specified over the extended operating temperature range (–40°C to 125°C), and are available in a TSSOP-16 package. The INA250 is a voltage-output, current-sensing amplifier family that integrates an internal shunt resistor to enable high-accuracy current measurements at common-mode voltages that can vary from 0 V to 36 V, independent of the supply voltage. The device is a bidirectional, low- or high-side current-shunt monitor that allows an external reference to be used to measure current flowing in both directions through the internal current-sensing resistor sensor. The integration of the precision current-sensing resistor provides calibration equivalent measurement accuracy with ultra-low temperature drift performance and ensures an optimized Kelvin layout for the sensing resistor is always obtained. The INA250 family is available in four output voltage scales: 200 mV/A, 500 mV/A, 800 mV/A, and 2 V/A. This device is fully tested and specified for continuous currents up to 10 amps at the maximum temperature of 125°C. The INA250 operates from a single 2.7-V to 36-V supply and draws a maximum of 300 µA of supply current. All INA250 gain versions are specified over the extended operating temperature range (–40°C to 125°C), and are available in a TSSOP-16 package.
